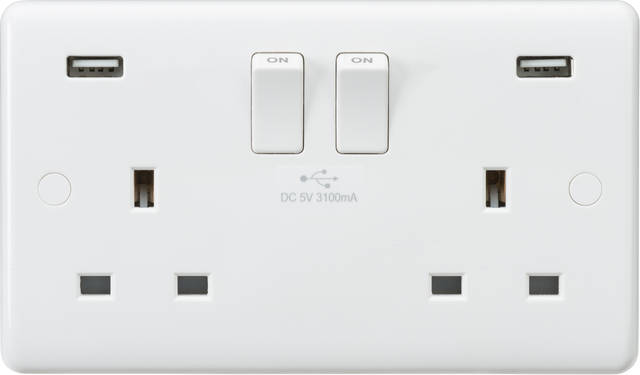

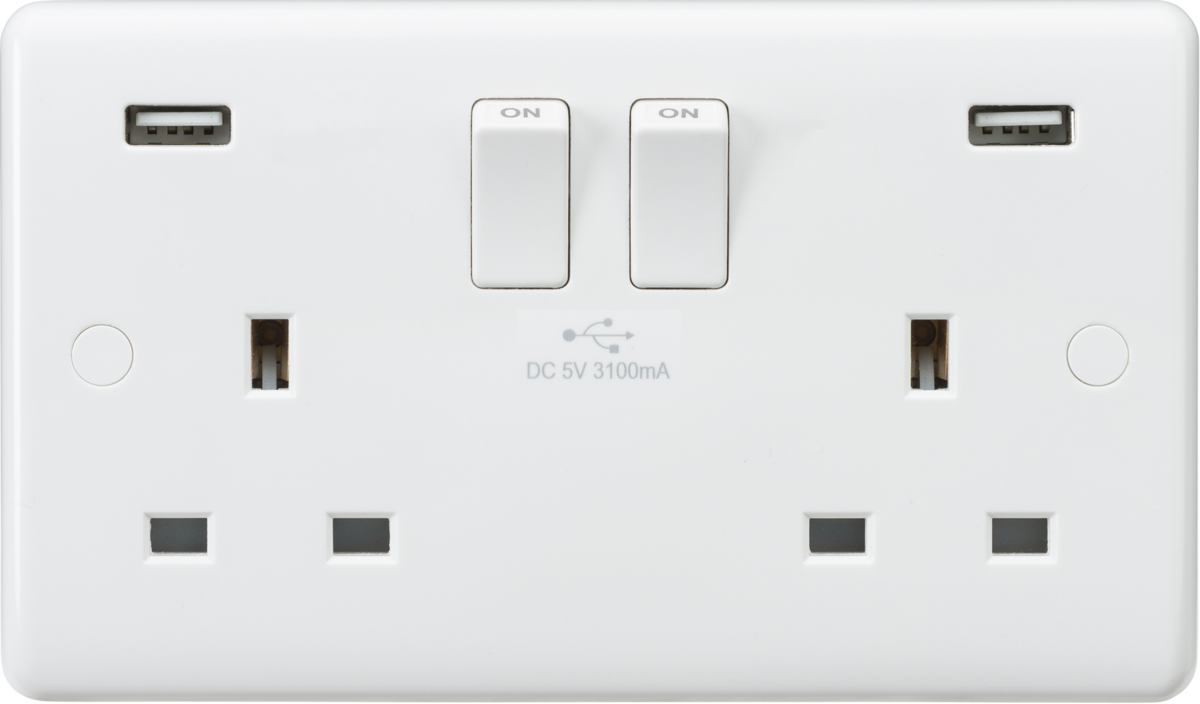

Knightsbridge: CU9904, Dual USB 13A Switched Socket, 2 Gang, White, Curve Edge, 5V DC 3.1A Shared
About this product
This 13A 2G Switched Socket with Dual USB A+A provides a convenient solution for powering devices without occupying traditional sockets.
- Gently contoured 7mm plate with anti-microbial properties
- Built-in Dual USB Charger 5V DC 3.1A (shared)
- Top access to captive terminals speeds up installation
- Certified to BS 1363-2, EN 60950-1
- Min. mounting box depth: 25-35mm depending on wiring conditions
- Packed in individual Knightsbridge rip-top polybag with euro slot
Note: Requires a 35mm deep pattress box if surface mounting (CU1800). Always use certified USB cables for safety and compatibility.
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | White |
|---|---|
| IP Rating | IP20 |
| Construction | Thermoset resin |
| Primary Voltage | 230V 50Hz |

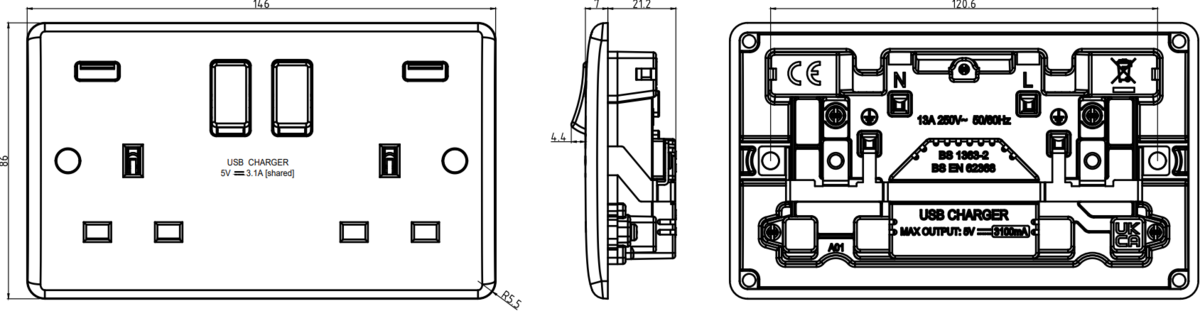

Dimensions
| Width | 146 mm |
|---|---|
| Height | 86 mm |
| Projection | 7 mm |
| Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
Dual USB 13A Switched Socket features
Knightsbridge: CU9904, Dual USB 13A Switched Socket, 2 Gang, White, Curve Edge, 5V DC 3.1A Shared
