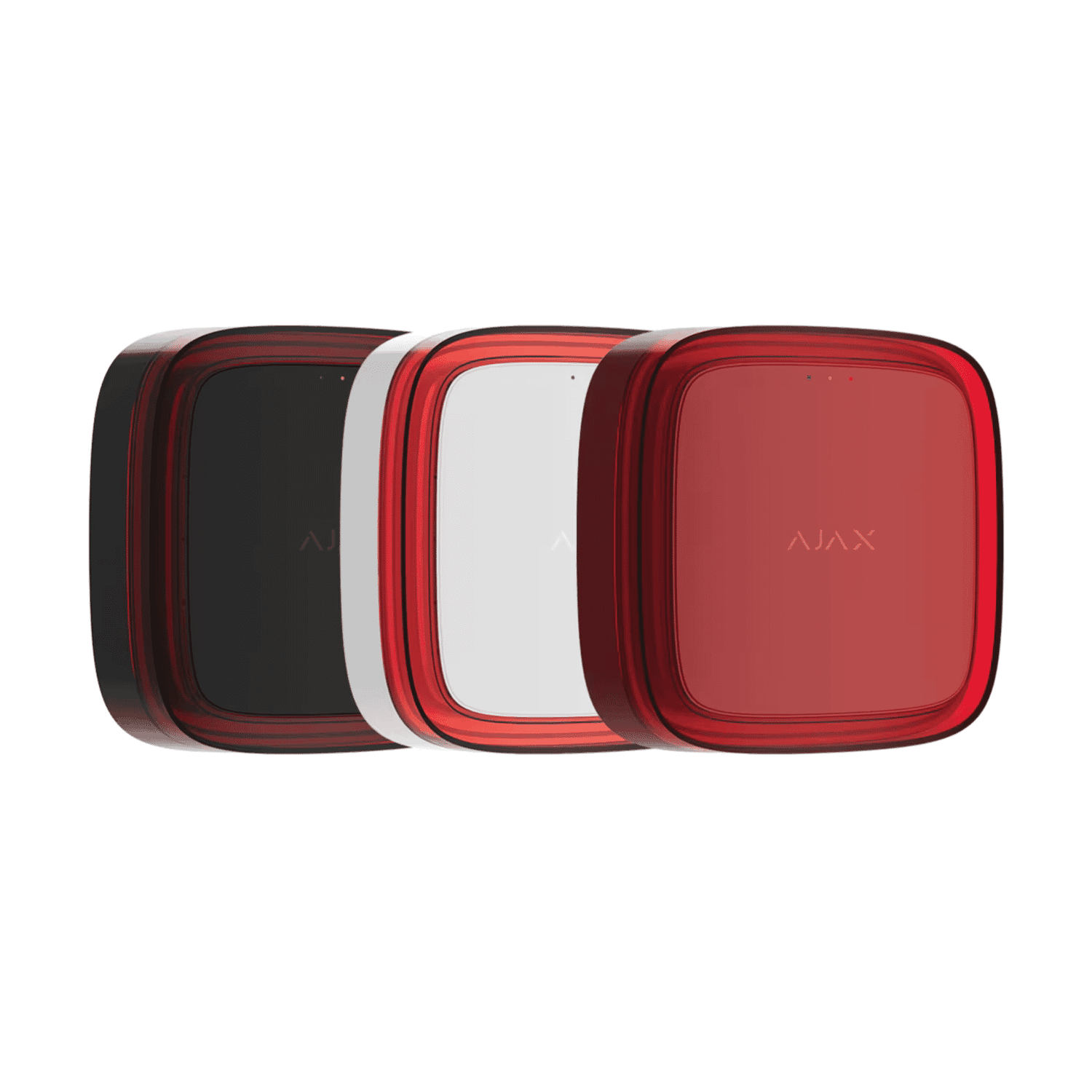

Ajax EN54 FireProtect VAD Jeweller, Wireless Addressable Visual Alarm Device, EN54, 0.5 Hz, 118607.277.RD1

Introduction to the Ajax EN54 FireProtect VAD Jeweller

Ajax EN54 FireProtect VAD Jewelleris a wireless, addressable Visual Alarm Device (VAD) designed for projects that demand EN54 compliance and modern, flexible fire notification. Marketed under SKU 118607.277.RD1, this device combines the convenience of Ajaxs Jeweller radio protocol with EN54‑23 visual alarm certification, offering a synchronized LED strobe that follows the EN54 temporal flash pattern (0.5 Hz / 2 s cycle). Preinstalled, user‑replaceable batteries and the SmartBracket mounting system make installation rapid and secure, while reporting of tamper, low battery and communications status gives integrators the control required for professional installations.

Key features at a glance

• EN54‑23 certified VADproviding a compliant visual alarm output and temporal flash pattern at 0.5 Hz.
• Addressable wireless operationusing the Jeweller protocol for robust communication with Ajax EN54 control/indicating equipment (CIE).
• Synchronized LED framethat can flash in unison with other VADs for clear, consistent notification across a site.
• Preinstalled, user‑replaceable batteries(manufacturer lists CR123A or equivalent) offering multi‑year service life under typical conditions.
• SmartBracket mountsuitable for wall or ceiling mounting with tamper detection for security and compliance.

Detailed specifications and benefits

• Device type: Wireless addressable Visual Alarm Device (VAD).
• SKU: 118607.277.RD1.
• Mounting: SmartBracket for wall or ceiling mounting; tamper detection included.

• Standards: EN54‑23 (part of the EN54 family; EN54‑3 and EN54‑25 referenced).
• Certification: EN54 certified VAD — suitable for systems where EN54 compliance is required.
• Benefit: Using a certified EN54 device simplifies specification and approval for many commercial and public projects, and helps ensure adherence to local fire regulations when installed and commissioned correctly.

• Flash pattern: 0.5 Hz temporal pattern (2 s cycle) as specified by EN54.
• Synchronisation: LED frame is synchronised across devices so visual alarms operate in unison, reducing confusion and improving occupant response.
• Sound output: VAD‑only variants do not include a sounder; combined sounder+VAD variants are available from the FireProtect family (sound level varies by SKU—check the specific model when sound output is required).

• Power supply: Preinstalled batteries (manufacturer lists CR123A or equivalent). Batteries are user‑replaceable.
• Battery life: Manufacturer quotes multi‑year life; typical operational lifetimes can reach up to ~5 years depending on transmission rates, alarm activations and environmental conditions.
• Benefit: Battery‑powered wireless devices avoid trunking and cabling runs, lowering install time and cost in retrofit or difficult environments.

• Protocol: Jeweller wireless protocol, optimised for secure low‑latency communications with Ajax hubs/CIEs.
• Range: Up to approximately 1,700 m in open space; real‑world range varies with building construction and RF environment.
• Frequency: Region‑dependent—verify SKU and regional radio band (e.g., 868 MHz or 915 MHz). The hub/CIE and device must match frequency regions.

• Dimensions: Approximately 145
  145 mm (verify SKU data sheet).
• IP rating: IP54, suitable for many indoor environments where dust and splashes may occur but not for immersion.
• Tamper detection: Built into SmartBracket mounting to alert installers or monitoring systems of unauthorized removal or tampering.
• Operating temperature: Approximately approx. -10 +50 C (verify datasheet).

• Refer to the device datasheet and user manual for detailed installation and commissioning instructions, including region‑specific radio variants and SKU selection.
• Important: Verify regional radio frequency before purchase and installation—Ajax devices are frequency‑specific and must match the CIE/hub frequency.
• Check the FireProtect family SKU to confirm whether you are buying a VAD‑only or sounder+VAD variant and confirm sound levels if audible notification is required.

Use cases and scenarios where the product excels

The Ajax EN54 FireProtect VAD Jeweller is particularly well suited to environments where visual notification is mandatory or where audible alarms alone are insufficient:

• Public buildings and transport hubs:Busy terminals and stations where ambient noise can mask sounders; synchronized visual alarms help ensure wide awareness.
• Retail and commercial spaces:Open floor plans and retrofit projects benefit from wireless installation, reducing disruption and wiring costs.
• Offices and shared workspaces:Visual alarms assist occupants with hearing impairment and support safer evacuation procedures in mixed‑ability workforces.
• Refurbishment and historical buildings:Where running cabling is difficult or restricted, the wireless, battery‑powered design avoids invasive work while retaining EN54 compliance.
• Distributed campuses and multi‑building sites:Jeweller radio range and robust reporting make it practical to deploy addressable VADs across complex sites when paired with the appropriate Ajax CIE/hub and installation planning.

Comparisons with similar products on the market

When evaluating VADs, buyers typically weigh compliance, reliability, installation cost and flexibility. The Ajax EN54 FireProtect VAD Jeweller competes strongly in several of these areas:

• Versus wired EN54 VADs:Wired devices can be less costly per device and do not rely on battery replacement, but they require cabling and associated installation time and cost. Ajaxs wireless VAD reduces installation disruption and is ideal for retrofits where cabling is impractical.
• Versus other wireless VADs:Key differentiators include EN54‑23 certification, synchronized visual output and the established Ajax Jeweller protocol. Compare battery life, reported radio range and EN54 certification status when selecting between wireless manufacturers.
• When sound is also required:If an integrated sounder is mandatory, select the sounder+VAD variants from the FireProtect family or pair the VAD with compatible audible devices. Ensure the chosen SKU explicitly meets required sound levels and certifications for your jurisdiction.

Customer testimonials and installer feedback

Public, verified customer reviews for this exact SKU may be limited due to the specialist nature of EN54 certified equipment. Below are representative installer and specifier impressions based on typical field experience with Ajax EN54 devices and wireless VADs. These are illustrative feedback themes rather than direct quotes from named customers:

• "Installation time was significantly reduced compared with running new fire alarm cabling; the SmartBracket made mounting straightforward and tamper reporting reassured our compliance team."
• "The synchronized strobe pattern provided consistent visual cues across multiple floors — useful in complex building layouts."
• "Battery life has been acceptable in pilot deployments; however, as with any battery‑powered device, we schedule regular maintenance checks and battery replacements per site policy."
• "Be careful to order the correct regional radio SKU; we learned the hard way that hub and device frequency must match."

Conclusion: Why choose the Ajax EN54 FireProtect VAD Jeweller?

The Ajax EN54 FireProtect VAD Jeweller (SKU 118607.277.RD1) is a compelling choice for projects that require EN54‑compliant visual alarm notification combined with the flexibility of wireless, addressable devices. Its EN54‑23 certification, synchronized 0.5 Hz temporal flash, and the convenience of preinstalled, user‑replaceable batteries make it suitable for public buildings, retail, offices and refurbishment projects where visual alarms are essential.

While wired solutions still have advantages in some large new‑build installations, the Ajax VAD shines in retrofit scenarios, complex sites and where rapid deployment matters. Prioritize checking the region‑specific radio frequency, the exact FireProtect variant (VAD‑only vs sounder+VAD), and the manufacturer documentation when specifying this device. Warranty information should be confirmed with your supplier or manufacturer, and installers should follow the datasheet and local fire regulations during commissioning.

Pricing guidance: cost price listed at cost price : 92.88; suggested price: 179.99. Confirm current pricing and availability with your distributor.

In summary: choose the Ajax EN54 FireProtect VAD Jeweller when you need certified visual alarm performance combined with the speed, flexibility and reporting advantages of a modern wireless addressable system. For full technical details and installation guidance consult the official datasheet and user manual from the manufacturer before specifying or installing.
