Introduction to Armoured Cat5e Outdoor Network Cable

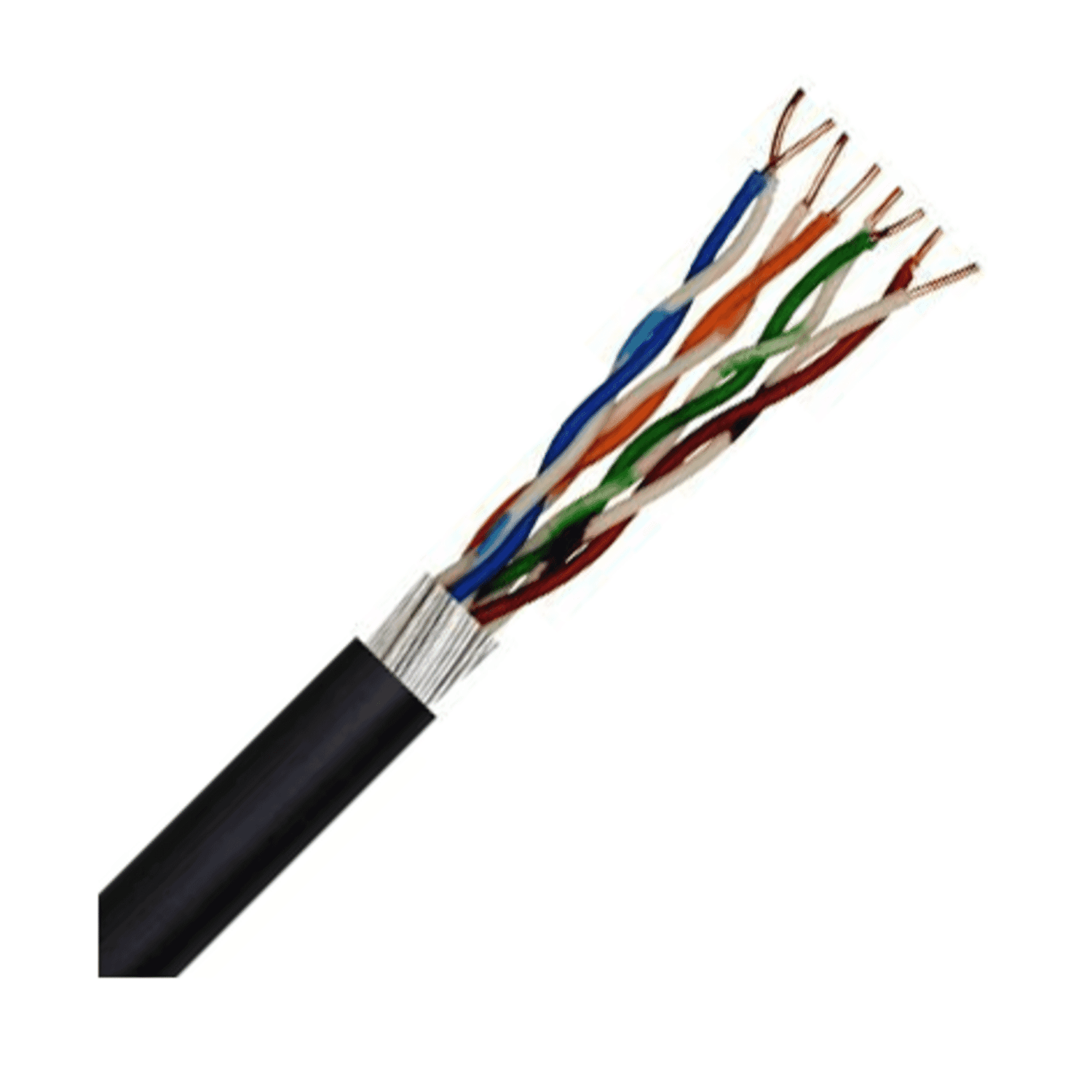

Armoured Cat5e Outdoor Network Cable (SFX/C5-UTP-SWA-PE-BLK)is a purpose-built, heavy-duty Ethernet cable designed for outdoor LAN and CCTV installations where mechanical protection is required. Supplied on 100m drums or cut to length, this 4-pair unscreened twisted pair (UTP) cable combines Cat5e performance with a steel wire armour (SWA) and a UV-resistant black PE outer jacket. It is engineered to withstand harsh external environments while providing reliable data and Power over Ethernet (PoE) support within Cat5e limits.
Key features at a glance
- Category: Cat5e (100 MHz) — suitable for typical 100 Mbps Ethernet runs up to about 90 m.
- 4-pair UTP with solid bare copper conductors for stable signal transmission.
- Steel Wire Armour (SWA) for abrasion, puncture and rodent protection — suitable for ducting and direct burial where armour is specified.
- Black PE outer jacket (UV resistant) with a grey PVC inner jacket and a nylon rip-cord for easy stripping.
- CPR Reaction-to-fire: Fca and an operating temperature range of −20°C to +80°C.
- Available as 100m drums or cut-to-length per metre supply for flexible deployment.
Detailed product specifications and benefits
Understanding the technical build of the SFX/C5-UTP-SWA-PE-BLK cable helps explain where and why it’s useful. The cable is Cat5e-rated, which means it meets the electrical performance standards up to 100 MHz and is suitable for 100 Mbps Ethernet and many CCTV/networking applications. The 4-pair unscreened twisted pair construction uses solid bare copper conductors with HDPE insulation — a common and reliable combination that reduces attenuation and maintains stable impedance over typical run lengths.
- Solid bare copper conductors (0.47 ± 0.02 mm): provide good conductivity and mechanical rigidity for stable terminations.
- HDPE insulation (0.24 mm thickness): durable dielectric around each conductor that maintains signal integrity.
- Grey PVC inner jacket and white nylon rip-cord: simplify termination and stripping while protecting the core during handling.
- Steel Wire Armour (SWA): the standout mechanical protection layer — protects against crushing, impact, abrasion and rodent attack. SWA makes the cable suitable for direct burial in environments where mechanical damage is a concern and for duct runs where additional protection is required.
- Black PE outer jacket (UV resistant): resists sunlight degradation and is rated for prolonged outdoor exposure.
- Performance: Cat5e up to 100 MHz (typical practical runs 90–100 m).
- Max DC resistance: < 102.40 Ω/km @ 20°C — helps ensure consistent PoE performance within Cat5e power limits.
- Operating temperature range: −20°C to +80°C — suitable for many outdoor climates.
- CPR classification: Fca — relevant when projects require a specific reaction-to-fire classification for installed cables.
- Supplied on 100m drums or cut-to-length to reduce waste and simplify ordering for short runs.
- Nylon rip-cord aids quick and safe jacket removal for field terminations.
- Where the armour is used, installers should follow good practice for earthing/grounding of the armour and protect terminations to prevent moisture ingress.
Use cases and scenarios where this cable excels
The armoured Cat5e cable is tailored for installations where exposure to mechanical damage or harsh environmental conditions is likely. Typical scenarios include:
For short to medium-length outdoor runs between buildings, telecom points or perimeter network devices, this cable provides the robustness needed in ducted or direct-buried installations where additional mechanical protection is mandated.
Many CCTV deployments require cable runs across rooftops, along walls or buried in shallow trenches. The steel wire armour reduces the risk of physical damage and provides a degree of animal resistance. It supports PoE within Cat5e limits, allowing cameras to receive power and data over the same cable where appropriate.
Sites with heavy foot or vehicle traffic, construction areas, or locations with increased abrasion potential benefit from the SWA layer. The PE jacket and extended temperature rating make the cable suitable for many outdoor industrial contexts.
When cables are run through shared ducts, conduits or long external trays where other trades operate nearby, mechanical protection can prevent accidental damage during other works or maintenance.
Comparisons with similar products in the market
When choosing an outdoor network cable, consider three main alternatives: non-armoured outdoor Cat5e/Cat6, armoured Cat6 or higher-category armoured cables, and outdoor fibre. Each has trade-offs:
- Armoured Cat5e: superior mechanical protection due to SWA, recommended where burial, ducting or physical damage is a concern. Slightly heavier and less flexible, requiring more careful handling at terminations and entry points.
- Non-armoured outdoor Cat5e: lighter, cheaper and easier to terminate, but vulnerable to crushing, rodent damage and abrasion. Better suited for protected ducts, skyway trays or internal-external transition runs where mechanical hazards are low.
- Armoured Cat6: higher bandwidth and improved performance (up to 250–500 MHz depending on standard), better suited for gigabit Ethernet over longer shielded runs. Typically thicker and more expensive. If future-proofing for 1 Gbps or higher over long distances is a priority, armoured Cat6 may be a better choice.
- Armoured Cat5e: cost-effective for 100 Mbps applications and many CCTV systems; lighter on budget and sufficient for many legacy or lower-bandwidth use cases.
- Outdoor fibre: vastly higher bandwidth and longer runs without repeaters, immune to electromagnetic interference (EMI) and ideal for backbone links between buildings. Requires optical transceivers and sometimes more careful handling and splicing equipment.
- Armoured copper (this product): simpler to integrate with existing copper networking gear, supports PoE without extra hardware, typically lower upfront equipment cost. Better where power-over-data is needed or where fiber installation is impractical.
Choice depends on bandwidth requirements, budget, distance and the need for PoE. For many CCTV and shorter outdoor LAN runs needing robust mechanical protection, armoured Cat5e is an excellent, cost-effective option.
Customer feedback and testimonials
There are no specific customer testimonials provided for the SFX/C5-UTP-SWA-PE-BLK in the supplied product data. Based on typical feedback for similar armoured outdoor Cat5e cables, installers and system integrators commonly highlight:
- Reliability on sites with heavy mechanical risk — fewer cable failures due to crushing or rodent damage.
- Good value for money compared with armoured Cat6 or fibre in lower-bandwidth CCTV and access-control applications.
- Ease of use when supplied on drums or cut-to-length, reducing waste and simplifying logistics.
- Practical considerations: slightly more effort required at termination points to manage the armour and ensure proper grounding and sealing against moisture.
If you require real-world reviews for procurement decisions, ask vendors for installations references or sample installations, or request field reports from partners who have used the product.
Installation tips and compliance notes
- Follow local UK installation regulations and best practice for outdoor and underground cabling — check burying depth, conduit/ducting requirements and armour earthing recommendations.
- Seal all outdoor terminations and transition points to avoid moisture ingress. Where the SWA is terminated, ensure correct grounding/earthing according to the site’s earthing scheme.
- For direct burial installs, confirm that the SWA specification and overall jacket meet project requirements; use protective grommets and gland fittings at entry points.
- Confirm CPR class Fca for your project — if a different fire performance is mandated, select a cable with the required classification.
Conclusion: why this product is a great choice
The Armoured Cat5e Outdoor Network Cable SFX/C5-UTP-SWA-PE-BLK is a practical and robust solution for outdoor Ethernet and CCTV cabling where mechanical protection is a priority. Its combination of Cat5e electrical performance, solid copper conductors, HDPE insulation and a steel wire armour layer makes it well-suited to ducting, direct burial (where SWA is specified), and exposed runs that might encounter abrasion, crushing or rodent activity.
While not a replacement for higher-category armoured cables or fibre where greater bandwidth or longer distances are required, this cable represents a cost-effective balance of durability, ease of integration and support for PoE in many real-world installations. Supplied on 100m drums or cut-to-length, it also supports efficient deployment and inventory management.
If your project requires mechanically protected outdoor copper cabling for LAN, CCTV or security networks and you need a reliable, budget-conscious option, the SFX/C5-UTP-SWA-PE-BLK is a strong candidate. As always, ensure installations are performed or overseen by qualified personnel and check project specifications for CPR/fire rating and earthing requirements before installation.
