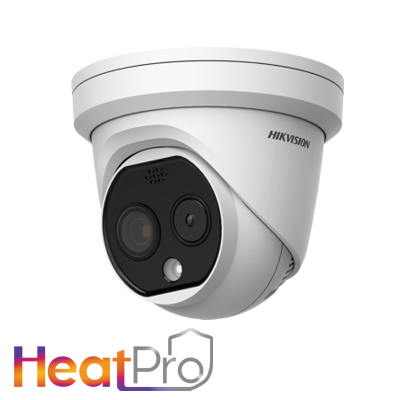

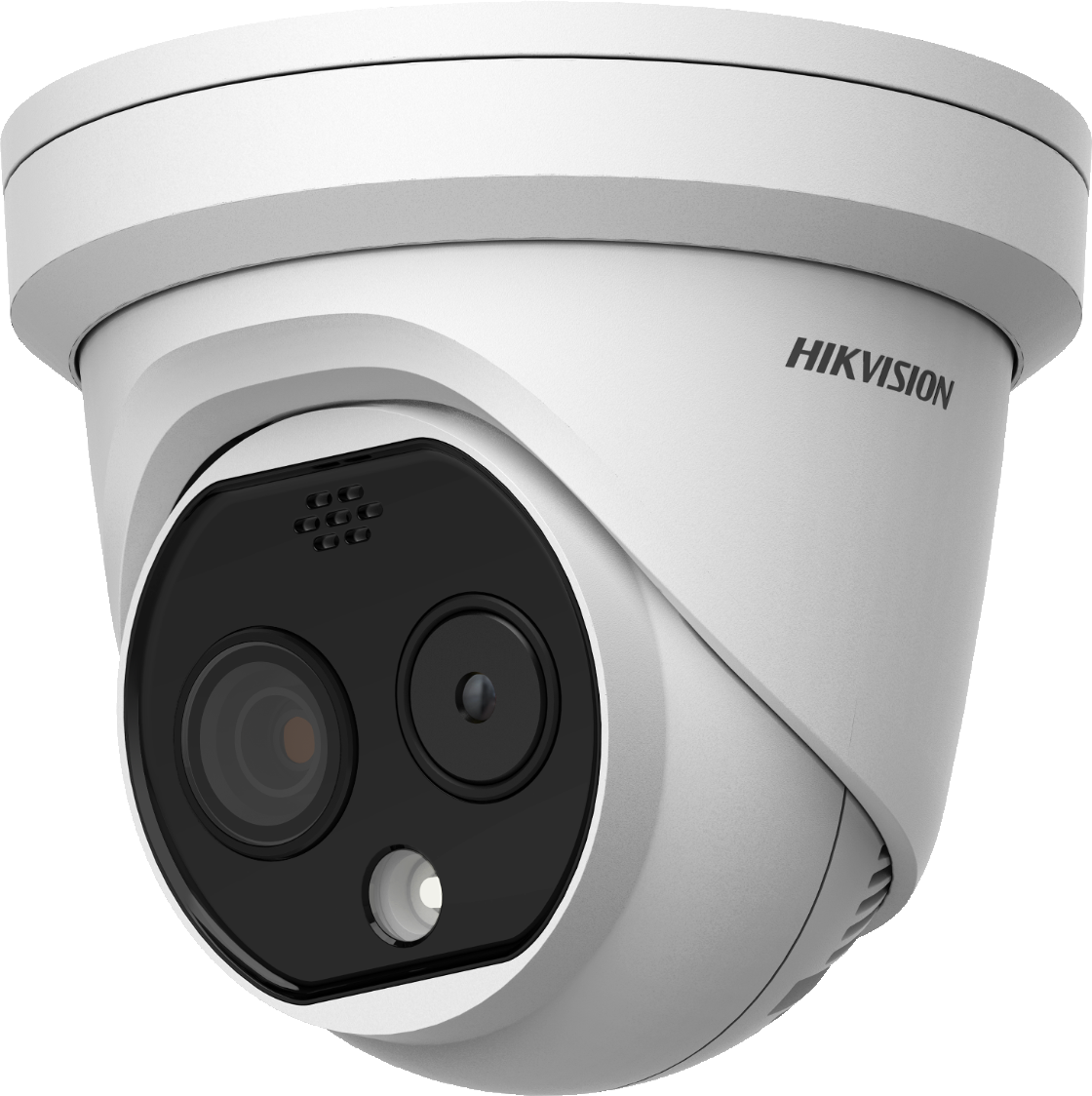

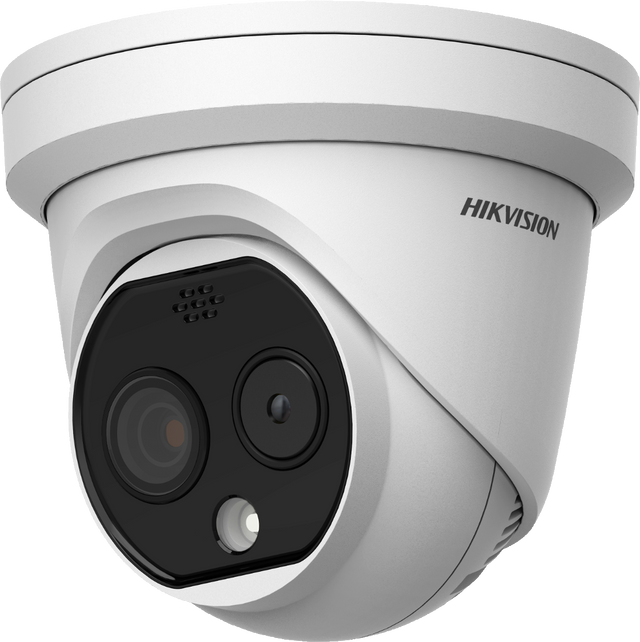

Hikvision DS-2TD1228-2/QA Thermal Turret Camera
The Hikvision DS-2TD1228-2/QA is a cutting-edge thermal and optical bi-spectrum network turret camera designed to enhance security through advanced video analysis and early fire prevention capabilities. Ideal for various environments including villas, parking lots, and manufacturing areas, this camera ensures high precision with real-time alarms.
- Resolution: 256 × 192, 12μm, with NETD < 40 mK.
- Intelligent Detection: Supports vehicle and human classification.
- Temperature Monitoring: Detects temperatures from -20°C to 150°C, with an accuracy of ±8°C.
- Durable Design: IP66 rating for extreme environmental conditions.
- Warranty: 10 years guarantee on high-quality detector.
This camera is perfect for both domestic and commercial applications, providing peace of mind with its robust features and reliable performance.
Specifications
General-information
Video-features
Specifications
Lens | 2.1mm |
---|---|
Power Supply | 12V DC & PoE (802.3af) |
IP Rating | IP66 |
Max Resolution | 2688 x 1520 |
Field of View | 90° x 65.4° (H x V) |
Camera Model | DS-2TD1228-2/QA |
Colour | White |
Technology | Thermal |
Style | Turret |
General-information
Shipping Weight | 940 g |
---|---|
Operating Temperature Range | -40°C to 65°C |
Video-features
Main Stream Frame Rate | up to 25 fps |
---|---|
Sub-stream Frame Rate | up to 30 fps |
Hikvision DS-2TD1228-2/QA Thermal Turret Camera features

Hikvision Thermal Network Turret Camera, 2.1mm Lens, Bi-Spectrum, 256x192 Resolution, 12μm, DS-2TD1228-2/QA
