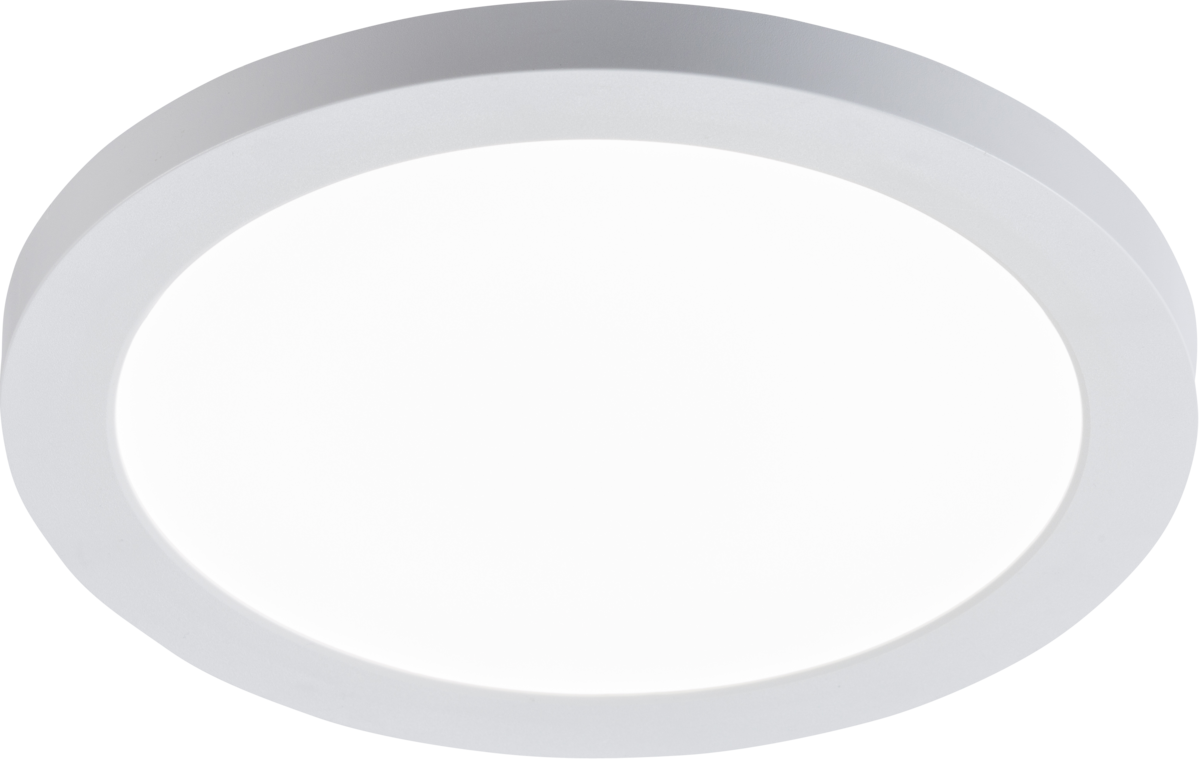

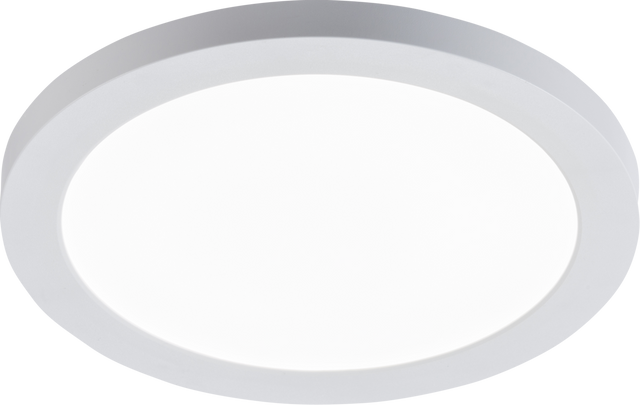

230V 18W CCT Adj Circular LED Panel
Introducing the 230V 18W CCT Adjustable Circular LED Panel - 217mm
This innovative dual mounting LED panel is our most versatile luminaire, suitable for both recessed and surface mounting. Here are some of the key features:
- Adjustable recessed brackets for cut-outs between 55mm to 175mm.
- Ideal replacement for recessed traditional CFL/Fluorescent downlights.
- Optional magnetic bezels available for custom looks.
- Three colour temperature options: 3000K, 4000K, and 6000K with corresponding brightness.
- Low flicker for healthy lighting.
Perfect for domestic, commercial, and retail areas.
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Cable Length | 0.3 m |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

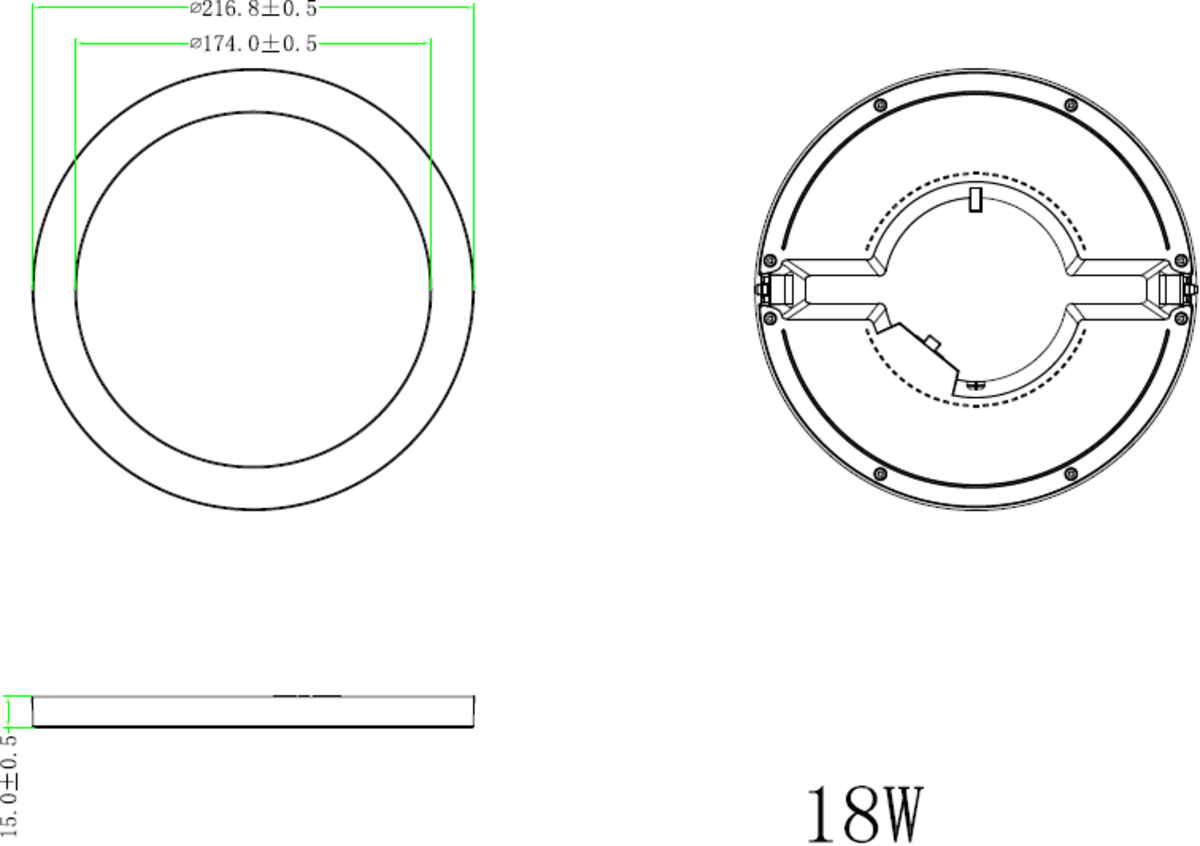

Dimensions
Height | 15 mm |
---|---|
Diameter | 217 mm |
Projection | 15 mm |
Minimum Void | 50 mm |
Recessed Depth | 0 mm |
Cut-out Diameter | 55 mm |
Lamp
L70B50 | 30,000 |
---|---|
Dimmable | No |
Beam Angle | 120 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 3000/4000/6000 K |
---|---|
CRI | >85 |
Lumens | 1300/1400/1360 lm |
Wattage | 18 |
Light Colour | CCT |
Efficacy (Light source) | 130 lm/W |
Lumens (Light source only) | 2345 lm |
230V 18W CCT Adj Circular LED Panel features

18W CCT Adjustable Circular LED Panel, 217mm, Dual Mounting, 3000K/4000K/6000K, White Finish, 230V 50Hz, CPL18CT
