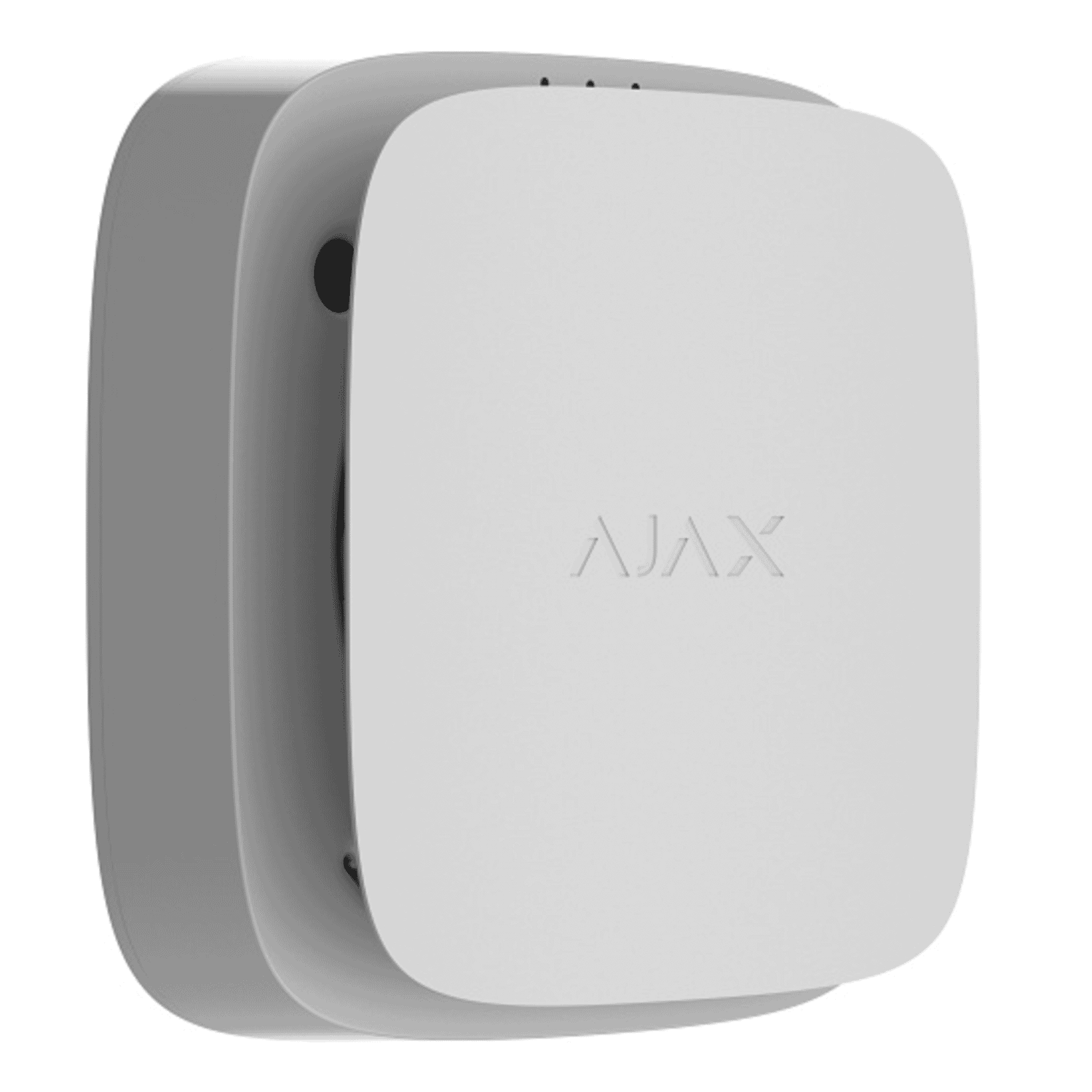

Ajax EN54 FireProtect Smoke Detector (Jeweller) 119921.275.WH1

Introduction to Ajax EN54 FireProtect Smoke Detector (Jeweller) — 119921.275.WH1

Ajax EN54 FireProtect (Smoke) Jeweller — 119921.275.WH1is a wireless, addressable point smoke detector designed to meet EN54 requirements for monitored fire detection systems. Built for installers and system integrators who need EN54-certified wireless detectors, this unit combines dual-spectrum optical sensing, the HazeFlow 2 algorithm for false-alarm suppression, and Ajaxs Jeweller two-way encrypted radio protocol for secure reporting and device addressability. With two pre-installed CR123A batteries and an open-space radio range of up to ~1,700 m (environment dependent), it offers a practical wireless option where cabling, aesthetics, or retrofit constraints make wired EN54 devices impractical.

Key features at a glance

• EN54 family certification (EN54-7/EN54-25 where applicable) for compliance in regions that accept EN54.
• Dual-spectrum optical sensor (blue + infrared LEDs) with a protected chamber to improve detection performance and reduce nuisance alarms.
• HazeFlow 2 algorithm for minimizing false activations from steam, dust and contamination.
• Jeweller two-way encrypted wireless communication for secure device reporting and addressability.
• Long battery life from 2 × CR123A (pre-installed), typically 5–6 years depending on polling settings.
• SmartBracket mounting with optional locking and tamper detection for secure installation.

Detailed specifications and benefits

The detector uses a dual-spectrum optical chamber pairing blue and infrared LEDs to detect a wide range of smoldering and flaming particle signatures. The chamber is designed to resist contamination from dust and insects and, when combined with Ajaxs HazeFlow 2 algorithm, substantially reduces false alarms caused by non-fire phenomena such as steam from showers, cooking vapors, or environmental dust. For monitored systems, this increases reliability and reduces unnecessary service calls.

As part of the EN54 family (notably EN54-7 and EN54-25), the device is intended for use in installations that require European EN54 certification. This makes it appropriate for commercial, residential and mixed-use projects in jurisdictions recognising EN54 standards. Installers should verify local regulatory acceptance and ensure the chosen variant meets regional certification and frequency requirements before specifying for a project.

Communications are handled by the Jeweller two-way encrypted radio protocol. Jeweller supports secure, low-latency status reporting and remote supervision, and allows each detector to be individually addressed in a monitored EN54 system. Open-space radio range is stated at up to ~1,700 m, though walls, building materials and local interference will reduce practical range. It is crucial to match the devices RF frequency to the hub/CIE and region (EU units typically 868 MHz, US variants 915 MHz).

The detector is powered by 2 × CR123A batteries, pre-installed for convenience. Typical battery life is 5 6 years depending on Jeweller polling settings and alarm activity. This long lifetime reduces maintenance visits and total cost of ownership in monitored installations.

SmartBracket mounting simplifies fit-and-forget installation and includes an option to lock the base for tamper prevention. The unit includes LED status indications to confirm normal operation, alarm conditions and fault states. Tamper detection signals are reported to the panel/hub so administrators can be alerted to unauthorised access to the device base.

• Approximate dimensions: 124 × 124 × 54.2 mm; weight: ~281 g.
• Intended for indoor use; refer to the manufacturers manual for operating temperature and humidity limits.
• Smoke-only variant: this SKU (119921.275.WH1) is a smoke detector without an internal sounder. Sounder or VAD variants exist in the family and carry different certification/performance details.

Use cases and scenarios where the Ajax EN54 FireProtect excels

In buildings where running new wiring is expensive, disruptive or prohibited (e.g., heritage sites, finished interiors, rented spaces), a wireless EN54 device offers clear advantages. The Ajax EN54 FireProtect provides addressable EN54-compliant detection without the need for cabling back to a loop-powered control panel, reducing installation time and preserving architectural finishes.

For offices, small retail units, serviced apartments or multi-tenant buildings requiring monitored fire detection, the devices addressability and supervised two-way communications mean it can be integrated into a larger EN54-compliant CIE or hub. Its long battery life reduces ongoing maintenance across numerous devices.

Where temporary monitoring is needed (construction site welfare units, temporary offices) or where a phased rollout is planned, wireless addressable detectors allow systems to be expanded or relocated without reworking fire-detection wiring. The Ajax units simple pairing via QR/device ID and SmartBracket mounting speeds deployment.

Locations prone to steam or dust can challenge conventional optical detectors. The dual-spectrum sensor and HazeFlow 2 algorithm are specifically designed to distinguish real smoke from benign particulates, lowering the risk of nuisance activations in kitchens, laundry areas (when permitted by code), and certain industrial spaces.

Comparisons with similar products on the market

When evaluating the Ajax EN54 FireProtect against other options, consider three broad categories: traditional wired EN54 detectors, other wireless EN54-capable detectors, and combined/multi-sensor devices.

Traditional wired detectors are powered and supervised via a fire alarm loop and are often the default for large, high-risk installations. Wired solutions provide continuous power and can be perceived as inherently more tamper-resistant due to fixed wiring. However, they require cabling infrastructure and more invasive installation. The Ajax wireless solution trades the permanence of wiring for installation flexibility, lower retrofit cost and faster deployment while maintaining EN54 compliance where required.

Other manufacturers offer wireless EN54 devices with varying approaches to radio protocol, battery life and false-alarm mitigation. Key differentiators for the Ajax EN54 FireProtect are the Jeweller encrypted two-way protocol for supervision and low-latency reporting, the dual-spectrum optical sensor combined with HazeFlow 2 to reduce nuisance alarms, and long battery life with CR123A cells. When comparing products, check regional frequency variants, EN54 sub-standard coverage, pairing workflows, and long-term maintenance costs.

Some detectors combine smoke and heat or include built-in sounders/visual alarm devices (VADs). The 119921.275.WH1 is a smoke-only detector; projects requiring local audible notification should consider sounder variants or separate sounders to meet local code. Multi-sensor devices may offer improved detection in some scenarios (e.g., fast-flaming vs. smoldering fires) but can add complexity and cost. Choose the device type that best matches the hazard assessment and code requirements.

Installer and customer feedback (typical reviews)

While specific customer testimonials for this SKU may vary by region and installer, common points reported by system integrators and users of Ajax EN54 detectors include:

• Ease of installation: pairing via QR/device ID and SmartBracket mounting reduces time on site compared with running cable to a loop panel.
• Reliable wireless supervision: integrators appreciate Jewellers two-way monitoring and the visible LED indicators for status confirmation during commissioning.
• False-alarm reduction: the HazeFlow 2 algorithm and protected chamber are frequently cited as helpful in reducing nuisance alarms in marginal environments.
• Long battery life: the use of CR123A cells and multi-year battery life lowers maintenance burden for campus or multi-device deployments.

If you require formal testimonials or install case studies, ask your Ajax distributor or system integrator for references specific to your industry or region.

Important considerations and installation notes

• Verify the RF frequency and SKU region before purchase to ensure compatibility with the hub/CIE and local regulations (EU vs US frequency variants are not interchangeable).
• Confirm local acceptance of EN54 certification and check which EN54 sub-standards apply to your installation (EN54-7, EN54-25, etc.).
• This smoke-only variant has no internal sounder; if local code requires local alarm signalling, specify a sounder-equipped variant or an external sounder/alerting device.
• Follow the manufacturers manual and local fire code when selecting detector locations and configuring the monitored system.
• Warranty information for this SKU is not included in this listing; confirm warranty and support terms with your supplier.

Conclusion: why choose the Ajax EN54 FireProtect Smoke Detector (Jeweller) — 119921.275.WH1

The Ajax EN54 FireProtect (Smoke) Jeweller 119921.275.WH1 is a thoughtfully engineered option for projects needing EN54-compliant wireless smoke detection. It balances the regulatory confidence of EN54 certification with the practical advantages of wireless installation: faster deployment, reduced disruption, and flexible siting. Dual-spectrum optical detection and the HazeFlow 2 algorithm address nuisance alarms, while Jewellers two-way encrypted communications deliver secure, supervised reporting suitable for monitored systems. Long battery life and tamper-protecting SmartBracket mounting further reduce operational overheads.

For installers and integrators seeking an addressable EN54 smoke detector for retrofit, phased, or aesthetic-sensitive projects, the Ajax EN54 FireProtect offers a competitive, reliable solution. Always confirm SKU frequency, hub compatibility, and local regulatory acceptance when specifying this unit. Suggested retail pricing for this model is 129.00 (confirm local pricing and availability with your supplier), and detailed technical data and installation instructions are available in the manufacturers datasheet and manual.
