Product Overview & Key Benefits

The UX Series Compact 100V Mixer-Amplifiers are high-performance, compact audio solutions designed for a variety of settings. Whether you are setting up a public address system in a medium-sized area or integrating with a larger sound system, these mixer-amplifiers provide superior versatility and sound quality. Their robust design allows for easy installation and operation, making them perfect for businesses, event spaces, and speakers who require reliable audio solutions.

Technical Specifications & Product Details

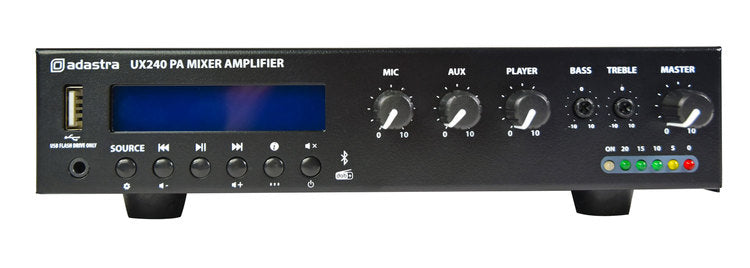

• Model:UX Series Compact 100V Mixer-Amplifiers
• Supplier SKU:953.015UK
• Power Output:240W RMS
• Dimensions:350mm (W) x 210mm (D) x 54mm (H)
• Weight:4.32kg
• Power Supply:170-264Vac, 50Hz (IEC)

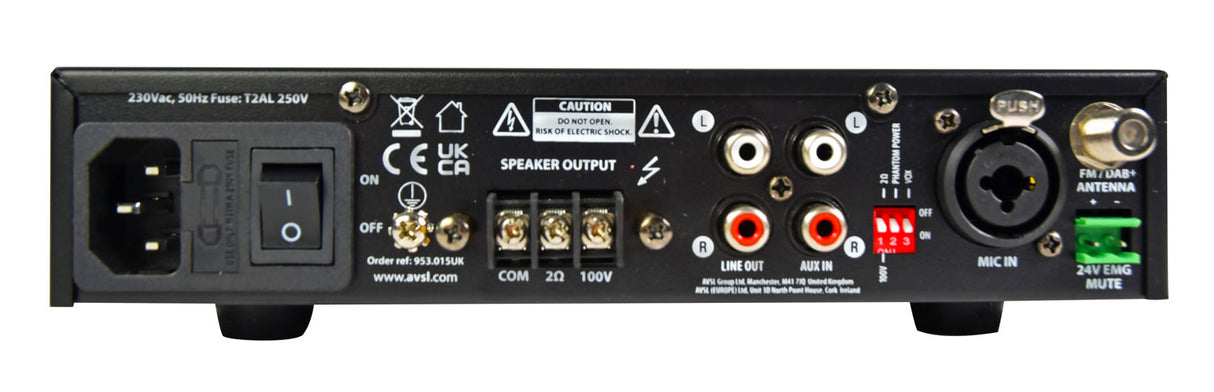

• Inputs:1 x Microphone (jack/XLR), 1 x Line (2 x RCA), 1 x Aux (3.5mm)
• Output Connections:2 x RCA (mono) for line output
• Speaker Outputs:Screw terminals - 100V / 2 Ohms / Com
• Bluetooth Version:5.0
• Audio Sources:Internal USB/DAB+/FM/BT player
• Input Impedance:1k Ohms (mic/line)
• EQ Controls:Bass and Treble rotary controls
• Mute Function:24V relay contacts
• Construction Type:Class D amplifier with transformer output

Ideal Uses & Applications

The UX Series Compact 100V Mixer-Amplifiers are designed with flexibility in mind, catering to various settings:

• Domestic DIY:Perfect for home audio installations, ensuring high-quality sound playback for personal events or gatherings.
• Commercial Buildings:Ideal for shops, shopping centres, and retail environments where clear audio announcements promote products or events.
• Hospitality Settings:Perfect for bars, restaurants, and hotels where music and announcements enhance the customer experience.
• Offices:Suitable for conference rooms and meeting areas, facilitating clear communication during presentations and discussions.

Energy Efficiency & Cost Savings

With the UK’s focus shifting towards eco-friendliness, the UX Series Compact 100V Mixer-Amplifiers are not just powerful but also energy-efficient. As a Class D amplifier, they consume less energy while still delivering high performance. This efficiency can translate to cost savings on electricity bills, making them an environmentally and financially-wise choice for businesses and residential users alike. You may observe significant reductions in energy usage, helping to lower your carbon footprint.
