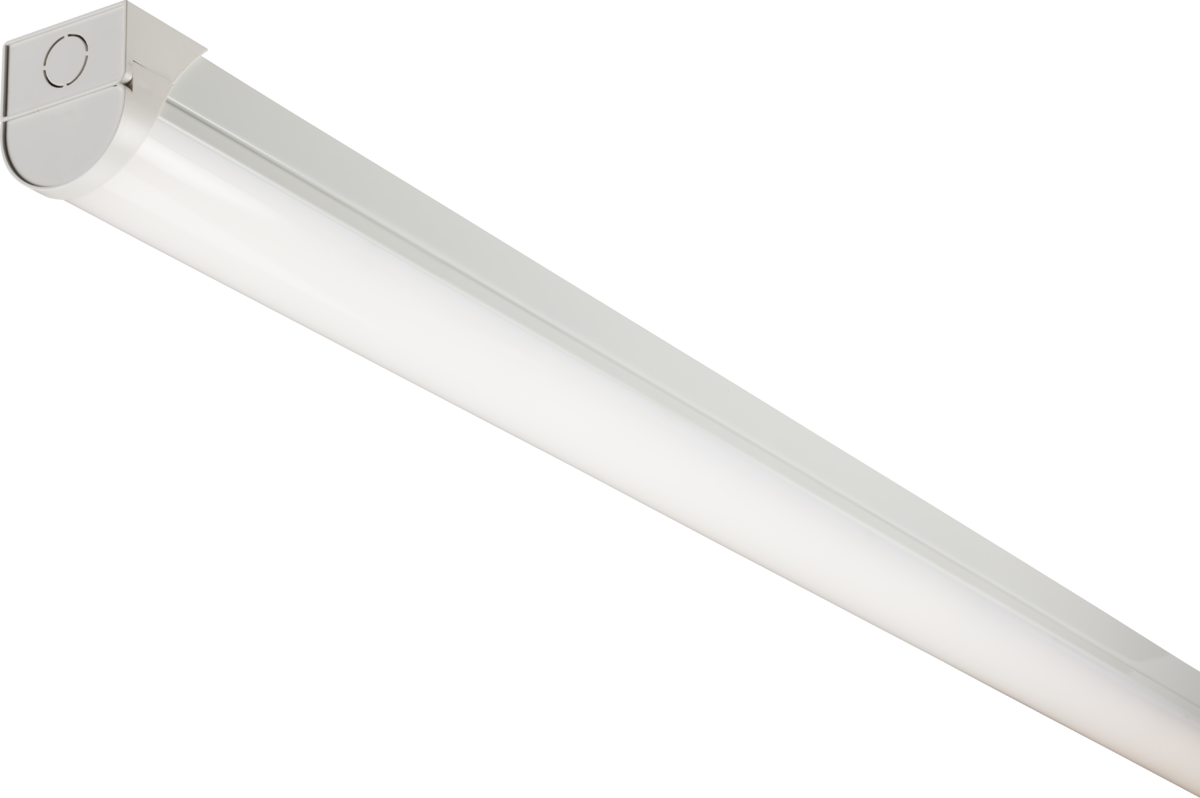

Knightsbridge: BATS2, 230V 2ft 12W LED Batten, Energy Efficient, IP20, Cool White Light, 4000K, 1315 lm
About this product
Introducing our 230V 2ft 12W LED Batten - 4000K, a high-efficiency lighting solution designed to replace conventional fluorescent fixtures.
- Constructed from durable steel and polycarbonate.
- Rear and end conduit fixings for easy installation.
- BESA box compatible.
- Hinged gear tray for simplified access.
- Push fit loop in loop out connectors for hassle-free installation.
With an efficacy of 140.13 lm/W and a luminous output of 1315 lm, this LED batten is perfect for commercial lighting setups.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
| Class | I |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Construction | Pressed steel |
| Construction 2 | & polycarbonate |
| Primary Voltage | 230V 50Hz |
Dimensions
| Width | 61 mm |
|---|---|
| Length | 615 mm |
| Projection | 71 mm |
Lamp
| L70B50 | 50,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 145 |
| Lamp Included | Yes |
| Lamp Technology | LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Diffuser | Opal |
|---|
Photometric
| CCT | 4000 K |
|---|---|
| CRI | >80 |
| Lumens | 1315 lm |
| Wattage | 12 |
| Light Colour | Cool White |
| Photometric IES | BATS2.IES |
| Photometric LDT | BATS2.LDT |
| Efficacy (Light source) | 140.13 lm/W |
| Lumens (Light source only) | 1615 lm |
2ft 12W LED Batten - 4000K features
