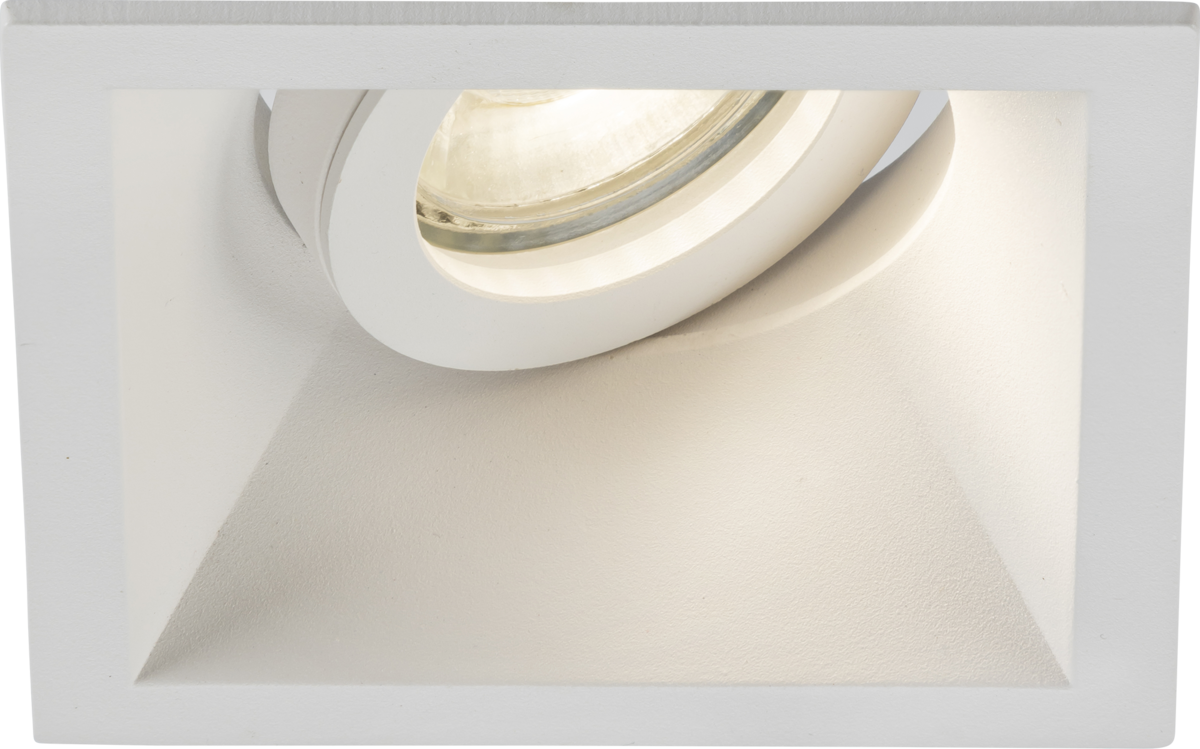

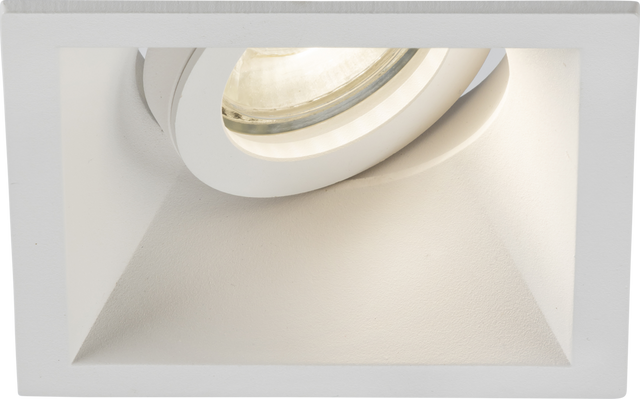

Dipa Tilt Square Downlight (White)
The Dipa Single Tilt Square Anti-Glare Downlight is designed for various applications, including residential, commercial, and hospitality environments that require low glare lighting.
- Choice of white or black finish.
- Unique anti-glare design for subtle lighting.
- Available in fixed and tilt options.
- Rapid lamp installation with drop-down lamp holder.
- Quick and easy tool-free cable termination for installation.
- Compatible with a range of Knightsbridge fire hoods.*
For a streamlined installation, the Dipa downlight integrates with Knightsbridge GU10 light sources, which offer dimmable and SmartKnight options, ensuring versatile lighting control across various settings. Each downlight is packaged in FSC approved materials.
*Please check size and specific fire rating compliance with relevant technical data.
Specifications
Dimensions
Lamp
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |

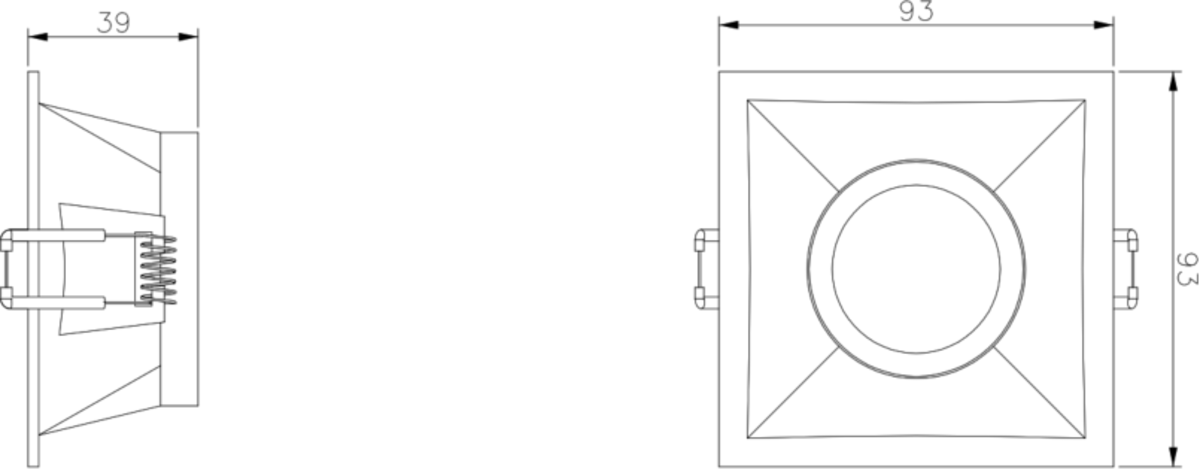

Dimensions
Tilt | 25 ° |
---|---|
Width | 93 mm |
Length | 93 mm |
Projection | 3 mm |
Minimum Void | 130 mm |
Recessed Depth | 39 mm |
Cut-out Box W/H/D | 80x80 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | GU10 |
Max. Wattage | 10 W |
Lamp Included | No |
Dipa Tilt Square Downlight (White) features

Dipa Single Tilt Square Anti-Glare Downlight, Dimmable GU10, 10W, 230V, White Finish, Tool-Free Installation, DIB1TSW
