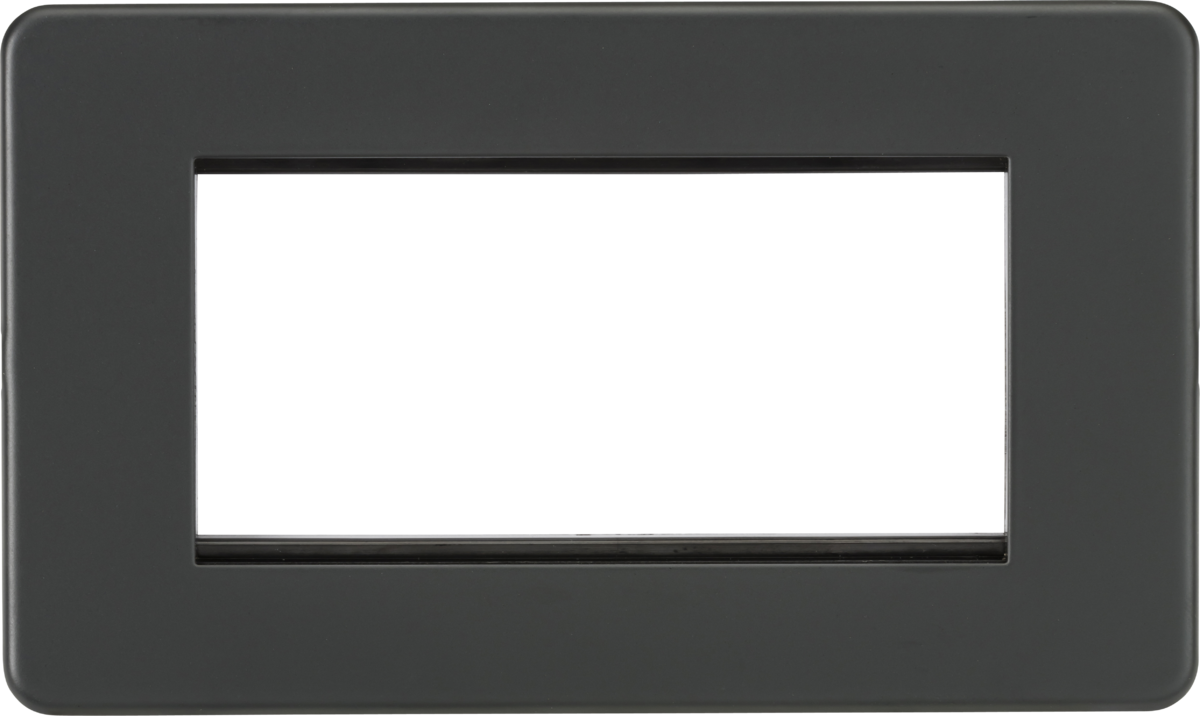

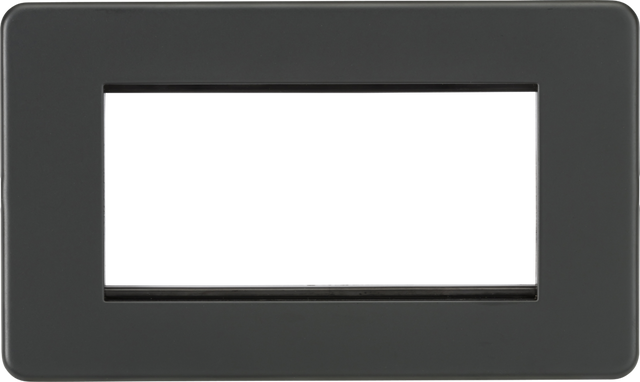

4G Modular Faceplate - Anthracite
The 4G Modular Faceplate in Anthracite is the ideal solution for custom installations including TV, DATA, HDMI, USB, and TEL applications. This faceplate accepts various euro module inserts and features a flawless screwless design, ensuring a seamless aesthetic.
- Accepts four 25 x 50mm or two 50 x 50mm euro module inserts, or a combination of both.
- Screwless low profile design with built-in gasket for an elegant finish.
- Minimum mounting box depth varies depending on the euro module used.
Compliance: IP20 rated for protection against solid objects larger than 12.5mm. Made with durable SPCC Steel.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Anthracite |
IP Rating | IP20 |
Construction | SPCC Steel |

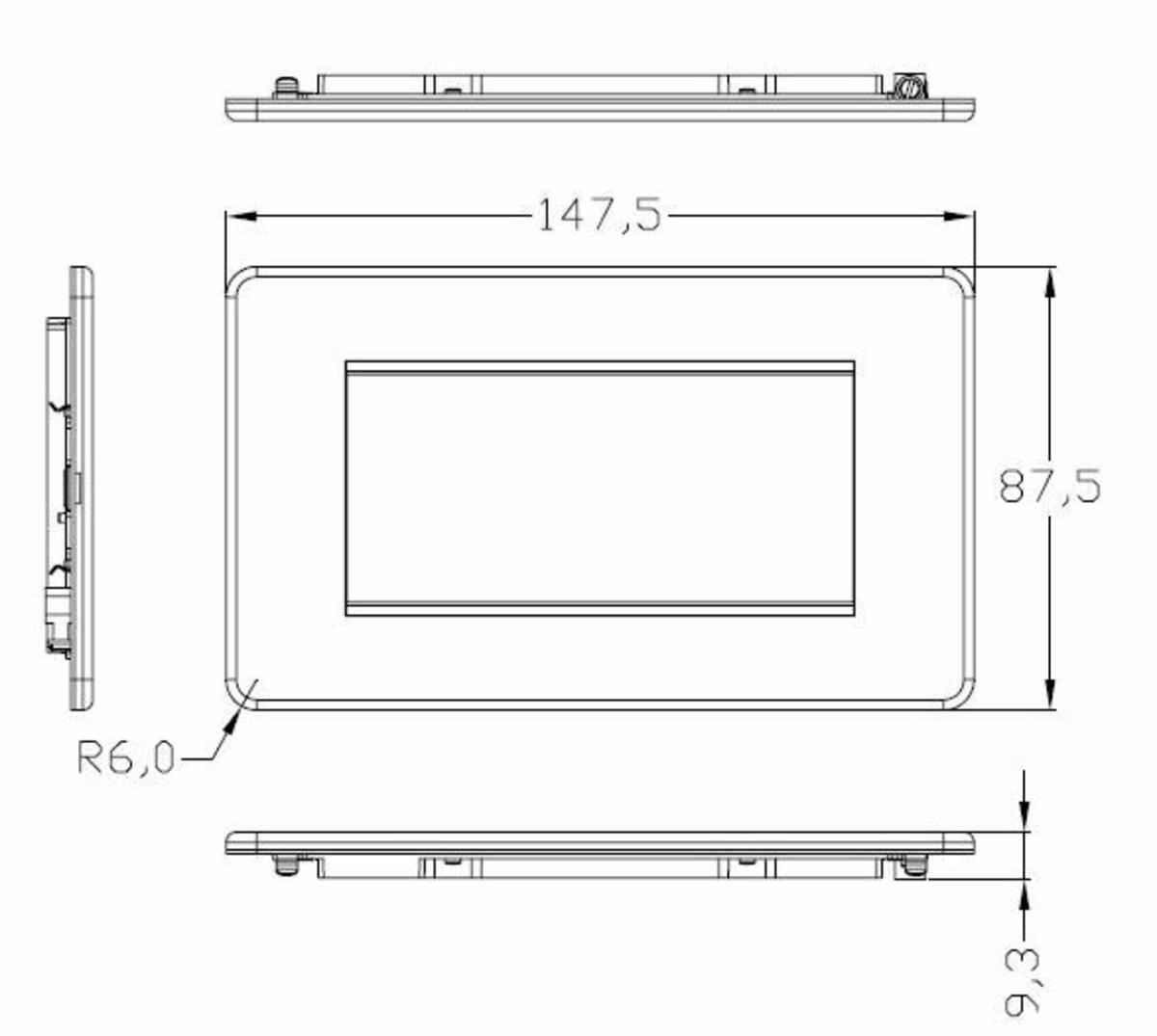

Dimensions
Depth | 12.3 mm |
---|---|
Width | 147.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Wiring-accessories
Earth Terminal | Yes |
---|
4G Modular Faceplate - Anthracite features

4G Modular Faceplate, Anthracite, Low Profile, Screwless Design, Euro Module Compatible, IP20 Rated, SF4GAT
