Product Overview & Key Benefits

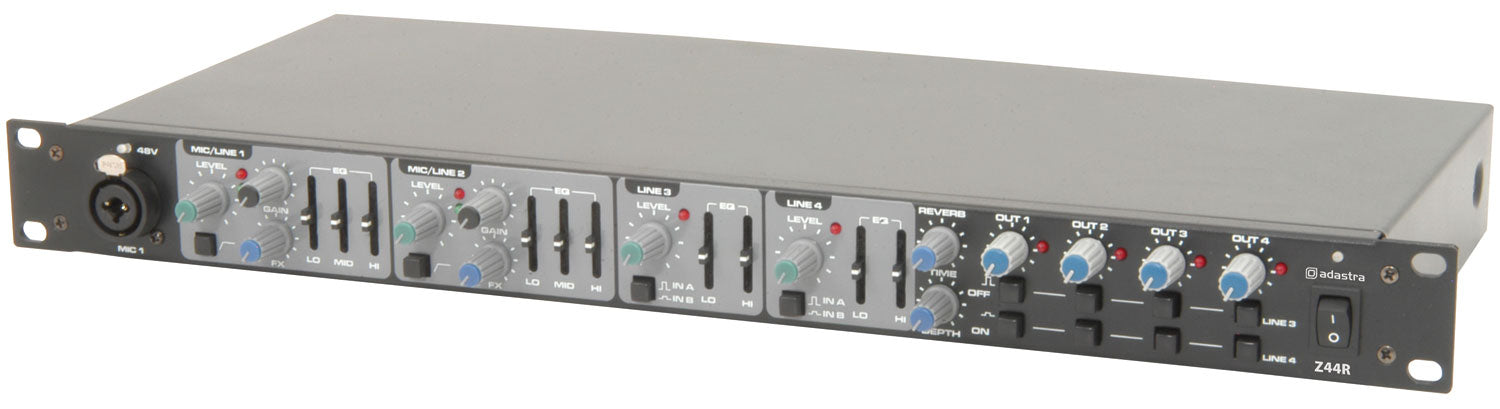

The Multi-purpose 1U Mixer is a versatile audio mixing solution designed for both professional and home environments. With its compact 1U rack design, this mixer offers two mic/line inputs and two stereo line inputs, allowing for seamless integration into various setups. The mixer is equipped with switchable outputs that cater to multiple zones, making it ideal for applications ranging from DJ performances to multi-room sound setups in venues. Its user-friendly features provide significant benefits for audio enthusiasts, including easy control of levels, EQ settings, and effects.

Technical Specifications & Product Details

• Weight:2.75kg
• Dimensions:483 x 44 x 220mm
• FX Controls:Reverb time, Depth (onboard or external level)
• Power Supply:230Vac, 50Hz (IEC)
• Output Controls:Level, Line 3 on/off, Line 4 on/off
• Indicators (LED):Power, 48V, Mic/line signal+peak, Line peak, Output peak

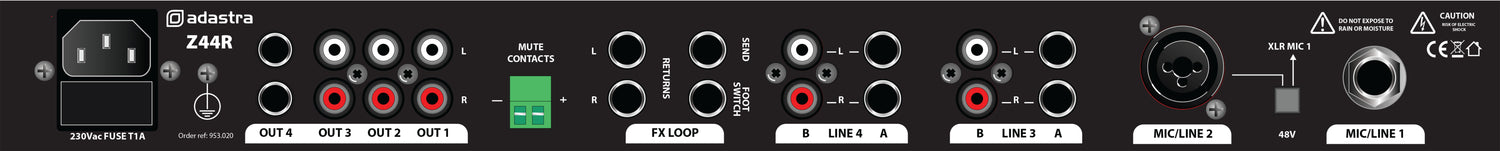

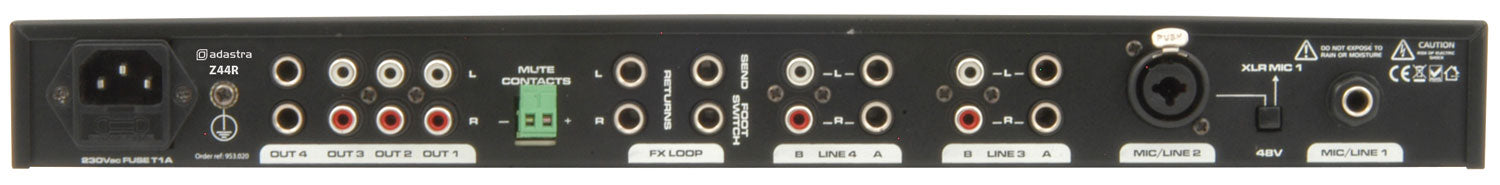

• Output Connections:Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack
• Fire Alarm Contacts:Modular terminal, make-to-mute all except Mic 1
• Mic/Line Channel Inputs:Ch 1 front combo and rear jack, Ch 2 combo (rear)
• Line 3 + 4 Stereo Inputs:Input A (L+R) 6.3mm jack / Input B (L+R) RCA

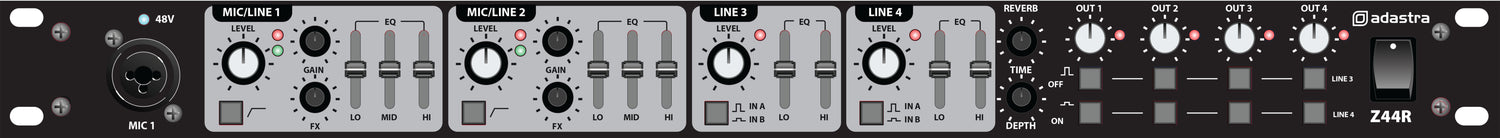

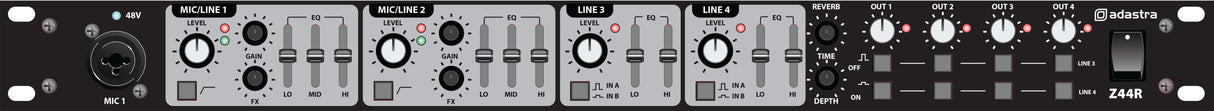

• Mic/Line Channel Controls:Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders
• Line 3 + 4 Stereo Controls:Level, In A/B and Lo/Hi EQ faders
• FX Connections (6.3mm jack):Footswitch, Send (defeats onboard reverb), L+R Return

Ideal Uses & Applications

This Multi-purpose 1U Mixer is perfect for a variety of users and environments. Its flexible features make it suitable for:

• DJ Setups:Enhance vocal mixing capabilities to ensure clear and defined sound during performances.
• Multi-room Venues:Allow sound zoning to cater to different areas such as restaurants, hotels, and event spaces.
• Home Studios:An excellent tool for musicians and podcasters requiring high-quality mixing and effects.
• Live Events:Ideal for small to medium gatherings, providing reliable and professional audio control.

Energy Efficiency & Cost Savings

While primarily designed for performance and flexibility, the Multi-purpose 1U Mixer also contributes to energy savings. With its efficient power supply operating at 230Vac, users can expect a reduction in energy consumption compared to less efficient models. By ensuring optimal audio output with precision, this mixer can help reduce the need for additional amplification, thus saving on electricity costs in the long run.

In summary, the Multi-purpose 1U Mixer combines compact design with powerful audio capabilities, making it an essential addition to any audio setup. With its wide range of applications and focus on efficiency, this mixer is designed to meet the demands of both professional and amateur audio users alike.
