Product Overview & Key Benefits

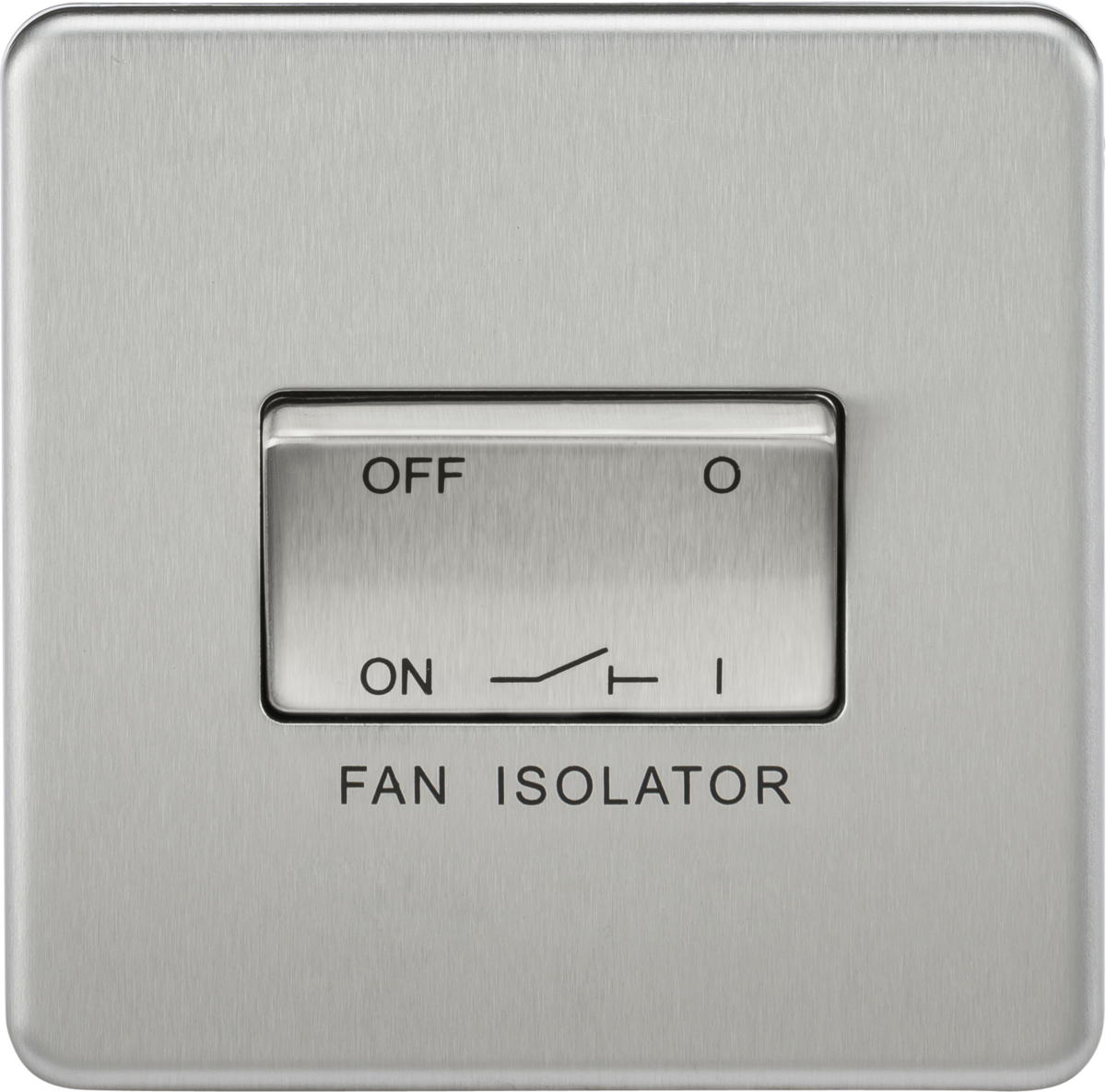

The 10A Fan Isolator Switch in Brushed Chrome provides an effective solution for safely isolating fan units in various residential and commercial environments. It's especially suited for usage in en-suite bathrooms, family bathrooms, and utility rooms, ensuring safety during maintenance with easy access. The screwless design enhances its aesthetic appeal, making it a modern addition to any decor.

Technical Specifications & Product Details

• Rated Current:10A
• Voltage:230V, 50Hz
• Construction Material:201 Stainless Steel
• IP Rating:IP20
• Finish:Brushed Chrome
• Dimensions:87.5mm x 87.5mm x 21.5mm (Height x Width x Depth)
• Projection:8.4mm
• Plate Depth:4.3mm
• Recessed Depth:13.1mm
• Minimum Mounting Box Depth:16mm
• Conditional Short Circuit Current (Inc):1500A
• Standards Compliance:Certified to EN 60669-1 and EN 60669-2-4
• Earth Terminal:Yes

Ideal Uses & Applications

This Fan Isolator Switch is ideal for domestic and commercial installations including bathrooms and utility rooms, where isolating the fan unit is essential for safe servicing. The triple pole design ensures complete isolation of the electrical circuit, providing peace of mind when performing maintenance tasks.

Energy Efficiency & Cost Savings

By incorporating this isolator switch in your electrical setup, you contribute to a more organised and safer electrical environment, reducing the risk of unnecessary energy consumption and maximising safety while maintaining the functionality of your ventilation systems. This switch ensures that fans can be easily isolated when not in use, potentially reducing energy usage during off-peak times.
