Touch Free Sensor Button (35mm)
Hygienic Exit
£
19
23
(Incl. VAT)
RRP: £21.36
About this product

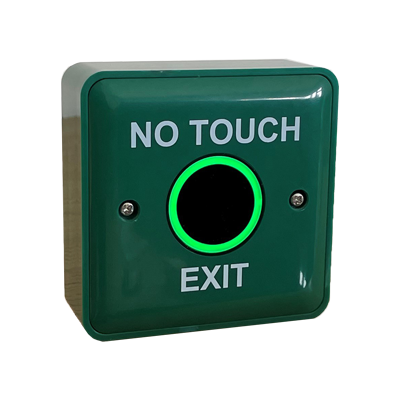

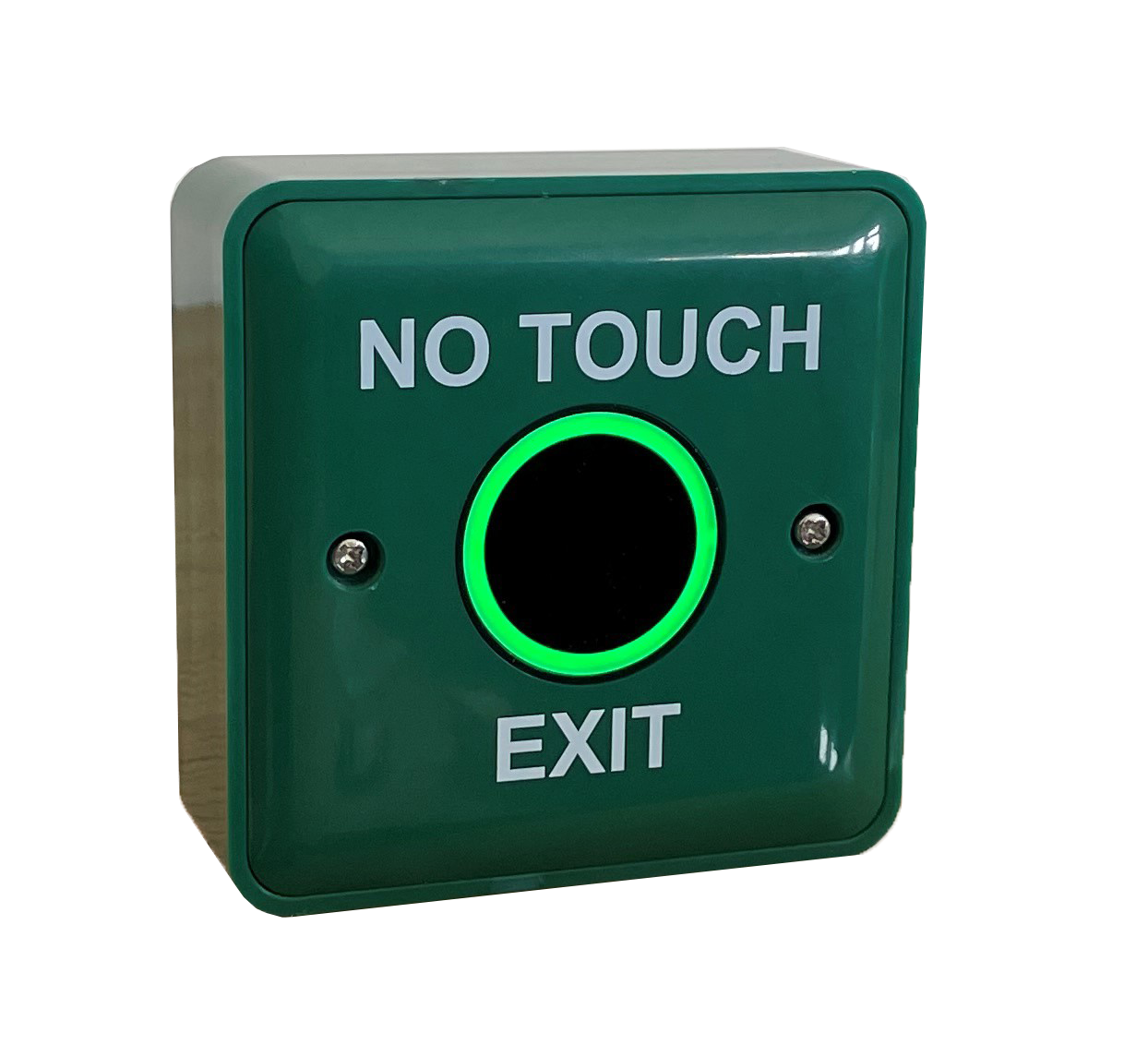

Touch Free Sensor Button - EBNT/TF-4
- 35mm ‘Touch Free’ sensor button for a hygienic exit solution.
- Illumination: Red for standby, Green when operated.
- Manufactured using anti-bacterial plastics for enhanced safety.
- High impact plastic back box suitable for various installations.
- Can be surface or flush fitting with easy clean surface.
- Ideal for general and sensitive areas.
- Screw footprint for easy installation on standard back boxes (distance between fixing holes: 60mm).
- Technical Specifications:
- Contacts: Double pole NONC contacts.
- Contact Load: 0.5A @ AC 125V / 2A @ DC 30V.
- Voltage: 12VDC @ 45mA operating with +/- 10% voltage tolerance.
- Button rated IP65 ingress protection.
- Operating distance: 0-150mm.
- Relay timer: 5 seconds.
-
Download
- EBNT/TF-4/5 spec
£
19
23
FAST delivery by Order within
Technical Details
Specifications
ITM No.
ITM001174
Manufacturer
RGL
Type of Product
simple
Voltage
12 VDC
Ingress Protection
IP65
Dimensions
Width
85 mm
Height
85 mm
Depth
32 mm
Specifications
ITM No. | ITM001174 |
---|---|
Manufacturer | RGL |
Type of Product | simple |
Voltage | 12 VDC |
Ingress Protection | IP65 |
Dimensions
Width | 85 mm |
---|---|
Height | 85 mm |
Depth | 32 mm |
Touch Free Sensor Button (35mm) features

Touch Free Sensor Button, 35mm, IP65 Rated, Hygienic Exit Solution, EBNT/TF-4
