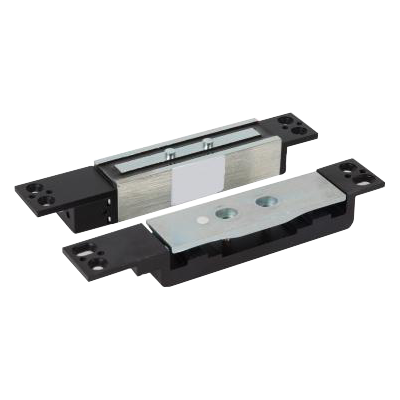

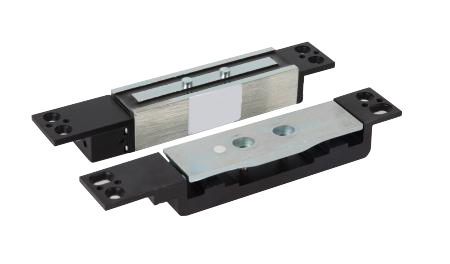

Shear Lock 2600lbs - Automatic & Fireproof

Visit Access Control Systems
Fireproof 2600 lbs Force
£ 113 46
(Incl. VAT) RRP: £126.06
About this product

The MSL-2600 Shear Lock offers robust security features tailored for modern access control applications.

  • Automatic Repeated Locking: Designed for up to 60 locking cycles, ensuring enhanced security.
  • Dual Voltage Compatibility: Operates on 12V or 24V DC, automatically adjusting to power supply.
  • Fireproof & Durable Material: Crafted from fireproof materials suitable for wooden and aluminium doors.
  • High Shear Force: Achieves a maximum shear force of 1200Kg (2600lbs), perfect for high-security environments.
£ 113 46
FAST delivery by Order within
Ships from United Kingdom
14 days returns or replacements
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
ITM No.
ITM001183
Manufacturer
RGL
Type of Product
Simple
Voltage
12V/24V DC
Operational Current
220mA @ 12VDC / 190mA @ 24VDC
Holding Force
1200Kg / 2600lbs
Open Delay Timer
0.5-25 seconds
Dimensions
Length
182 mm
Width
25 mm
Height
30 mm
Technical-specifications
Door Position Outputs
Yes
Operating Temperature
0-90°C
Magnetic Distance
3mm @ 12VDC / 5mm @ 24VDC
Mounting Type
Horizontal Only
Included Components
Magnetic Lock Body, Armature, Shims, Screw Pack
Specifications
Dimensions
Technical-specifications

Specifications

ITM No. ITM001183
Manufacturer RGL
Type of Product Simple
Voltage 12V/24V DC
Operational Current 220mA @ 12VDC / 190mA @ 24VDC
Holding Force 1200Kg / 2600lbs
Open Delay Timer 0.5-25 seconds

Dimensions

Length 182 mm
Width 25 mm
Height 30 mm

Technical-specifications

Door Position Outputs Yes
Operating Temperature 0-90°C
Magnetic Distance 3mm @ 12VDC / 5mm @ 24VDC
Mounting Type Horizontal Only
Included Components Magnetic Lock Body, Armature, Shims, Screw Pack

Shear Lock 2600lbs - Automatic & Fireproof features

MSL-2600

Shear Lock System, 2600lbs Holding Force, Automatic Locking, Dual Voltage 12/24V DC, MSL-2600

Product Overview & Key Benefits

The Shear Lock MSL-2600 is an exceptional choice for improving security in both residential and commercial environments. With a maximum holding force of 2600 lbs (1200Kg) and a sleek design, it is perfect for doors that require high-security measures.

Technical Specifications & Product Details

  • Type:Electromagnetic Shear Lock
  • Voltage:12V or 24V DC
  • Operating Current:220mA @ 12V DC / 190mA @ 24V DC
  • Dimensions:182mm x 25mm x 30mm
  • Weight:1.2 Kg

Ideal Uses & Applications

This shear locking system is ideal for security applications in commercial buildings, offices, or residential gated properties. It offers peace of mind for situations where access control is a necessity.

Energy Efficiency & Cost Savings

By incorporating a dual voltage operation, the MSL-2600 efficiently utilises existing electrical systems, offering energy savings while maintaining robust performance.
