Product Overview & Key Benefits

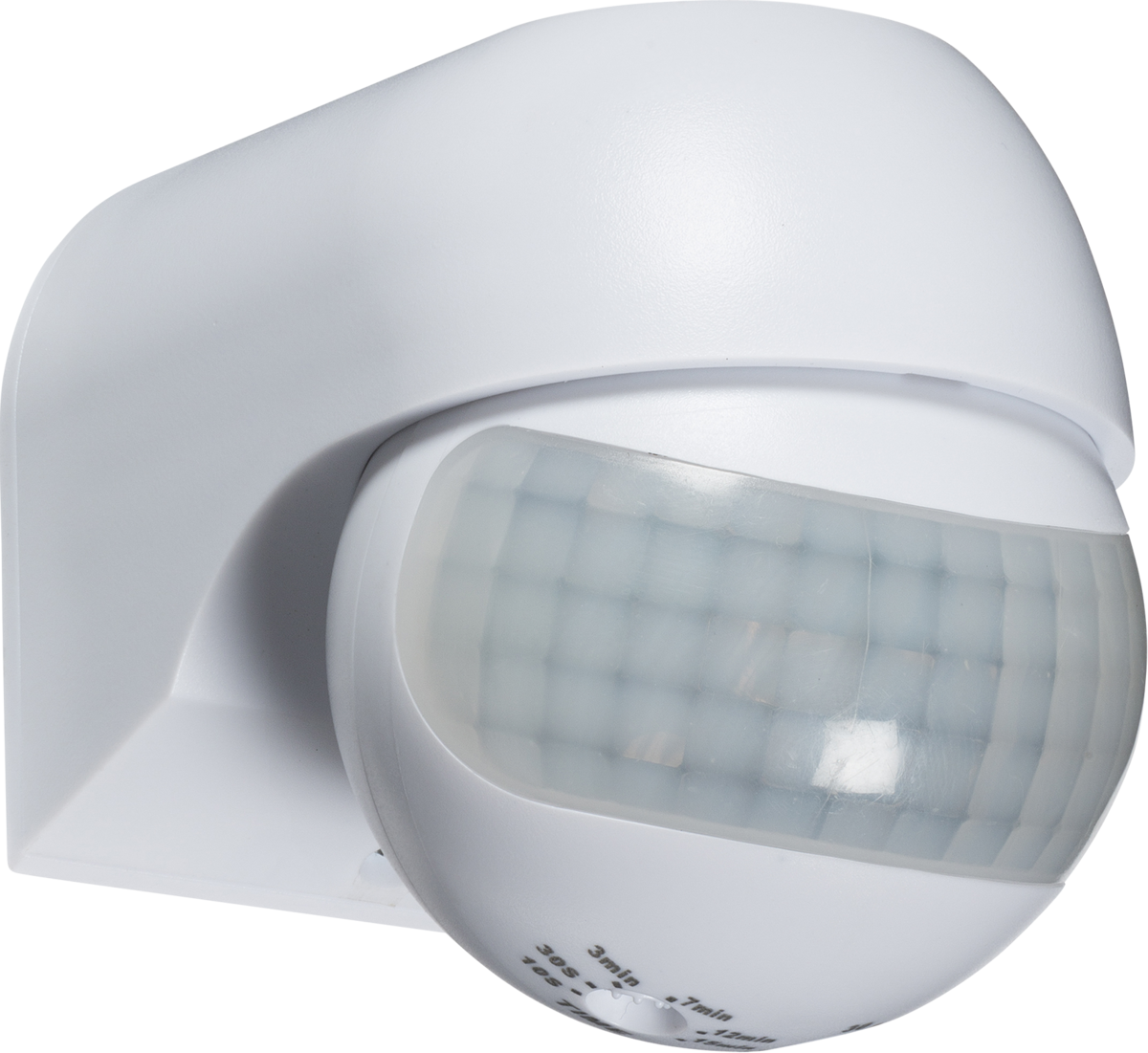

The IP44 180° Mini PIR Sensor is an essential device for controlling outdoor lighting efficiently and reliably. This sensor automates lighting based on movement, making it perfect for both residential and commercial installations. With its versatile design and adjustable settings, this product is ideal for DIY enthusiasts as well as professional contractors looking for a dependable solution for their lighting control needs.

Technical Specifications & Product Details

• Class:II
• Finish:White
• IP Rating:IP44 (suitable for outdoor use)
• Construction Material:Polycarbonate
• Primary Voltage:230V 50Hz
• Detection Range:Up to 12m
• Field of Detection:180°

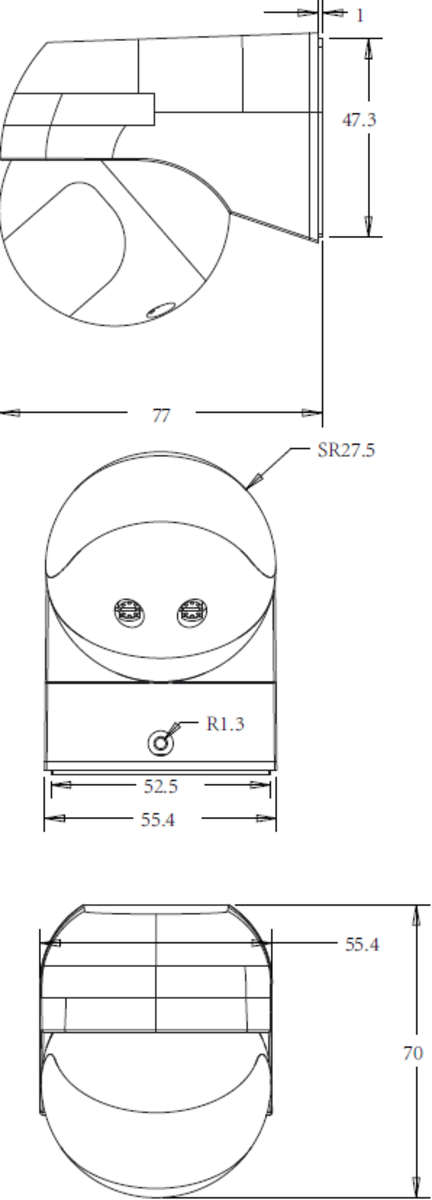

• Height:70mm
• Width:55mm
• Length:77mm
• Switching Capacity:Max 2000W incandescent / Max 1000W LED
• Adjustable Lux:Yes
• Customisable Time Settings:10 seconds to 15 minutes
• Compliance:EN 61058-1, EN 55015, EN 61547, and EN 61000 standards

Ideal Uses & Applications

This PIR sensor is perfect for a variety of applications, including:

• Outdoor lighting in private residences
• Commercial buildings needing automated lighting control
• Hospitality settings where entrance and exit areas require effective lighting
• Office complexes aiming for energy-efficient solutions
• Security lighting to enhance safety and security in external environments

Energy Efficiency & Cost Savings

The IP44 Mini PIR Sensor promotes energy efficiency by ensuring lights are only activated when necessary, leading to significant cost savings on electricity bills. With a maximum switching capacity of 2000W, users can save up to 50% on their outdoor lighting costs by using this sensor. Not only does it offer excellent functionality, but it also contributes to a more sustainable approach to energy consumption.
