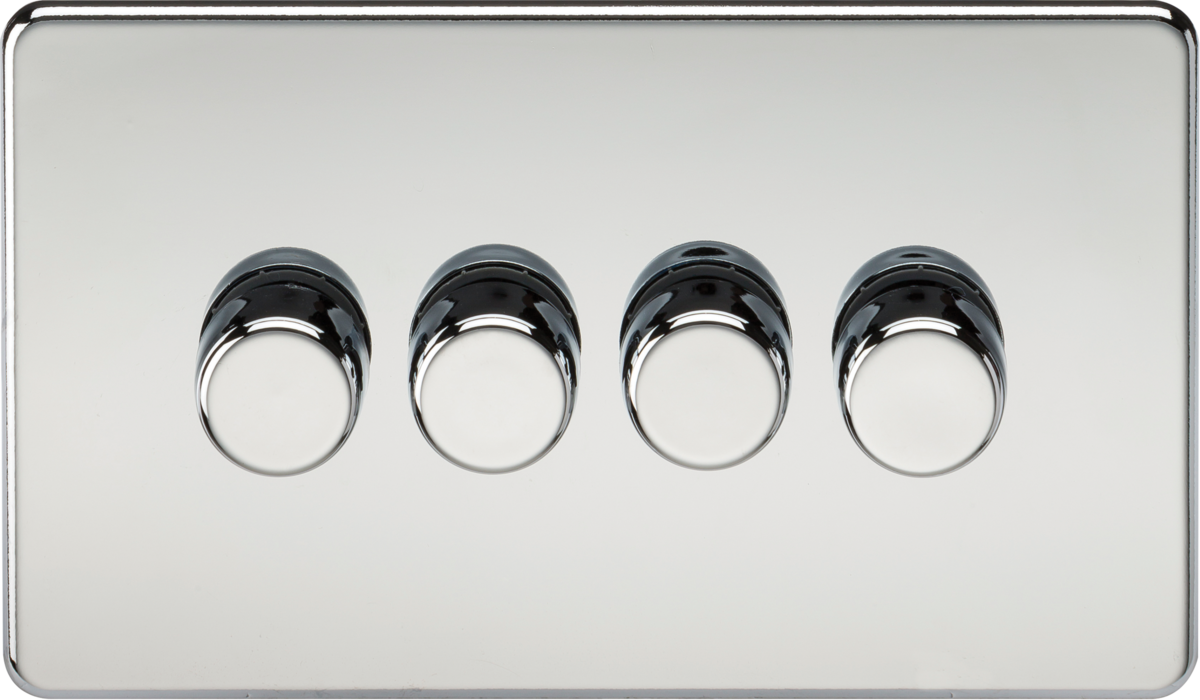

Knightsbridge: SF2194PC, 4G 2-Way Intelligent Dimmer, 10-200W, 5-150W LED, Polished Chrome, Trailing-edge & Leading-edge
About this product
The 4G 2-way 10-200W (5-150W LED) intelligent dimmer in polished chrome is the perfect finishing touch for any modern home.
- Flawless screwless low profile metal design with matching dimmer caps.
- Switch easily between trailing-edge and leading-edge modes for a highly compatible solution.
- Trim, switch modes, and reset dimmer from the front of the plate via the control knob.
- Push on/off with rotary dimming action.
- Preset in trailing-edge mode, suitable for use with dimmable lamps only.
- Overload and overheat protection for added safety.
- Fitted with an inrush current limiter (ICL).
Important: Do not use in a mixed environment with different brands of lamps or different wattages of lamps in the same fitting.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Chrome |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

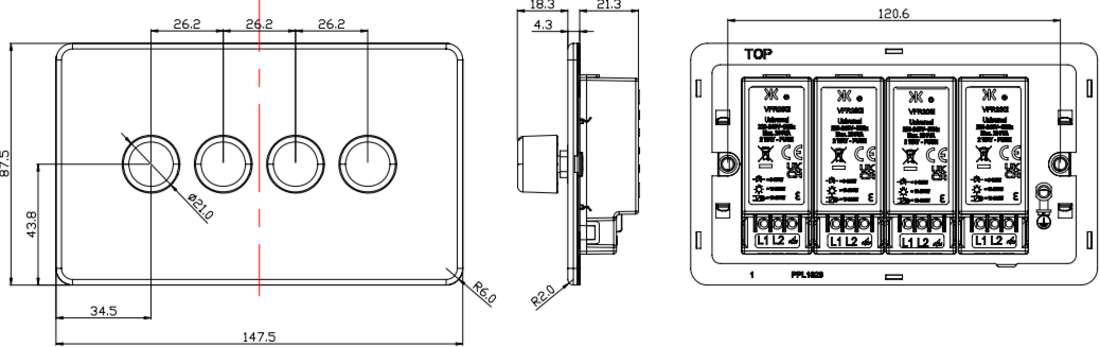

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer - Polished Chrome features
