TP-Link EAP773 Tri-Band Wi-Fi 7 Access Point – BE9300 Ceiling Mount | SKU: EAP773 | 10G PoE++, Omada Cloud Managed

Upgrade your wireless infrastructure with the TP-Link EAP773 Ceiling Mount Wi-Fi 7 Access Point (SKU: EAP773), a next-generation networking solution designed for enterprise-grade performance. Featuring BE9300 Tri-Band Wi-Fi 7speeds and a 10G PoE++ Ethernet port, the EAP773 is purpose-built for offices, retail spaces, hotels, and education facilities requiring ultra-fast, low-latency, and interference-free wireless coverage.

Wi-Fi 7 Performance Redefined – BE9300 Speed

The EAP773 supports the latest Wi-Fi 7 (802.11be) standard, unlocking total wireless speeds of up to 11 Gbps:

• 6 GHz: 5760 Mbps
• 5 GHz: 2880 Mbps
• 2.4 GHz: 574 Mbps

Thanks to 320 MHz ultra-wide channel bandwidth, the access point delivers significantly higher throughput and supports more simultaneous transmissions compared to previous generations.

Multi-Link Operation (MLO) for Seamless Performance

MLO enables network devices to transmit and receive data across multiple frequency bands at once, reducing latency and improving stability. Whether you're running HD video conferencing, cloud-based business applications, or AR/VRtools, the EAP773 guarantees a stable connection, even in high-traffic environments.

Combined with Multi-Resource Units (Multi-RUs), the device reduces interference, ensuring consistent delivery of mission-critical data.

10G PoE++ Port – Wired for the Future

Equipped with a 10 Gigabit Ethernet port that supports 802.3bt PoE++, the EAP773 can be easily powered and connected via a single cable, streamlining installation and eliminating the need for nearby electrical sockets.

This makes the EAP773 ideal for deployment in large-scale networks including:

• Corporate offices
• Retail chains
• Universities and schools
• Medical institutions

The PoE++ feature ensures high performance while enabling flexible ceiling or wall-mounted deployment.

Advanced Enterprise Features

The EAP773 supports the Omada SDN (Software Defined Networking) platform, enabling full cloud-based or on-premises centralized management. You can manage, monitor, and provision multiple EAP773 units across different sites from a single interface using:

• Omada Cloud Controller
• Omada Hardware Controller
• Omada Software Controller
• Omada App (Mobile)

It also features Auto Channel Selection and Transmit Power Adjustment, allowing intelligent optimisation for coverage and minimal signal interference.

Business-Class Security and Guest Access

Security is paramount, and the EAP773 includes robust features such as:

• WPA3 encryption
• Secure guest network with up to 24 SSIDs
• Captive portal with SMS or voucher-based login
• Rogue AP detection

These tools allow precise control over guest access while maintaining internal network security — perfect for co-working spaces, hospitality, and retail environments.

Example Use Case

A multi-floor office complex deploying a high number of wireless devices—laptops, smartphones, IP phones, and IoT systems—can integrate multiple EAP773 units into a mesh network using Omada SDN. The result? Seamless roaming, full-speed connectivity throughout the building, and enterprise-grade control via the cloud.

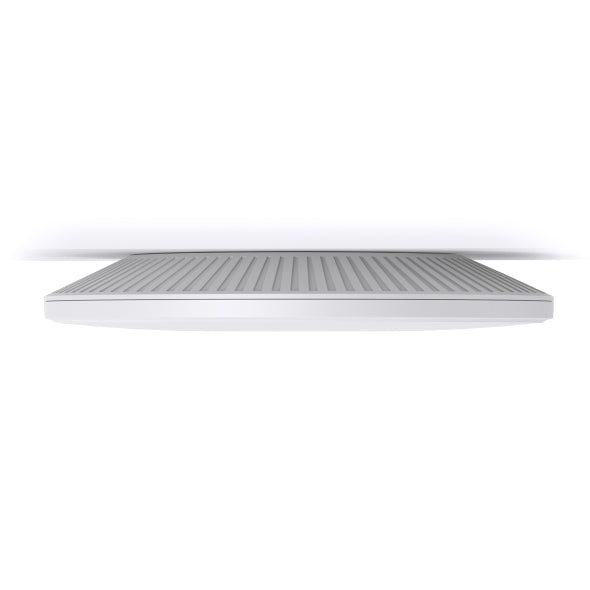

Additionally, the ultra-thin form factor (Φ220 mm × 32.5 mm) allows for discreet ceiling installation in reception areas, meeting rooms, or hotel corridors without compromising aesthetics.

Package Contents:

• TP-Link EAP773 Access Point
• Mounting Kit
• Quick Installation Guide

Specifications:

• Model: EAP773
• SKU: EAP773
• Wireless Speeds: BE9300 (6 GHz: 5760 Mbps, 5 GHz: 2880 Mbps, 2.4 GHz: 574 Mbps)

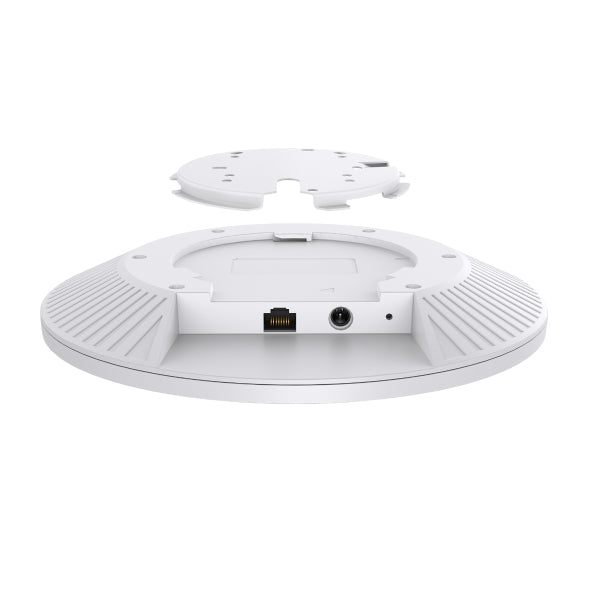

• Port: 1× 10G PoE++ RJ45
• Wi-Fi Standard: 802.11be (Wi-Fi 7)
• Management: Cloud, Software, Hardware, or App-based Omada SDN
• Security: WPA3, Captive Portal, Rogue AP Detection
• Power: 802.3bt PoE++
• Dimensions: Φ220 mm × 32.5 mm
• Warranty: 3 Years

Delivering next-gen speed, reliability, and manageability, the TP-Link EAP773 is the ideal access point for demanding, high-density wireless environments.
