TP-Link: EAP783 BE19000 Tri-Band Wi-Fi 7 Access Point, Ceiling Mount, Dual 10G Ports, PoE++, Omada Cloud Managed

Transform your business network with the TP-Link EAP783 BE19000 Tri-Band Wi-Fi 7 Access Point (SKU: EAP783), engineered for enterprises demanding top-tier speed, security, and scalability. As a ceiling-mountable unit under the renowned Omada SDN platform, the EAP783 introduces Wi-Fi 7 to your network—delivering ultra-fast wireless throughput, low latency, and robust multi-device capacity.

BE19000 Wi-Fi 7 Performance – Maximum Throughput

With a combined wireless speed of over 18 Gbps, the TP-Link EAP783 redefines connectivity:

• 6 GHz band: 11,520 Mbps
• 5 GHz band: 5,760 Mbps
• 2.4 GHz band: 1,376 Mbps

Thanks to 320 MHz bandwidth on the 6 GHz frequency, the EAP783 doubles available throughput compared to Wi-Fi 6, supporting more concurrent transmissions and increasing spectrum efficiency in high-density environments such as hotels, hospitals, and universities.

Built for Modern Demands – Dual 10G Ports and PoE++

To fully harness Wi-Fi 7 capabilities, the EAP783 features 2× 10G Ethernet ports, offering high-speed wired backhaul for large-scale network performance. The 802.3bt PoE++ support enables flexible installations with a single cable for both power and data—ideal for wall or ceiling mounting in enterprise spaces where cable management and aesthetics matter.

Multi-Link Operation (MLO) and Multi-RUs for Stability

MLO (Multi-Link Operation) enables client devices to send and receive data across multiple frequency bands and channels simultaneously, ensuring consistent connection with minimal latency. Meanwhile, Multi-Resource Units (Multi-RUs) help eliminate wasted spectrum by enabling more efficient channel usage—ideal for environments with fluctuating or high-volume traffic.

These enhancements make the EAP783 perfect for:

• Real-time conferencing
• Cloud-based SaaS operations
• AR/VR applications
• Smart building automation systems

Seamless Integration with Omada SDN

The EAP783 is a fully managed Omada access point, enabling cloud-based or local control through the Omada Software Controller, Hardware Controller, or Cloud-Based Controller (subscription required). Features include:

• Zero-Touch Provisioning (ZTP)
• Centralised configuration
• Real-time monitoring
• Automatic firmware updates

With Omada Mesh Technology, wireless expansion becomes simpler and more reliable, minimising cabling while maintaining high performance across extended coverage areas.

Enterprise-Grade Security

Security is central to enterprise operations, and the EAP783 offers a robust suite:

• WPA3 encryption for enhanced data protection
• Guest network support with up to 24 SSIDs
• Captive portal with SMS login for regulated access
• Rogue AP detection to prevent unauthorised network breaches

These features are ideal for managing guest access in hospitality, retail, and corporate environments while maintaining secure internal operations.

Example Use Case

A hospital deploying dozens of access points across departments can centralise management through Omada SDN, allowing IT administrators to monitor network health, adjust settings, and deploy security updates from a single dashboard. Patients can connect to secure guest Wi-Fi with SMS-based login, while staff benefit from seamless roaming and stable multi-band connectivity, even when accessing cloud-based EHR systems or video conferencing tools.

What’s in the Box:

• TP-Link EAP783 Access Point

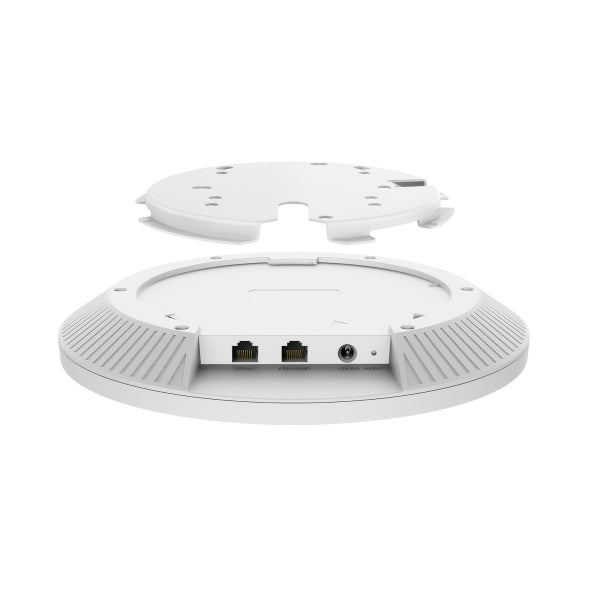

• Mounting Kit
• Quick Installation Guide

Key Specs:

• Model: EAP783
• SKU: EAP783
• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Max Speed: 18,656 Mbps (Tri-Band)
• Ports: 2× 10G RJ45
• Power Supply: PoE++ (802.3bt)
• Mounting: Ceiling or Wall
• Management: Omada Cloud SDN
• Dimensions: Slim circular ceiling design
• Security: WPA3, captive portal, rogue AP detection
• Warranty: 3 Years

Empower your organisation with the TP-Link EAP783 — a true enterprise-grade Wi-Fi 7 ceiling-mount access pointthat delivers unmatched performance, flexibility, and control.
