Introduction to the RG‑RAP1201 and its key features

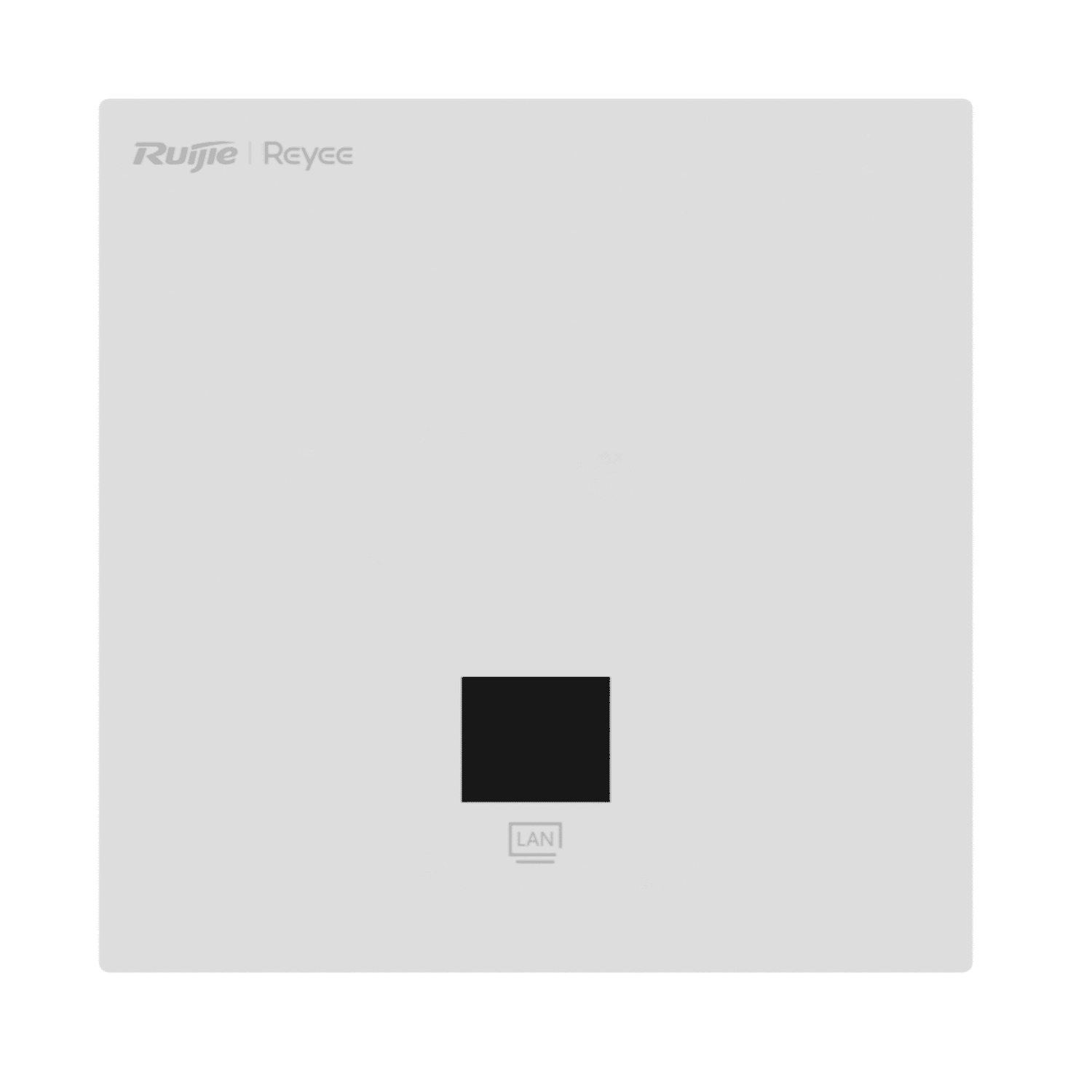

RG‑RAP1201 — AC1300 wall‑mounted access point for hotels, homes & small offices.The RG‑RAP1201 is a purpose‑built in‑wall/wallbox Wi‑Fi 5 (802.11ac) access point designed to deliver reliable dual‑band wireless performance in a compact, discrete package. Its AC1300 class radios (approximately 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) and 2×2 MU‑MIMO architecture make it a practical choice where space, aesthetics and predictable connectivity are priorities. With two Gigabit Ethernet ports (one PoE uplink and one downlink), PoE power support, multi‑SSID capability and centralised Ruijie Cloud or local web management, the RG‑RAP1201 is tailored for guest rooms, small offices, meeting rooms and retrofit installations that need a neat wall‑mounted AP instead of a bulky ceiling or standalone unit.
Detailed specifications and benefits
The RG‑RAP1201 packs a lot of useful technology into an 86 × 86 × 42.4 mm form factor that fits standard mechanism boxes. Key technical details and the benefits they provide are listed below.
- SKU: RG‑RAP1201 — a compact AC1300 wall AP built to industry standard dimensions.
- Wireless standard: 802.11a/b/g/n/ac (Wi‑Fi 5), supporting modern client devices while maintaining backward compatibility.
- Aggregate throughput: Up to 1,267 Mbps (≈400 Mbps on 2.4 GHz + 867 Mbps on 5 GHz).
- Radio / antenna: 2×2 MU‑MIMO with internal omnidirectional antennas (~2 dBi), supporting 2 spatial streams.
- Ethernet ports: Two 10/100/1000Base‑T ports — 1×PoE inlet (uplink) and 1×downlink to power or connect a local device.
- PoE: IEEE 802.3af powered (PoE), with very low power consumption (≤9 W).
- SSIDs and security: Support for up to 8 SSIDs and standard WPA / WPA2 (AES), WPA‑PSK authentication.
- Management: Centralised Ruijie Cloud management plus local web configuration for flexibility during deployment and troubleshooting.
- Physical: Dimensions 86 × 86 × 42.4 mm, weight ≈ 140 g. Mounting in standard in‑wall or wallbox mechanism boxes.
- Discreet installation: The wall/in‑wall form factor allows the AP to blend into rooms where a ceiling AP would be visually intrusive or impossible to mount.
- Easy wiring: Two gigabit ports provide a PoE uplink for data/power and a downlink to serve wired devices (IP phones, set‑top boxes, smart TVs or a wired client) without an extra switch port.
- Low operating cost: IEEE 802.3af PoE support and ≤9 W power draw reduce ongoing energy costs and permit simple deployment using PoE switches or injectors.
- Simplified management: Centralised cloud management via Ruijie Cloud scales from single‑site deployments to many rooms across multiple locations while local web access handles smaller or offline setups.
- Guest and network segmentation: Multiple SSIDs allow separation of guest, corporate and IoT traffic with distinct security settings and access policies.
Use cases and scenarios where the RG‑RAP1201 excels
The RG‑RAP1201 is optimized for locations where a tidy, wall‑mounted wireless access point provides the best compromise between coverage, aesthetics and cost. Typical scenarios include:
- Guest rooms benefit from a dedicated point of presence in each room for predictable performance, reliable roaming and easier network segmentation between guest and management networks.
- The small footprint and in‑wall mounting protect the AP from tampering while preserving a room’s décor.
- Individual wall APs in rooms or apartments enable operators to simplify troubleshooting and control bandwidth per tenant with multiple SSIDs and QoS policies.
- Meeting rooms often need discreet, centrally managed Wi‑Fi with wired connectivity for presentation equipment — the RG‑RAP1201 provides both in one device.
- Retrofit projects where ceiling access is limited benefit from wall‑mounted APs that fit existing wiring and boxes.
Comparisons with similar products in the market
When considering the RG‑RAP1201, it helps to compare it across three axes: form factor, management and cost‑to‑performance.
Ceiling APs typically offer slightly broader coverage and the ability to be centrally mounted for even distribution in open areas. However, wall‑mounted units like the RG‑RAP1201 are superior for individual rooms, corridors and where concealment matters — they mount into existing electrical boxes and present a clean aesthetic without exposing a larger device on the ceiling or desk.
The RG‑RAP1201 supports Ruijie Cloud management as well as local web configuration, offering deployment flexibility. Small businesses or hotels benefit from cloud‑based monitoring and centralised firmware updates, while standalone mode handles isolated installs. Compared to enterprise controller‑based ecosystems, cloud management often reduces upfront infrastructure cost and complexity while still providing analytics and policy control.
In the category of in‑wall / wallbox APs, the RG‑RAP1201 is positioned as an affordable AC1300 option. With a suggested retail price around $89.99, it competes well versus higher‑end enterprise in‑wall models that carry premium features and price tags. For organizations that need reliable, mid‑range throughput with PoE and two gigabit ports, the RG‑RAP1201 offers a compelling balance of price and capability. For deployments needing Wi‑Fi 6 throughput or advanced multi‑user features, organizations should evaluate Wi‑Fi 6 alternatives — but those generally come at increased cost and power requirements.
Customer feedback and reviews
Official customer testimonials for the RG‑RAP1201 may vary by reseller and deployment. In deployments with similar devices, common feedback themes include appreciation for the discreet in‑wall design, the convenience of a second Gigabit downlink to serve a local device, and simplified installations using PoE. IT teams often cite the value of centralised cloud management for remote monitoring and quicker troubleshooting.
If you are evaluating this AP, consider trialing a few units in real rooms to measure the performance with your typical client mix (smartphones, laptops, set‑top boxes). That hands‑on testing typically yields the best insight into how well the AP meets expectations for throughput, coverage and user density in your environment.
Practical tips for deployment
- Use IEEE 802.3af PoE switches or compatible injectors — the RG‑RAP1201 is designed for low power consumption (≤9 W) but requires a compliant PoE source.
- Place the AP in a standard mechanism box at a central wall location for the room to provide the best coverage to occupants and devices.
- Configure multiple SSIDs to separate guest and corporate traffic, and enable WPA2‑AES for security; consider VLAN tagging if you need strict network isolation for services such as IPTV or VoIP.
- Monitor performance through Ruijie Cloud to track client counts, throughput and RF environment trends over time; this helps identify congestion and optimize channel settings.
Conclusion — why the RG‑RAP1201 is a great choice
The RG‑RAP1201 AC1300 wall‑mounted access point delivers a focused mix of practicality, performance and affordability. Its in‑wall form factor and two‑port Gigabit design make it especially well suited to hospitality, student housing, small offices and retrofit projects where a neat, low‑profile AP is preferred. With 2×2 MU‑MIMO AC1300 radios, PoE power, multi‑SSID support and cloud or local management options, it provides the essential features most deployments need without unnecessary complexity.
For organizations seeking a cost‑effective way to provide reliable room‑level Wi‑Fi with wired passthrough and simple central management, the RG‑RAP1201 is a compelling option. As with any network purchase, evaluate it in the context of your coverage goals, client density and future upgrade plans (for example, if you expect to migrate to Wi‑Fi 6 in the near future). If those factors align, the RG‑RAP1201 offers a balanced, efficient solution for neat, professional wireless in rooms and small spaces.
