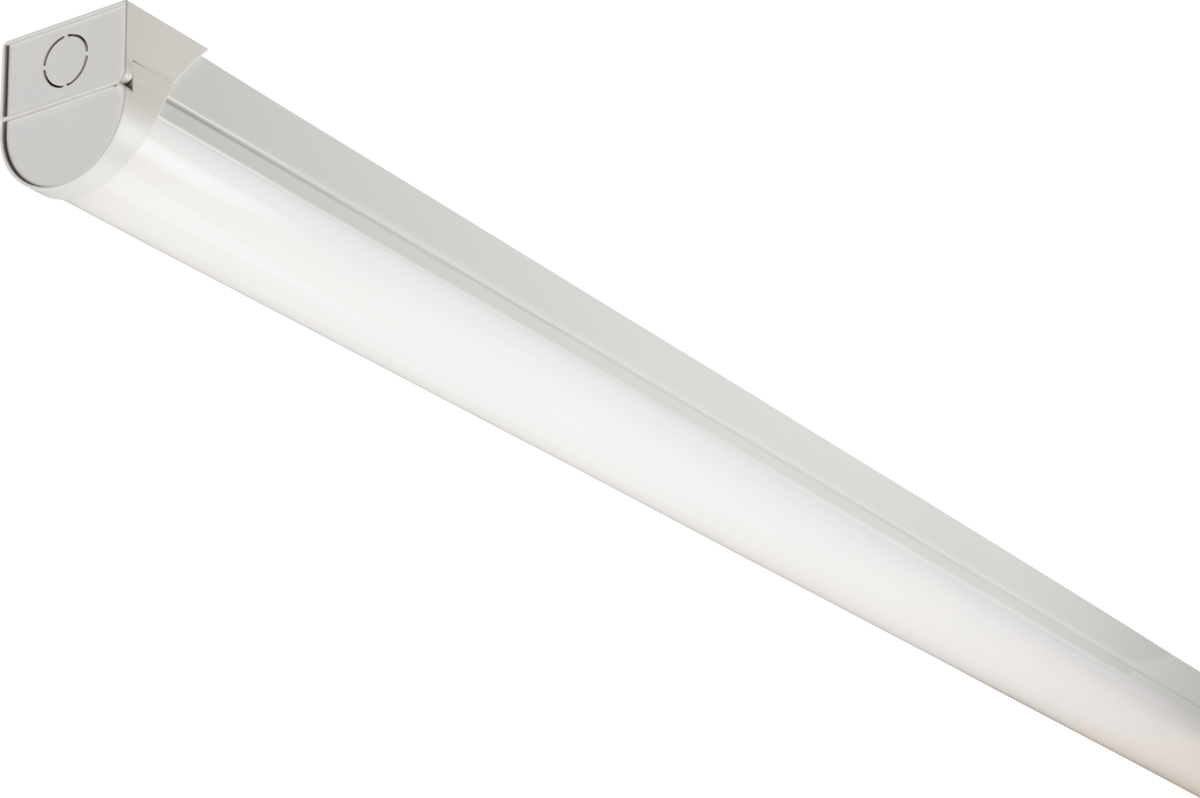

LED Batten Light (22W, 4000K)
The 230V 4ft 22W LED Batten provides an energy-efficient alternative to conventional lighting fixtures. Designed with steel and polycarbonate, this durable batten ensures:
- Easy installation with rear and end conduit fixings.
- Compatible with standard 600mm centres and BESA boxes.
- Hinged gear tray for straightforward access.
- Push fit loop-in loop-out connectors—no hassle connections.
- Long life and low maintenance due to modern LED technology.
Ideal for both commercial and residential use, this lighting fixture generates 2625 lumens, with a cool white light temperature of 4000K.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Pressed steel |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |

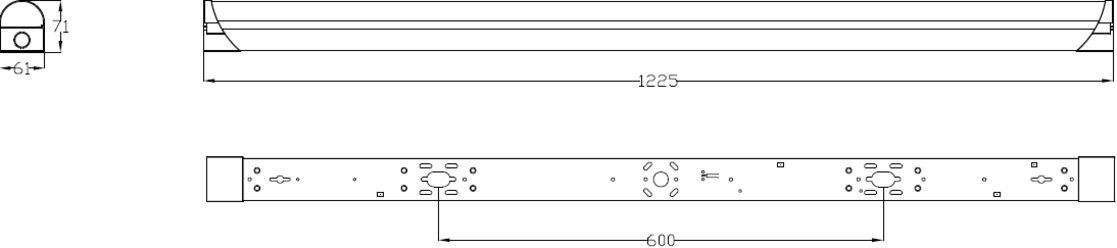

Dimensions
Width | 61 mm |
---|---|
Length | 1225 mm |
Projection | 71 mm |
Lamp
L70B50 | 50,000 |
---|---|
Dimmable | No |
Beam Angle | 115 |
Lamp Included | Yes |
Lamp Technology | LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 4000 K |
---|---|
CRI | >80 |
Lumens | 2625 lm |
Wattage | 22 |
Light Colour | Cool White |
Photometric IES | BATS4.IES |
Photometric LDT | BATS4.LDT |
Efficacy (Light source) | 147.56 lm/W |
Lumens (Light source only) | 3370 lm |
LED Batten Light (22W, 4000K) features

230V 4ft 22W LED Batten Light, Cool White 4000K, IP20, 2625lm, Durable Steel and Polycarbonate Design, BATS4
