Aico Ei630iRF RadioLINK+ Battery Heat Alarm – 10-Year Lithium, AudioLINK+ – SKU: Ei630iRF

The Aico Ei630iRF Heat Alarm (SKU: Ei630iRF) is a battery-powered, wireless heat detector designed for environments prone to false alarms from traditional smoke detectors. Ideal for kitchens and garages, this unit is powered by a sealed-in 10-year lithium battery and uses a high-performance thermistor heat sensor that activates at 58°C.

Equipped with RadioLINK+ wireless interconnection and AudioLINK+ diagnostic technology, the Ei630iRF combines long-term reliability, smart functionality, and robust fire safety in a sleek, standalone device. It’s also Grade F1, Kitemarked to BS 5446-2:2003, and compliant with Scottish fire safety legislation.

Key Features:

• Brand: Aico

• Model SKU: Ei630iRF

• Sensor Type: Thermistor (Class A1 Heat Sensor – triggers at 58°C)

• Power Supply: 3V lithium battery (sealed, non-replaceable, 10-year lifespan)

• Wireless Interconnectivity: Built-in RadioLINK+ (connects with other Aico RadioLINK, RadioLINK+ & SmartLINK devices)

• Smart Data Monitoring: AudioLINK+ enabled for real-time diagnostics

• Mounting: Twist-on base with anti-tamper locking and multi-fixings

• Sound Output: 85dB at 3 metres

• Certifications:

  • Kitemarked to BS 5446-2:2003

  • Grade F1 (Battery-powered heat alarm)

  • Scottish legislation compliant

• LED Indicators:

  • Power-up: Red & Amber

  • Testing/Alarm/Memory: Red

  • Fault: Amber

  • RF Transmission: Blue

• Operating Range:

  • Temperature: -10°C to +40°C

  • Humidity: 15%–95% RH

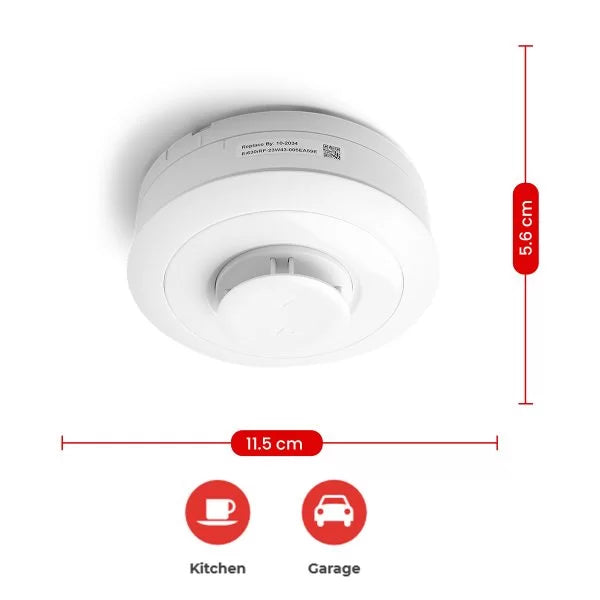

• Dimensions: 115mm x 55mm (product), 121mm x 63mm x 148mm (packaged)

• Weight: 0.215kg (product), 0.255kg (packaged)

• Warranty: 5-year limited

Designed for High-Risk Heat Environments

Unlike optical smoke detectors, the Ei630iRF is triggered by heat buildup rather than smoke particles. This makes it ideal for kitchens, where cooking fumes can frequently cause false alarms, or garages, where exhaust fumes or dust may interfere with traditional smoke sensors.

When the air temperature reaches 58°C, the thermistor sensor activates the alarm, providing a loud and immediate 85dB warning. This ensures reliable fire detection in areas where smoke-based alarms are unsuitable.

Seamless Wireless Interconnection with RadioLINK+

Thanks to RadioLINK+, the Ei630iRF wirelessly communicates with up to 12 other compatible Aico devices. In the event of an alarm trigger, all connected units sound simultaneously—alerting residents throughout the entire property, regardless of where the fire starts.

Installation is simple and does not require hardwiring. The alarms can be House Coded during setup to ensure secure communication within a system, making it ideal for retrofitting older homes, rental properties, or multi-storey houses.

Real-Time Monitoring with AudioLINK+

With AudioLINK+, users can extract critical performance data using a smartphone or tablet. Through the app, the alarm transmits acoustic signals that translate into a detailed health report, showing:

• Alarm activation history

• Battery status and remaining life

• Sensor condition and fault logs

• Test frequency and memory events

This functionality is invaluable for landlords, housing managers, and compliance officers needing audit trails and routine diagnostics without removing the alarm from its mounting base.

Example Use Case: Fire Protection in a Residential Kitchen

In a modern family home, the kitchen is a common site for high heat and potential fire hazards—such as oven malfunctions, grease fires, or appliance faults. Installing the Ei630iRF in this space ensures accurate detection without nuisance triggers from cooking smoke or steam.

If a fire breaks out while cooking, the rising temperature quickly activates the heat alarm. The RadioLINK+ feature ensures other alarms in the hallway or bedrooms also sound, alerting everyone in the house. After the event, the homeowner can use AudioLINK+ to generate a full report of the activation and check the alarm’s ongoing status.

The Aico Ei630iRF RadioLINK+ Heat Alarm (SKU: Ei630iRF) is a smart, maintenance-free solution for targeted fire protection in heat-prone areas. Combining 10-year battery life, wireless interconnectivity, and diagnostic intelligence, it delivers premium safety, compliance, and convenience in one compact unit.
