Product Overview & Key Benefits

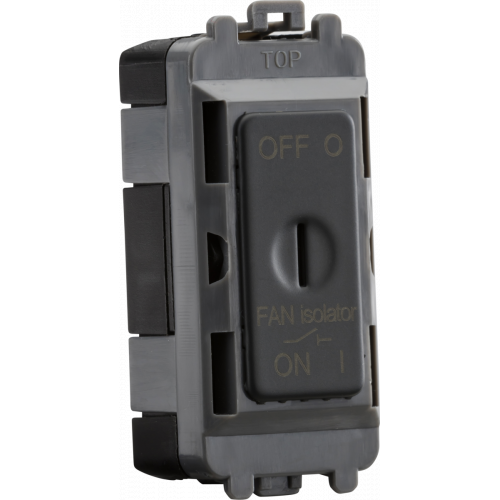

The 10A Fan Isolator Key Switch Module in an elegant Anthracite finish is designed specifically for the safe and secure electrical isolation of fan appliances. By utilising a key switch operation, this module empowers users with the ability to prevent unauthorized operation, making it a perfect choice for both residential and commercial use. Ideal for DIY enthusiasts and professional contractors alike, it ensures compliance with UK safety regulations while delivering reliable performance.

Technical Specifications & Product Details

• Rating:10A
• Operation:Triple Pole for enhanced safety
• Key Switch Operation:Prevention of unauthorized use (key included)
• Engraved Feature:FAN ISOLATOR designation for clarity
• Conditional Short Circuit Current:Rated at 1500A
• Compatibility:Fits Knightsbridge Grid system
• Finish:Anthracite
• IP Rating:IP20
• Construction:Robust ABS and steel materials

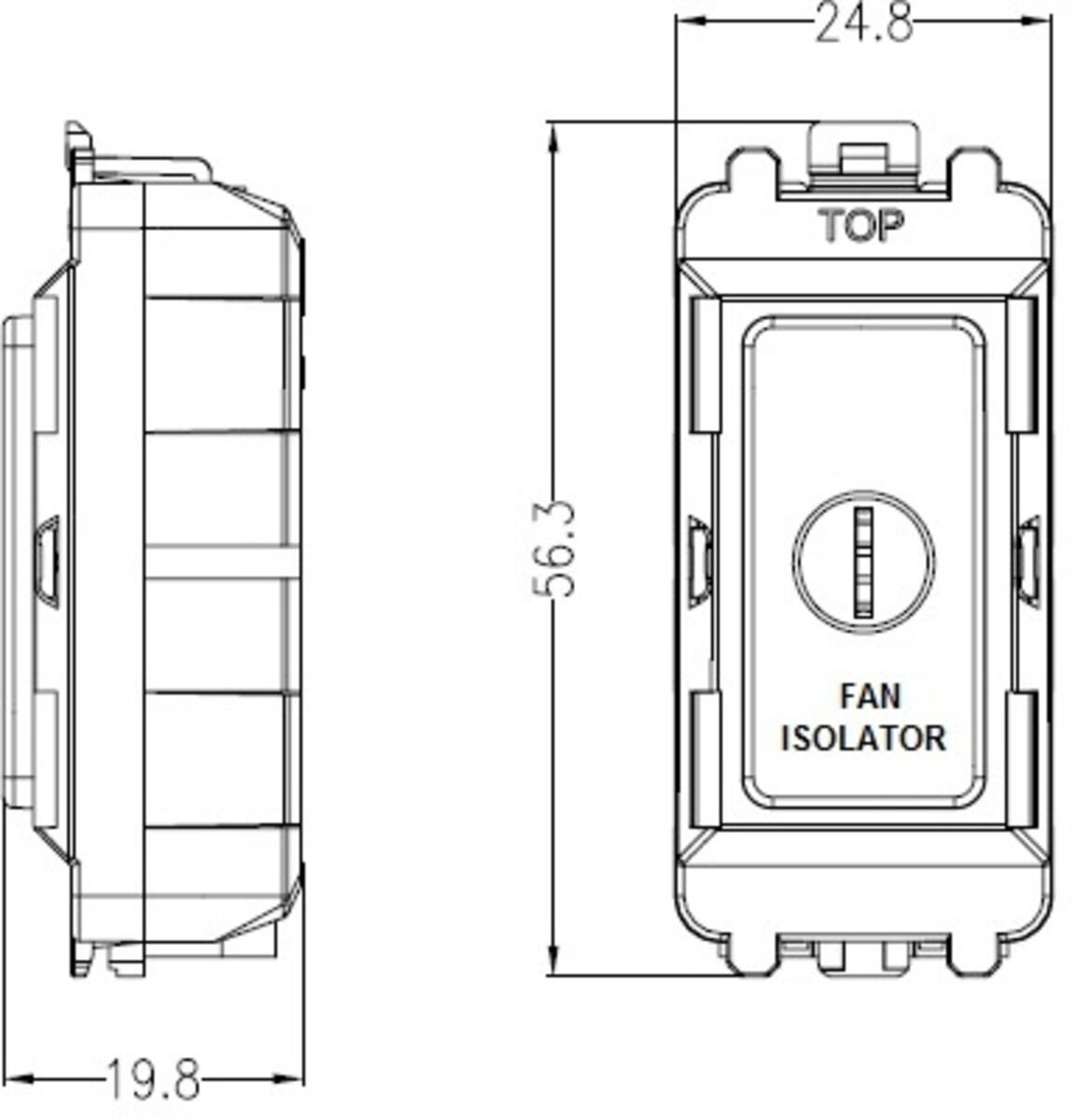

• Dimensions:Width: 24.8mm, Height: 56.3mm, Depth: 23.7mm, Recessed Depth: 17.3mm, Minimum Mounting Box Depth: 35mm
• Primary Voltage:230V 50Hz
• Weight:0.25kg

Ideal Uses & Applications

This product is suitable for various settings, from domestic DIY projects to commercial applications such as offices, hotels, and public buildings. Particularly beneficial for areas where fan appliances are frequently utilised, it enhances operational safety by isolating electrical connections when required.

Energy Efficiency & Cost Savings

While primarily focused on safety and functionality, the 10A Fan Isolator Key Switch Module also contributes to energy efficiency by allowing users to easily isolate appliances, which can help reduce electricity consumption and costs over time.
