TP-Link VIGI 4-Channel PoE+ Network Video Recorder – 4K HDMI Output, 80Mbps Bandwidth | SKU: VIGI NVR1004H-4P

VIGI NVR1004H-4P – 4-Channel PoE+ Network Video Recorder by TP-Link
SKU: VIGI NVR1004H-4P

Secure your business around the clock with the VIGI NVR1004H-4P, a powerful and compact 4-channel PoE+ Network Video Recorder designed by TP-Link. Tailored for small to medium-sized businesses, retail shops, offices, and remote locations, this NVR combines high-resolution surveillance with simplified installation and intuitive monitoring.

Crystal-Clear Video with Powerful 4K HDMI Output

Capture every critical detail from every angle with support for up to 8MP resolution and a 4-channel live display. The NVR1004H-4P’s 4K HDMI video output ensures sharp and vivid visuals on compatible displays, making it easier to identify subjects, track incidents, and enhance situational awareness in real time.

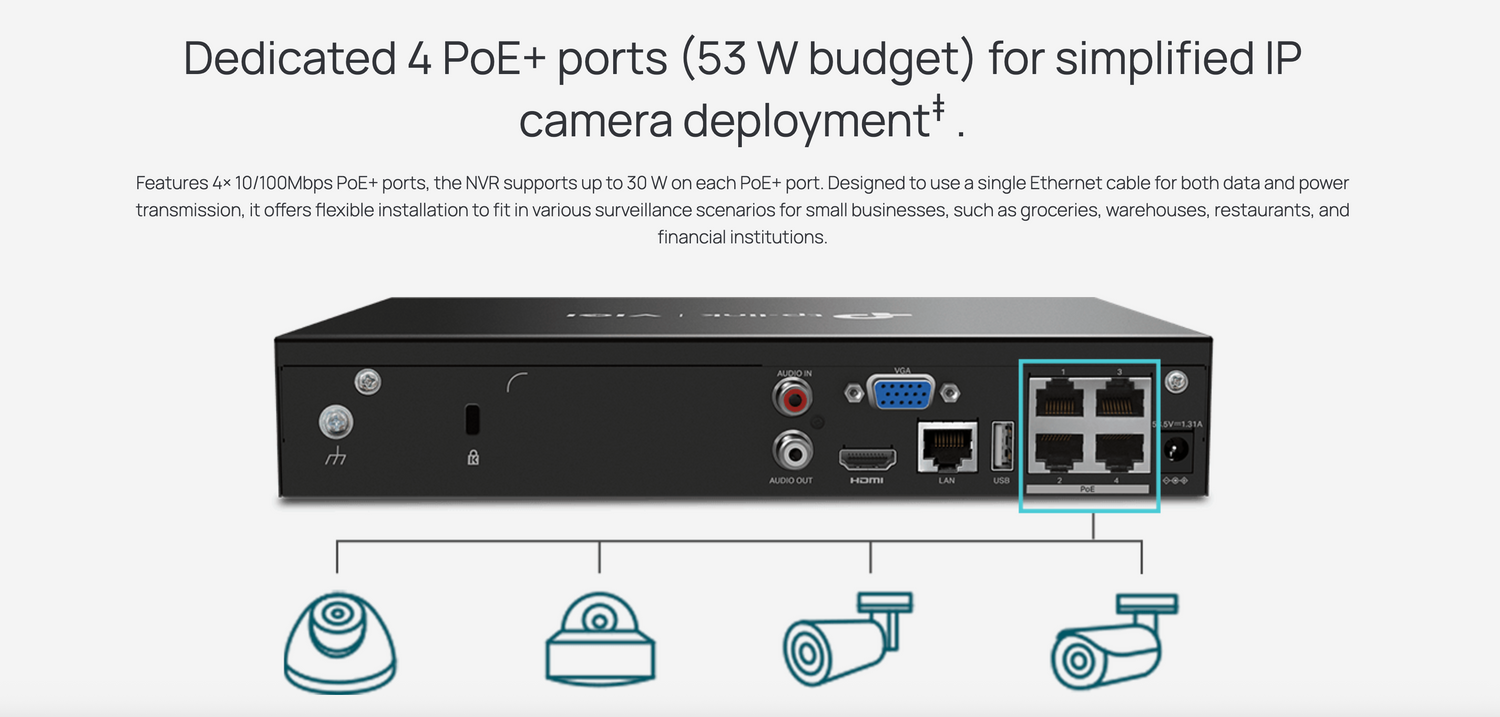

Simplified Deployment – Built-In 4× PoE+ Ports

Installation is effortless with four built-in PoE+ (Power over Ethernet) ports, each capable of delivering up to 30W, with a total PoE budget of 53W. This eliminates the need for separate power sources for IP cameras. Using a single RJ45 cable per camera, you can transmit both power and video, significantly reducing wiring complexity and cost.

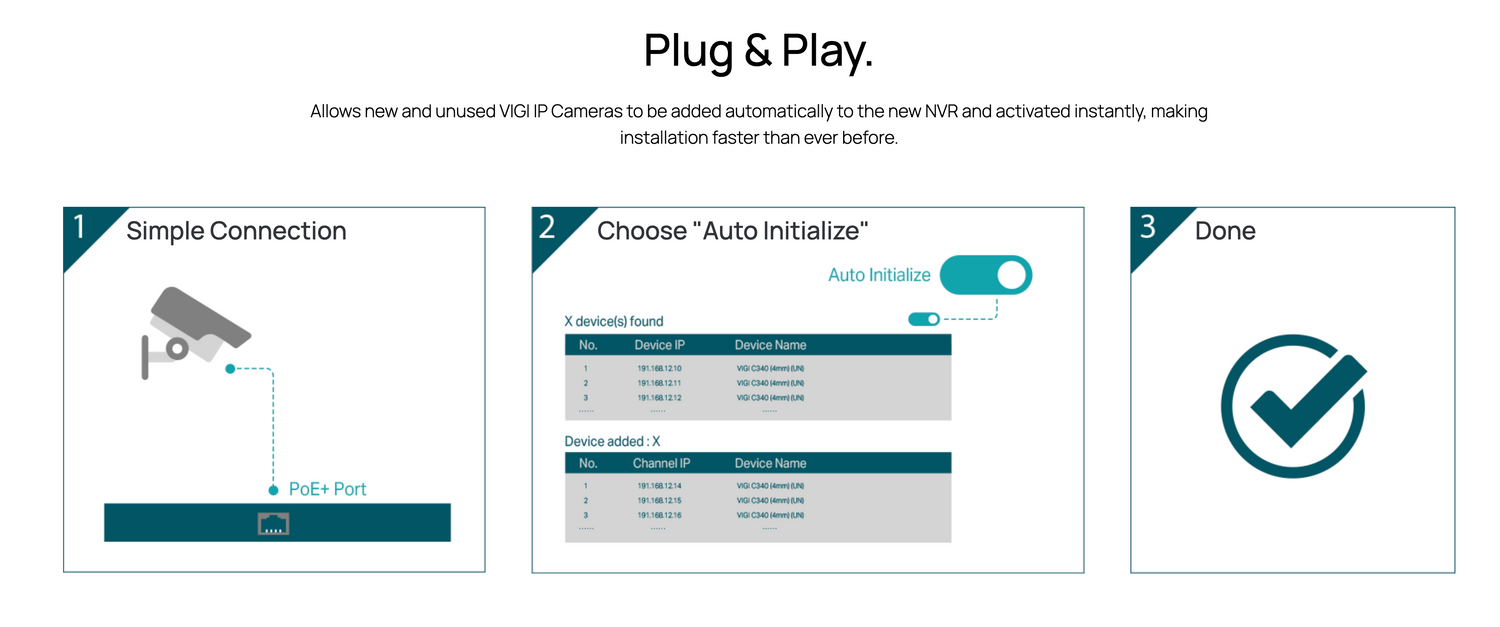

Plug & Play Auto Detection – Instant Camera Pairing

Enjoy seamless integration with VIGI and compatible ONVIF-compliant IP cameras. With plug-and-play functionality, unused VIGI cameras are automatically detected and activated upon connection. This makes the system ideal for rapid deployments or scaling an existing surveillance setup.

Reliable Video Storage – 16TB Capacity & 24/7 Recording

Store and access vast amounts of footage without worry. The VIGI NVR1004H-4P supports continuous 24/7 recording, with up to 16TB storage capacity via an internal SATA HDD (not included). This ensures you have immediate access to critical footage spanning days, weeks, or months—ideal for incident review or compliance needs.

Advanced Playback & Event Search

Review surveillance footage faster with 4-channel simultaneous playback and smart search features. Locate events easily using the intuitive video timeline and speed up replay to quickly analyze incidents or suspicious activities.

Smart Video Compression – H.265+ Technology

Equipped with H.265+ smart video compression, the NVR transmits and stores high-definition footage using less bandwidth and disk space. This results in lower storage costs and faster video streaming without compromising on image quality.

Full Compatibility – ONVIF Protocol Support

Thanks to ONVIF compliance, this NVR works seamlessly with both TP-Link VIGI cameras and a broad range of third-party IP cameras. Whether you’re expanding a mixed-brand security system or starting fresh, compatibility is guaranteed.

Remote Monitoring from Anywhere

Stay connected with your business using the VIGI app, web UI, or VIGI Security Manager. Remotely access live feeds, playback footage, receive alerts, and configure settings on the go—perfect for business owners and security staff who need real-time access from anywhere.

Two-Way Audio Communication

With support for two-way audio, this NVR allows you to communicate in real time via supported cameras. Ideal for reception areas, entrances, or staff monitoring, it enhances on-site management and visitor interaction.

Built for Small Business Security

Whether you’re protecting a retail store, warehouse, restaurant, or office, the VIGI NVR1004H-4P provides the tools you need for a professional-grade security setup. Its robust features, reliable build quality, and straightforward deployment help you secure your premises efficiently and cost-effectively.

Key Specifications:

• SKU: VIGI NVR1004H-4P

• Channels: 4

• Video Output: 4K HDMI

• PoE Ports: 4× PoE+ (30W per port, 53W total)

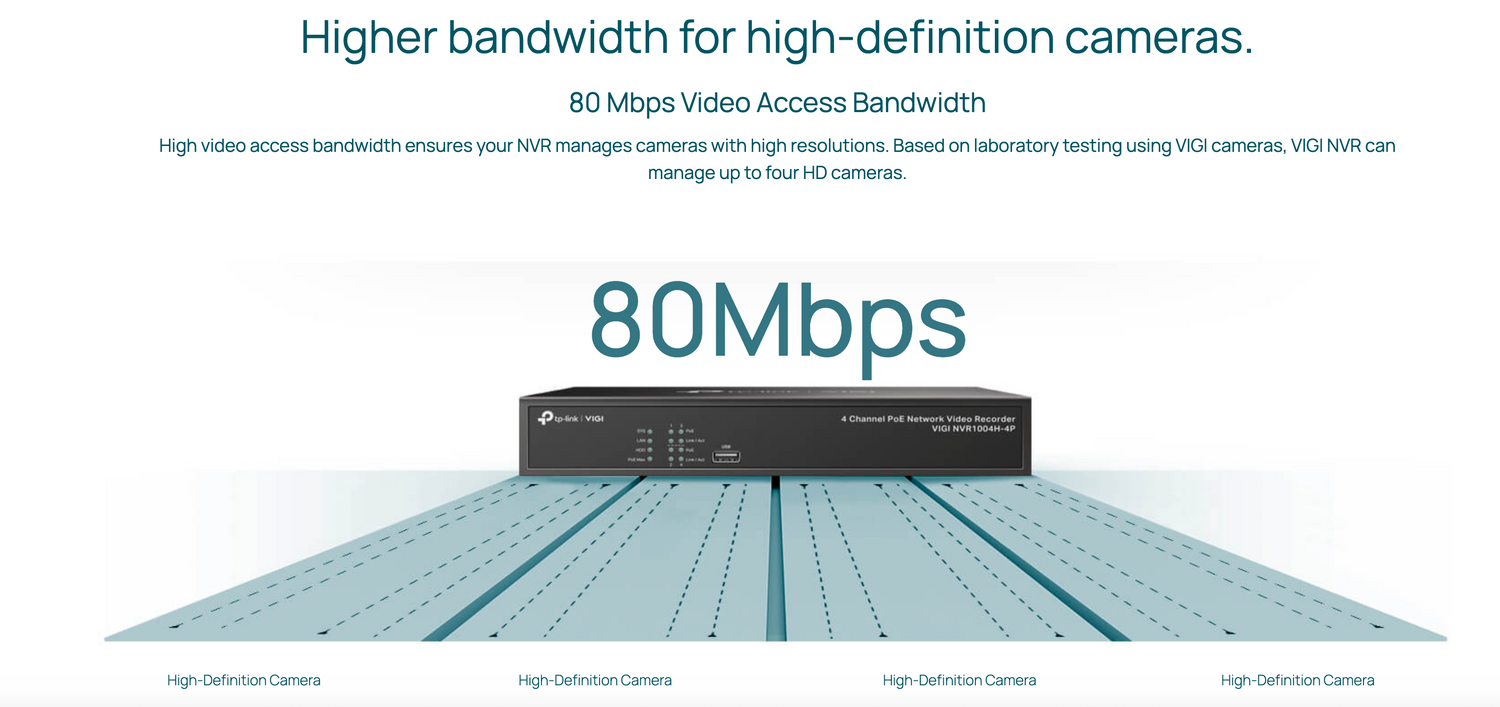

• Video Access Bandwidth: 80 Mbps

• Storage: Supports up to 16TB

• Compression: H.265+

• Remote Access: VIGI App, Web UI, VIGI Security Manager

• Audio: Two-Way Audio Support

• Compatibility: ONVIF Compliant

• Use Case: Small businesses, shops, restaurants, financial institutions

Upgrade to the VIGI NVR1004H-4P and experience powerful, scalable, and secure surveillance tailored to your business.
