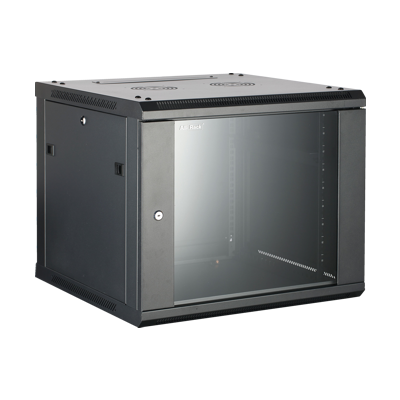

WME: CAB9WB450BLK, 9U Wall Mount Data Cabinet, 450mm Deep, 40KG Capacity, Mild Steel, Black
About this product
All-Rack wall mount data racks and network cabinets are designed to be your perfect solution for all your rack mountable equipment.
- Available in the following depths: 300mm (only available in 4u & 6u), 450mm, 550mm & 600mm ideal for small network installations where floor space doesn’t allow for a floor standing server cabinet.
- Perfect for single person installation with easy mounting brackets.
- Loading Capacity: 40KG.
- Doors: 180 degree opening angle, can be mounted on left & right hand side with simple spring latch.
- Security: Lockable doors and side panels for added safety.
- Ventilation: Optional fan can be fitted if required.
- Material: 1.2mm mild steel construction with toughened glass panel in steel framework door.
- Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19” patch panels, switches and other equipment.
- Cable Entry: Cable access points on the lid and base of cabinet.
For more detailed specifications, please refer to the specification sheet.
-
Download
- CAB9WB450BLK spec
Specifications
Features
Specifications
ITM No. | ITM001161 |
---|---|
Manufacturer | All Rack |
Product Type | Wall Mount Data Cabinet |
Features
Loading Capacity | 40 KG |
---|---|
Mounting Option | Left or Right Hand |
Material | 1.2mm Mild Steel |
Ventilation Option | Optional Fan |
9U Black Wall Mount Data Cabinet 450mm Deep features

WME: CAB9WB450BLK, 9U Wall Mount Data Cabinet, 450mm Deep, 40KG Capacity, Mild Steel, Black
