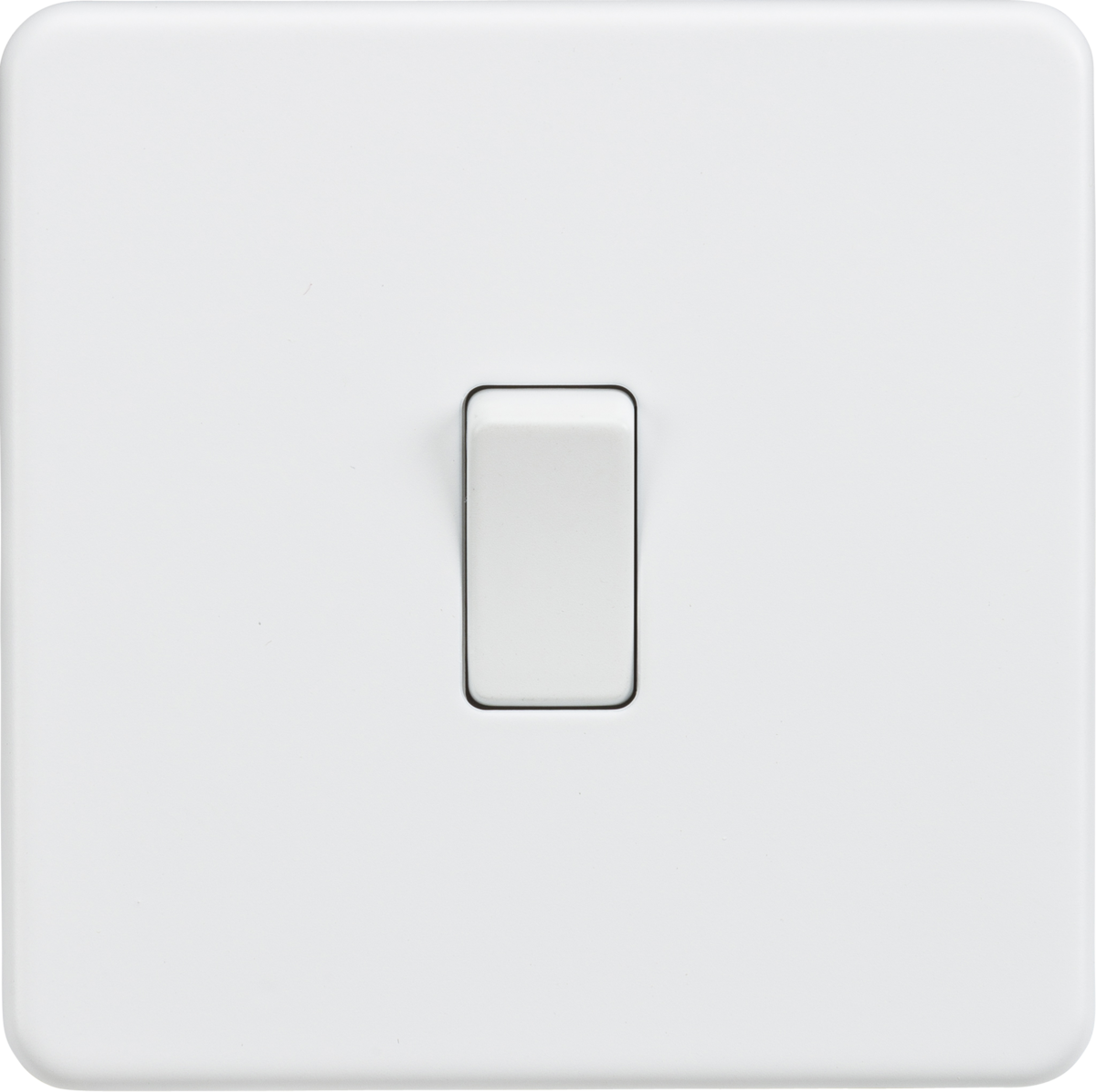

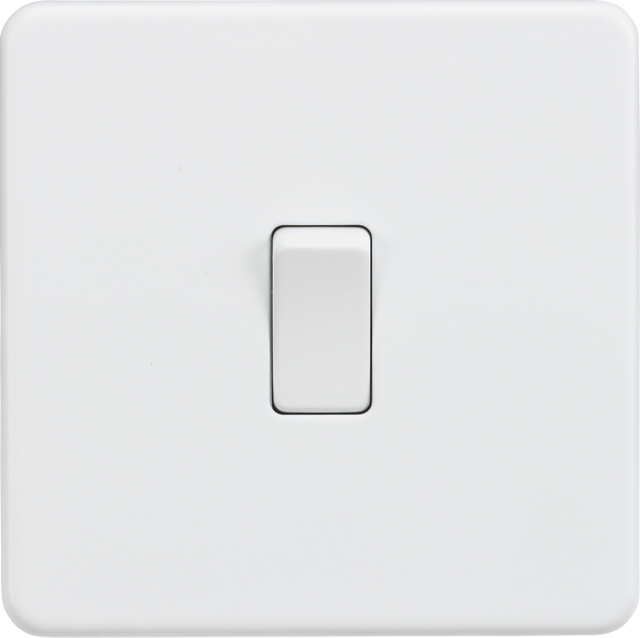

Knightsbridge: SF1200MW, 10AX 1G Intermediate Switch, Screwless Design, Matt White, 230V, IP20
About this product
The 10AX 1G Intermediate Switch in Matt White is designed for seamless control of your lighting across multiple locations. Perfect for staircases or landings with three switches controlling one light, this switch ensures smooth functionality.
- 10AX rated for safety and efficiency
- Screwless low profile design with built in gasket for a sleek finish
- Certified to EN 60669-1 for quality assurance
- Requires a minimum mounting box depth of 16mm
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt White |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

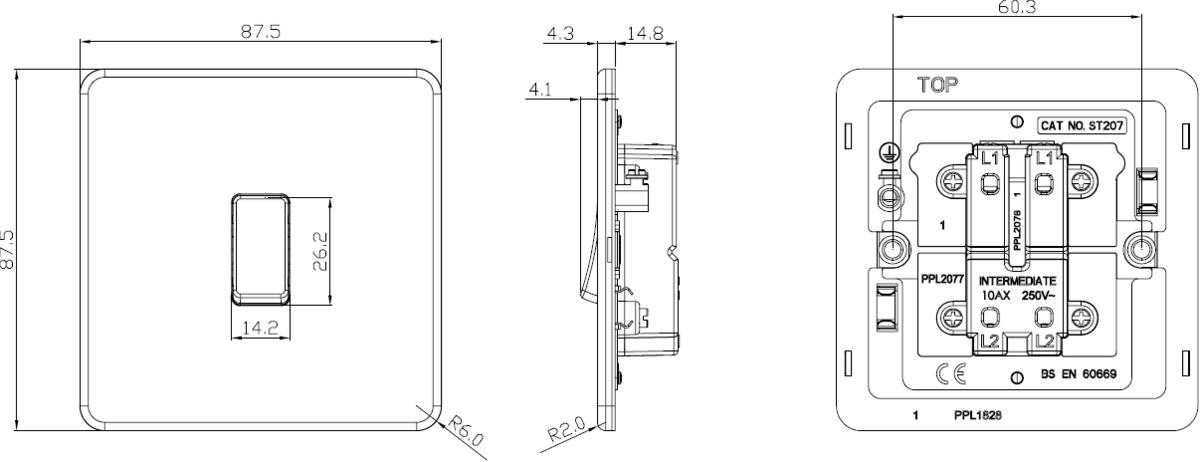

Dimensions
| Depth | 21.6 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 8.4 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 13.2 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
10AX 1G Intermediate Switch features
