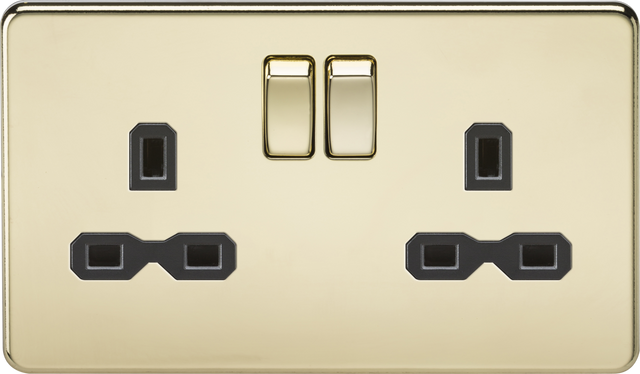

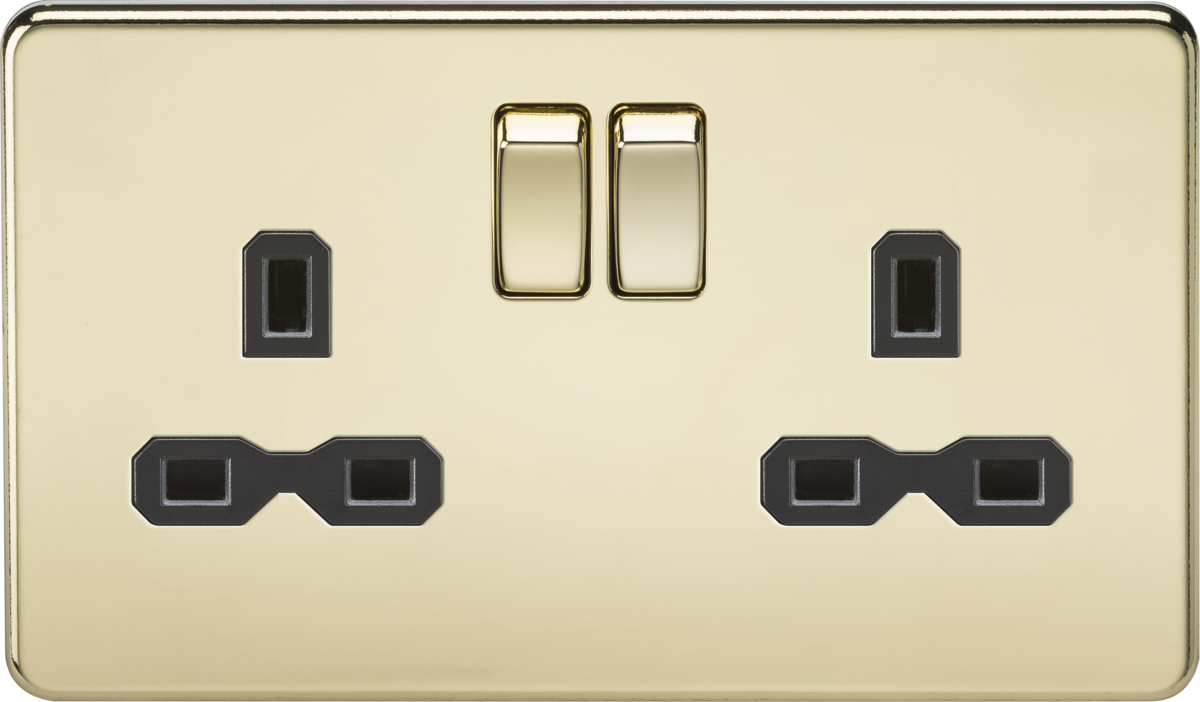

Knightsbridge: SFR9000PB, 13A 2G DP Switched Socket, Screwless Low Profile, Polished Brass, Black Insert, BS 1363:2, IP20
About this product
The 13A 2G DP Switched Socket with Twin Earths in Polished Brass with Black Insert is not only functional but also adds a modern touch to your home. With its flawless screwless low profile design and matching metal rockers, it is perfect for any contemporary setting.
- 13A 2G Switched Socket
- Double Pole Switches
- Fitted with twin earth terminals
- Screwless low profile design with built-in gasket
- Certified to BS 1363:2
- Minimum mounting box depth of 25mm
This socket is class I rated, with an IP20 rating and constructed from 201 stainless steel, ensuring both durability and safety. The socket is designed for standard 230V 50Hz operation, making it a suitable choice for various electrical applications.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

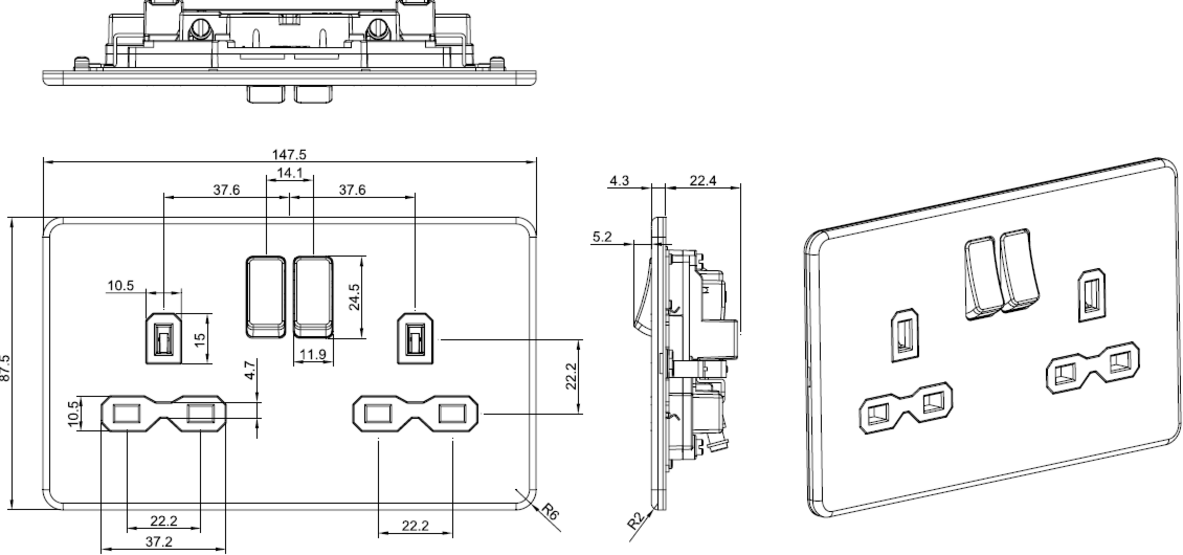

Dimensions
| Depth | 31.9 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 9.5 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 22.4 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
Switched Socket, Polished Brass Finish features
