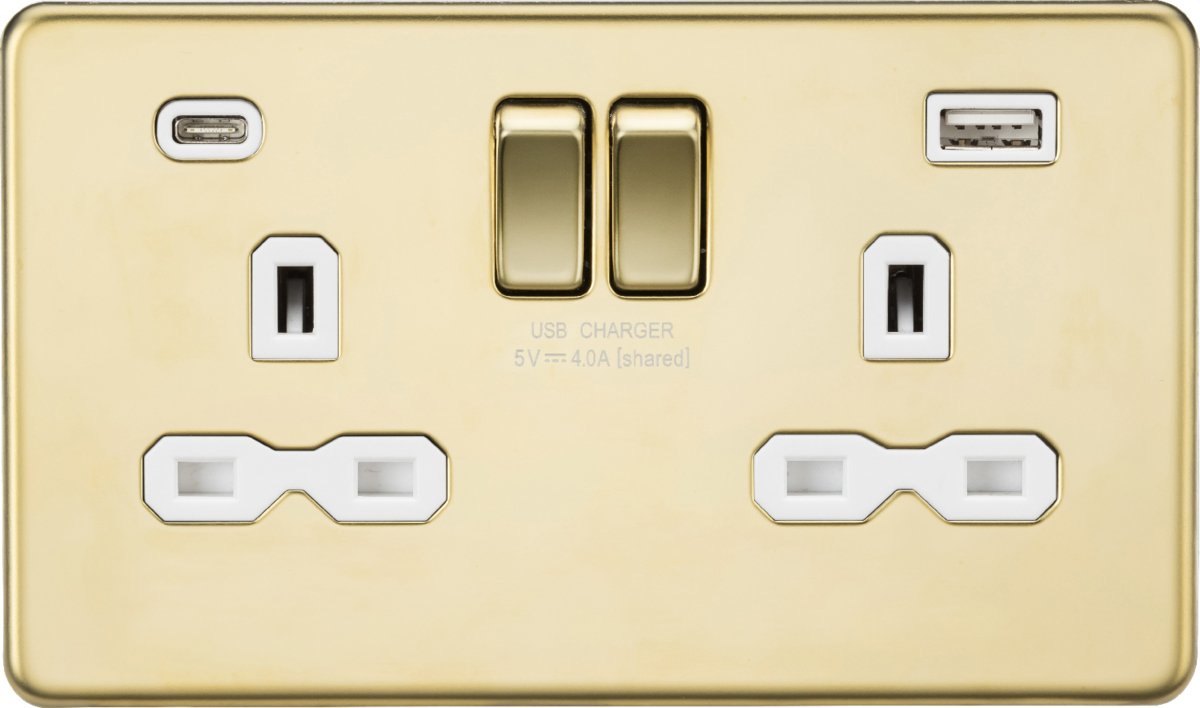

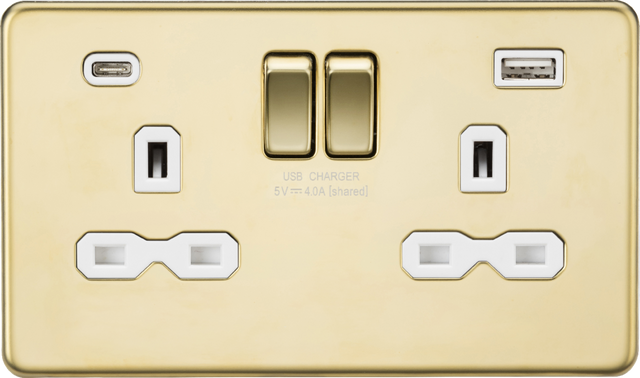

Knightsbridge: SFR9940PBW, Polished Brass 13A 2G Switched Socket, Dual USB A+C, 5V 4.0A, Screwless Design
About this product
This charger socket is a great finishing touch to any modern home. Designed with a screwless low profile metal structure featuring matching metal rockers.
- 13A Switched sockets
- Dual USB C+A 5V DC 4.0A [shared]
- Screwless low profile design with built-in gasket
- Minimum mounting box depth 25-35mm*
Important Notes: Use certified USB cables for safety and compatibility. Ensure compliance with UK standards.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

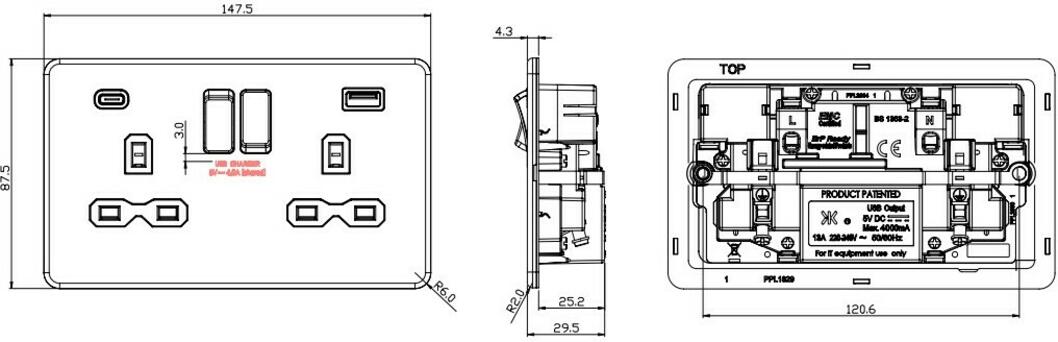

Dimensions
| Depth | 34.5 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 9.3 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 25.2 mm |
| Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
Wiring-accessories
| Earth Terminal | Yes |
|---|
13A 2G SP Switched Socket with Dual USB features
