Knightsbridge: SF2191BN, 1G 2-Way Intelligent Dimmer, 10-200W (5-150W LED), Black Nickel, Screwless Design, 230V
About this product

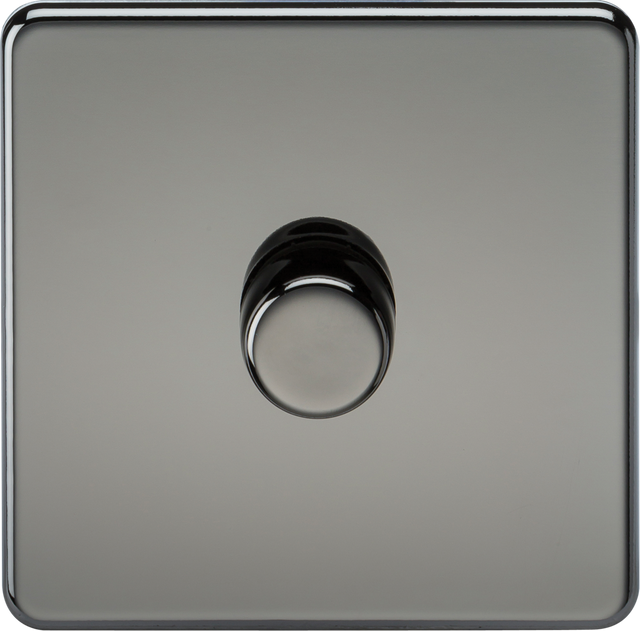

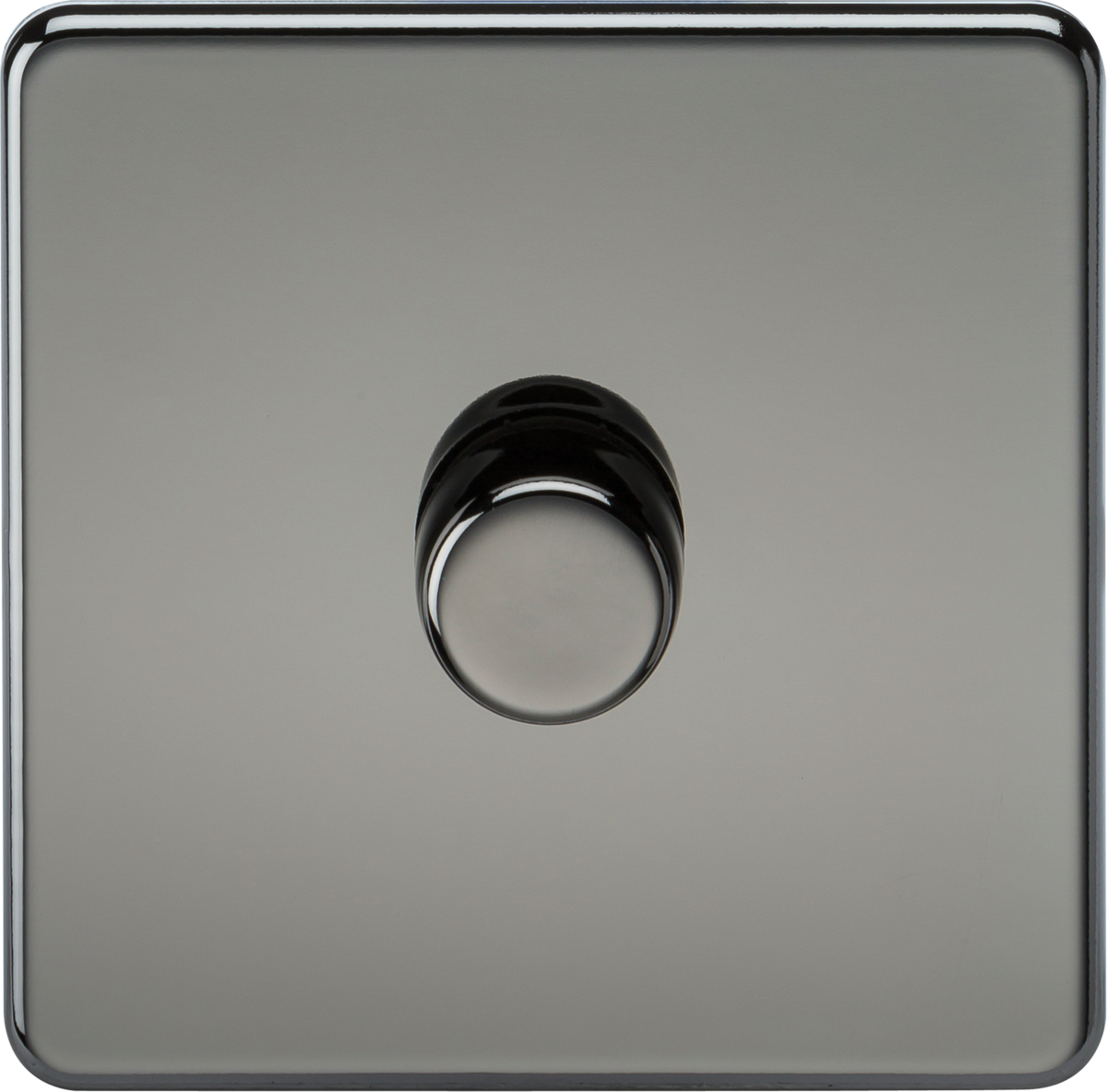

The 1G 2-way 10-200W (5-150W LED) Intelligent Dimmer in Black Nickel is the perfect finishing touch to any modern home. Crafted with a flawless screwless low profile metal design, it adds a stylish touch while ensuring functionality.
- Switch between Trailing-edge and Leading-edge modes for compatibility with various lamp types.
- Trim, switch modes, and reset dimmer easily using the front control knob.
- Features a push On/Off and rotary dimming action for user convenience.
- Safe for use with dimmable lamps only; includes overload and overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Note: DO NOT USE IN A MIXED ENVIRONMENT (different brands or wattages of lamps in the same fitting).
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Black Nickel |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

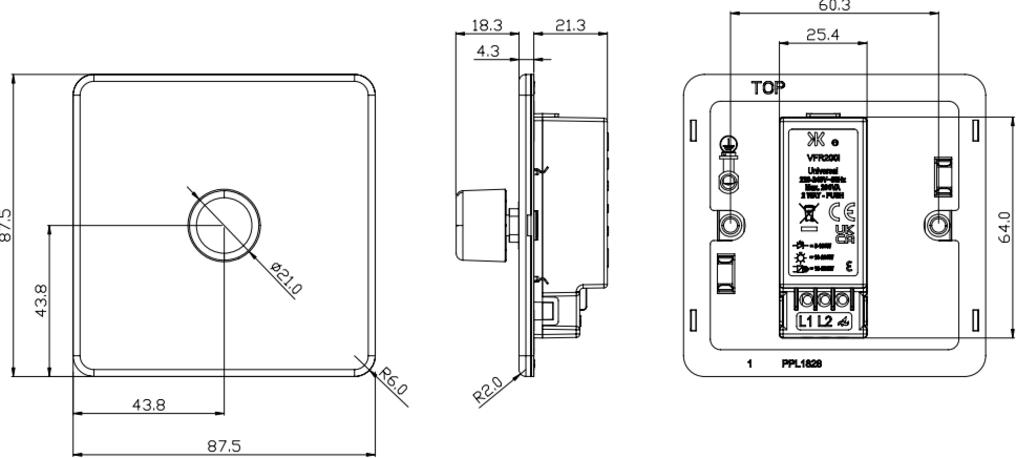

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer, 1G 2-Way, Black Nickel features
Knightsbridge: SF2191BN, 1G 2-Way Intelligent Dimmer, 10-200W (5-150W LED), Black Nickel, Screwless Design, 230V
