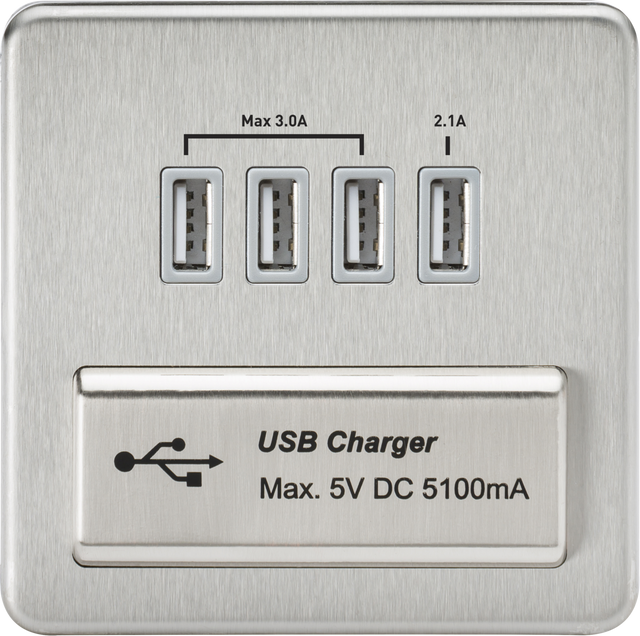

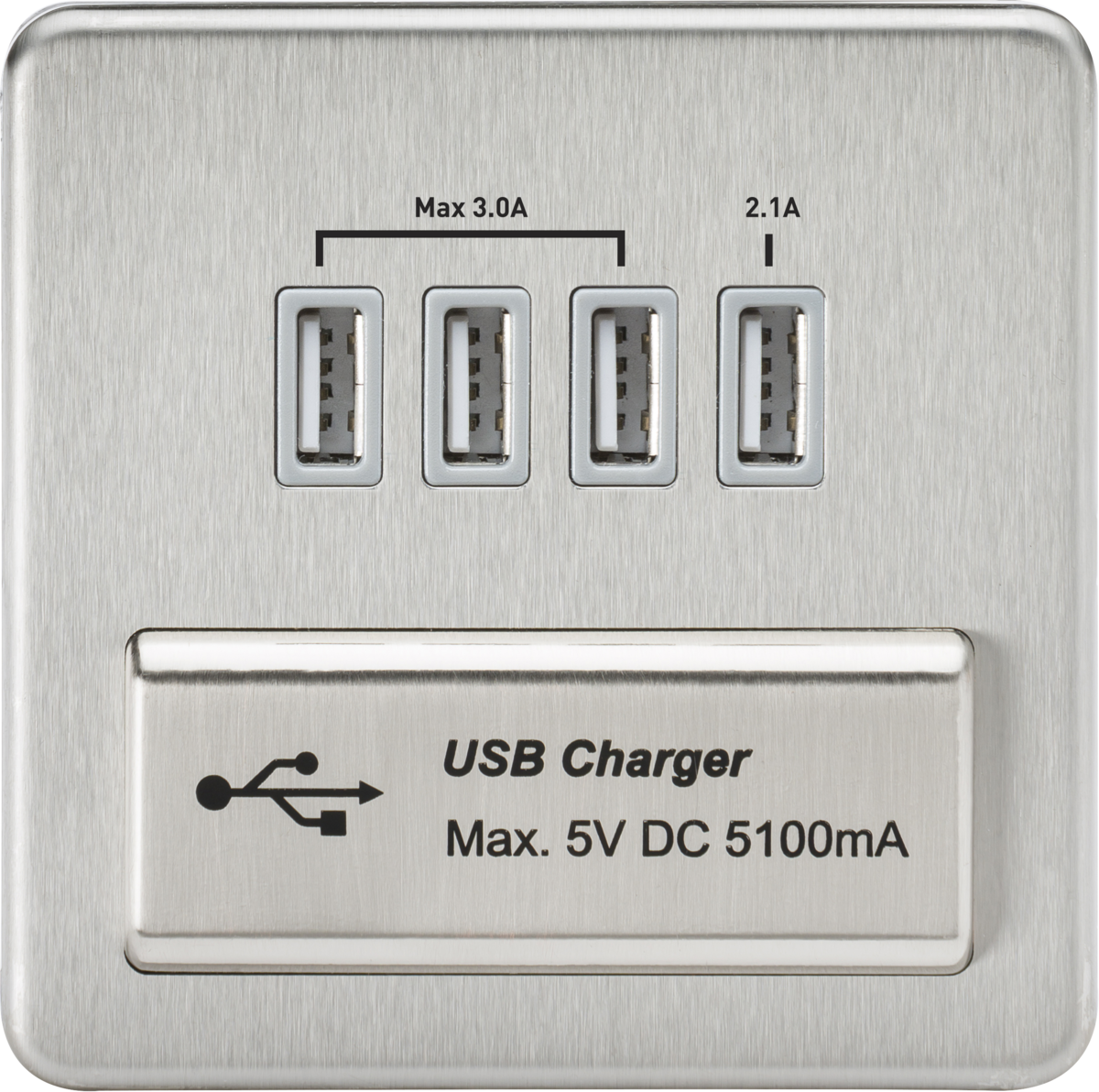

Knightsbridge: SFQUADBCG, Quad USB Charger Outlet, 230V, 5V 5.1A, Dedicated 2.1A for Tablets, Screwless Low Profile, Brushed Chrome
About this product
This 230V Quad USB-A Charger Outlet is the perfect solution for multiple users, providing a dedicated charging hub in a sleek brushed chrome finish.
- Quad USB Charging with 5V DC 5.1A (shared)
- Features a dedicated 2.1A outlet for tablets
- Three outlets sharing 3A, ideal for smartphones and other devices
- Screwless low profile design with built-in gasket for clean installation
- Certified to BS EN 60670 and EN 60950-1 standards
- EMC Certified and ErP Ready for energy efficiency
- Minimum mounting box depth required is 25-35mm
We recommend using certified USB cables for safety and compatibility.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt White |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

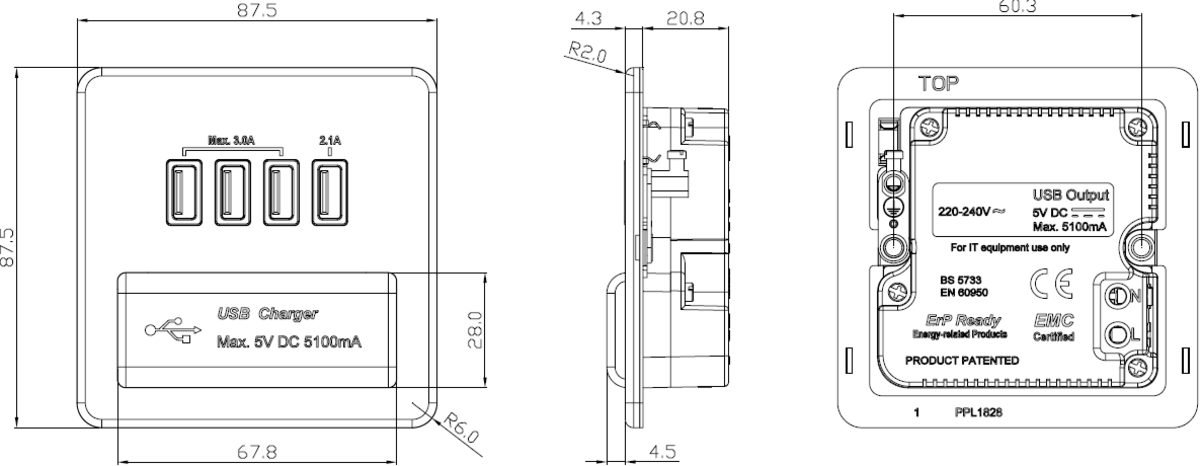

Dimensions
| Depth | 25.1 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 4.3 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 20.8 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
Quad USB Charger Outlet with Brushed Chrome Finish features
