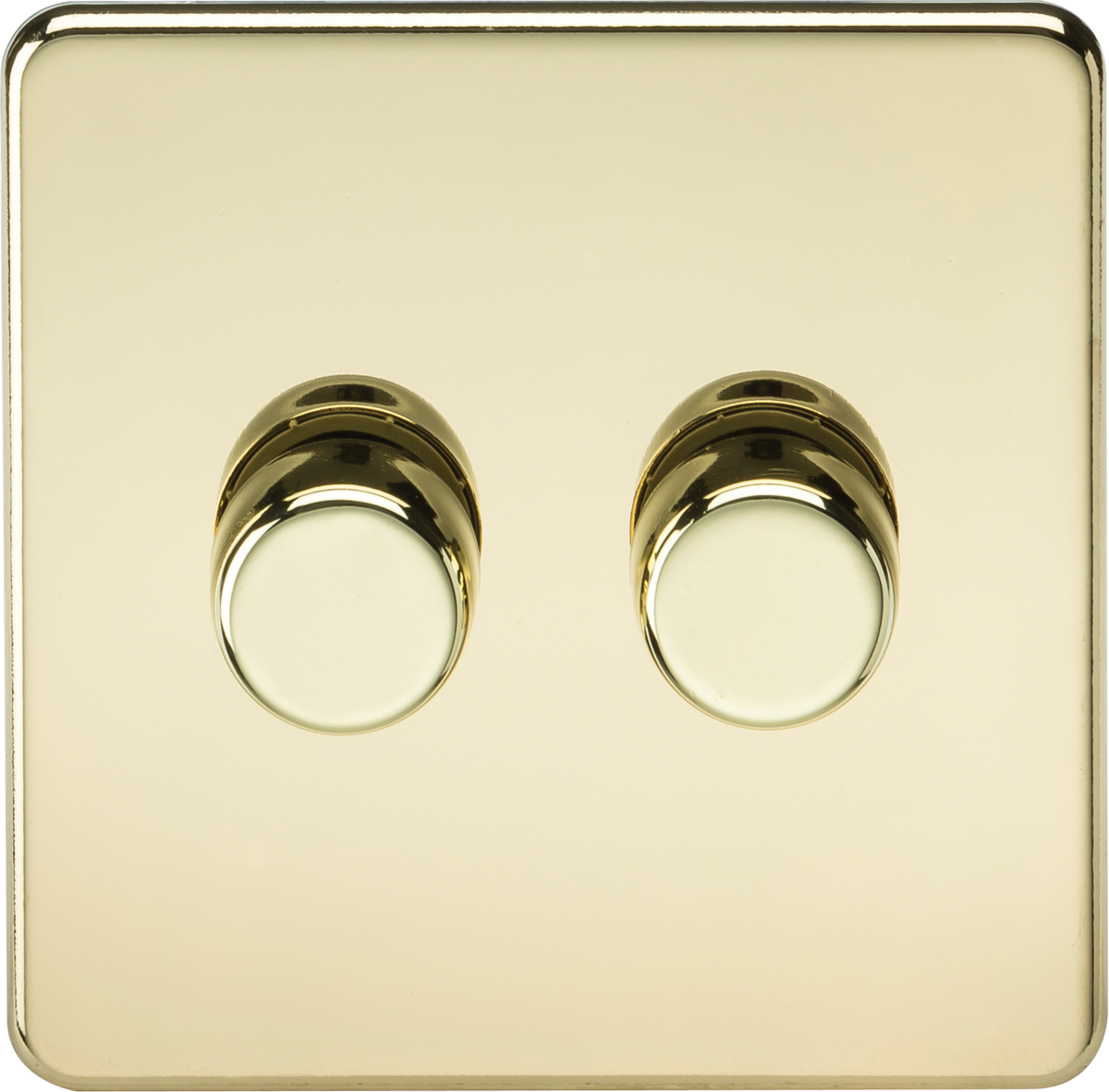

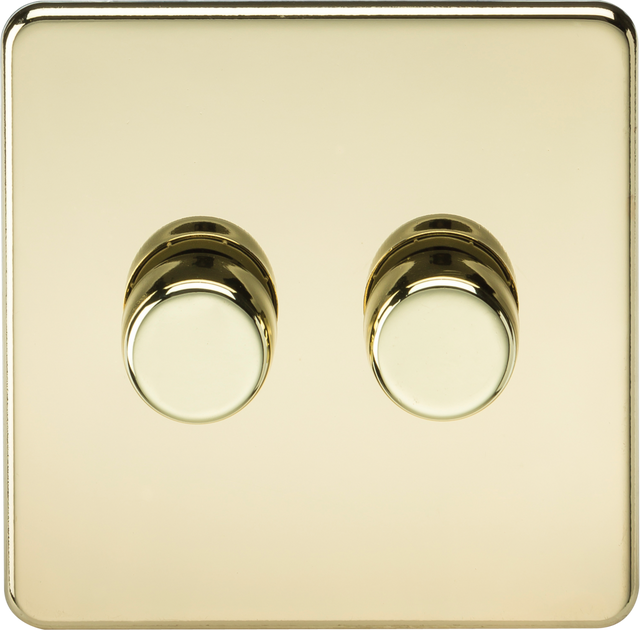

Knightsbridge: SF2192PB, 2G 2-Way Intelligent Dimmer, 10-200W, Polished Brass, Screwless Design, Control Knob
About this product
Perfect finishing touch to any modern home, flawless Screwless low profile metal design with matching dimmer caps.
NB: DO NOT USE IN A MIXED ENVIRONMENT i.e. difference brands of lamps or different wattages of lamps in same fitting.
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps.
- Push On/Off, rotary dimming action
- Preset in Trailing-edge mode
- 10-200W (5-150W LED)
- Suitable for use with dimmable lamps only
- Overload and Overheat protection
- Fitted with an Inrush Current Limiter (ICL)
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

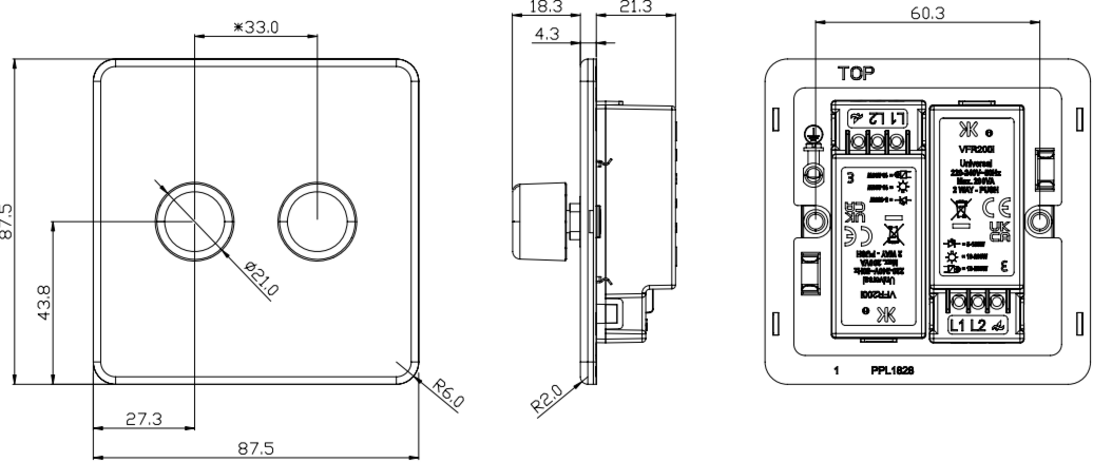

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer - Polished Brass features
