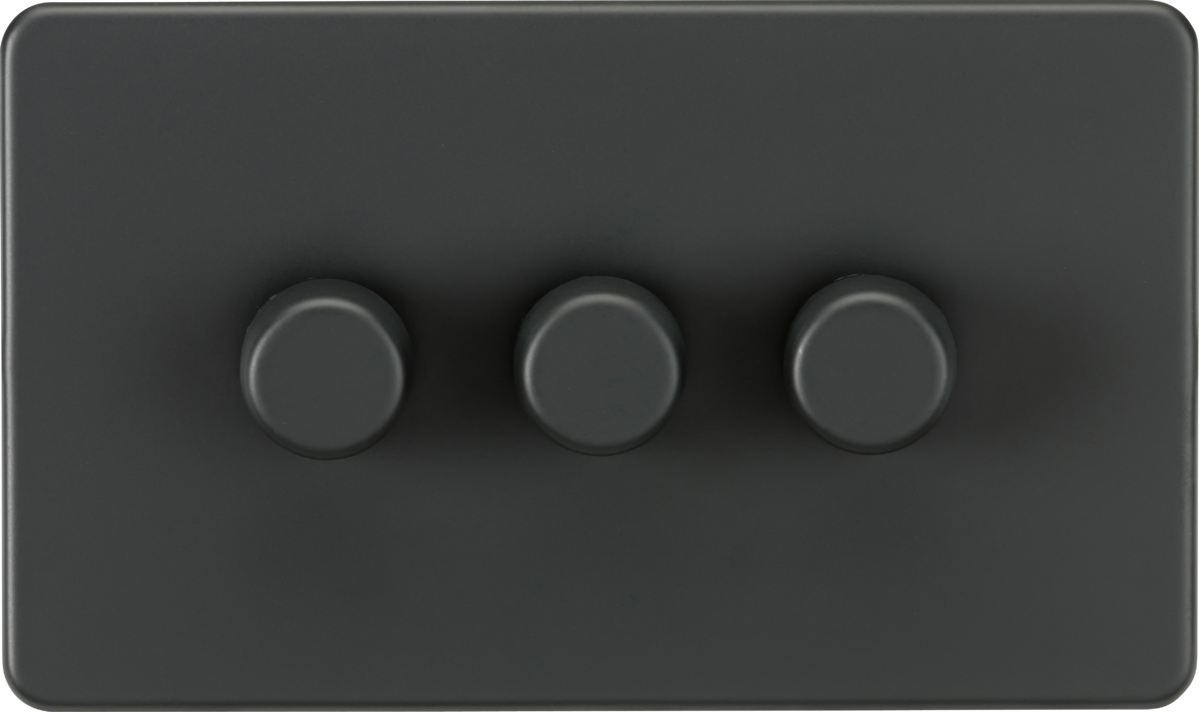

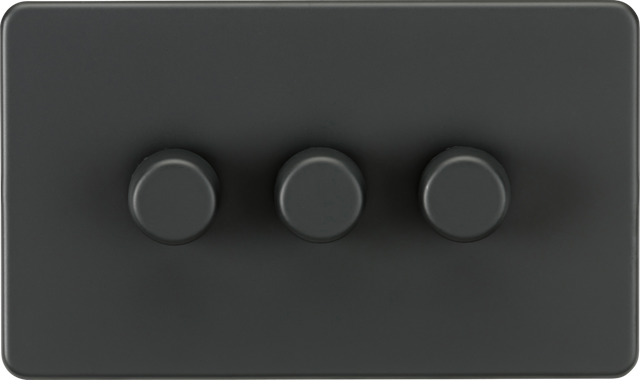

Knightsbridge: SF2193AT, 3G 2-Way Intelligent Dimmer Switch, Anthracite Finish, 10-200W, LED Compatible, Screwless Design, 230V 50Hz
About this product
The 3G 2-way Intelligent Dimmer in Anthracite provides the perfect finishing touch to any modern home with a sleek, screwless low profile design.
- Switch between Trailing-edge and Leading-edge modes for high compatibility.
- Control knob enables easy trimming, mode switching, and resetting right from the front.
- Push On/Off functionality with rotary dimming.
- Designed for use with dimmable lamps only.
- Features overload and overheat protection for safety.
- Fitted with an Inrush Current Limiter (ICL) to manage current spikes.
Note: Do not use in a mixed environment with different brands or wattages of lamps in the same fitting.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Anthracite |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

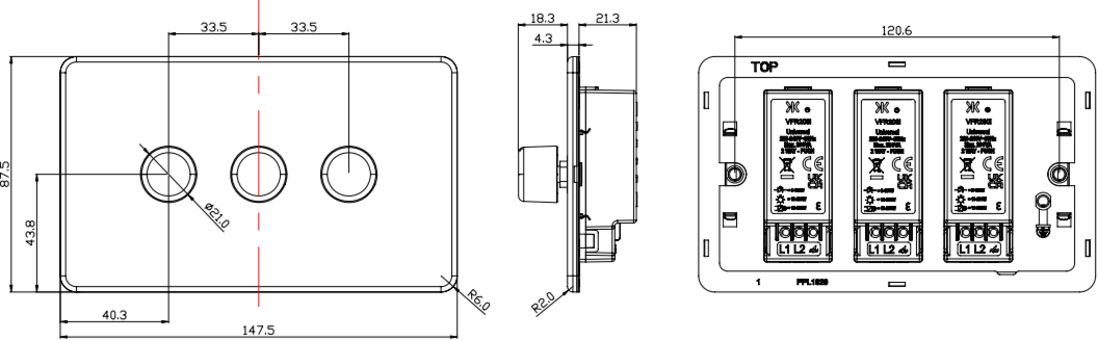

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
3G 2-Way Intelligent Dimmer - Anthracite features
