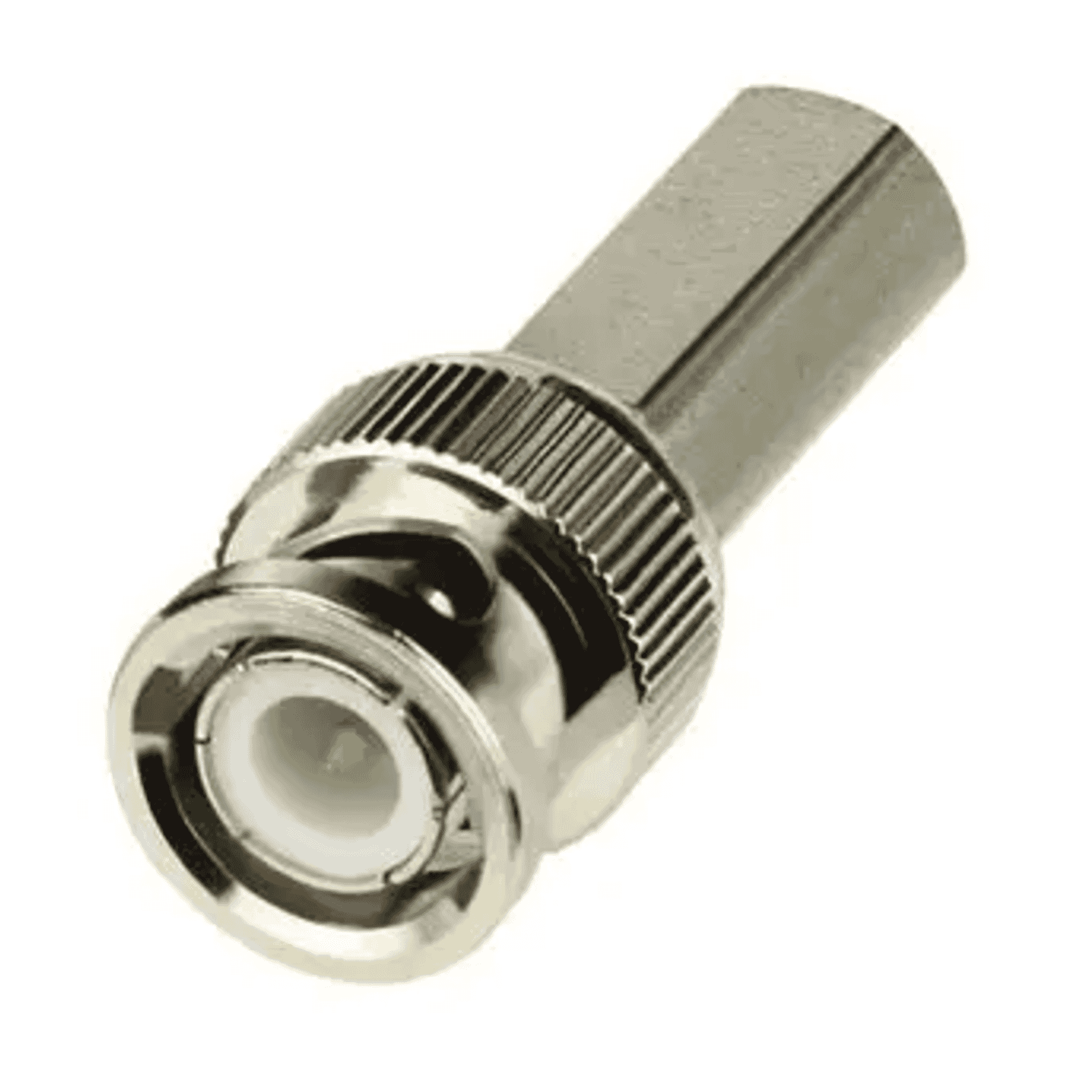

FS-BNCTWIST BNC Male Twist‑On Connector, 75 Ω RG59, 10‑Pack

Introduction: FS-BNCTWIST BNC Male Twist‑On Connector (RG59, 10‑Pack)

The FS-BNCTWIST is a 10‑pack of BNC male twist‑on connectors designed for RG59 coaxial cable. Engineered for CCTV and general video applications, these connectors deliver a quick, tool‑free method for terminating RG59 cable runs in the field. Key characteristics include a true 75 Ω design, gold‑plated centre contact, brass body construction, and a broad frequency capability up to 12 GHz. Packaged as a set of 10, they are an economical choice for installers and technicians who need fast, reliable terminations for cameras, DVRs and other video equipment.

Key features at a glance

• Tool‑free installation:Twist‑on termination eliminates the need for crimp tools or compression fittings for many field repairs and quick installs.
• 75 Ω video fidelity:True 75 Ω BNC design suitable for CCTV and video systems across 0–12 GHz.
• Corrosion resistance:Gold‑plated centre contact and plated brass body to ensure reliable signal transfer over time.
• Durable mechanics:Designed for at least 500 mating cycles, with defined contact and cable retention ratings.
• Pack convenience:Sold as a 10‑pack to supply multiple terminations on a single job.

Detailed specifications and benefits

Understanding the technical specifications helps explain why the FS-BNCTWIST performs well in video installations and repair situations:

• Impedance and frequency:The connector is specified at 75 Ω and supports a frequency range from 0 to 12 GHz. For CCTV and most video systems, that 75 Ω impedance match minimizes reflections and preserves signal integrity across coax runs.
• Electrical robustness:Dielectric withstand is rated at 1500 Veff and insulation resistance at 5000 MΩ, indicating good electrical isolation and stability under normal operating conditions.
• Mechanical ratings:Contact retention is ≥ 10 N, cable retention ≥ 150 N, and the connector is rated for 500 mating cycles. These values indicate reliable mechanical performance under repeated connects/disconnects and normal cable stress during installation.
• Environmental tolerance:Operating temperature spans −55 to +155 °C and the mated IP rating is IP64. That combination means the connector is suitable for a wide range of indoor and sheltered outdoor environments where occasional moisture or dust ingress can occur (note: IP64 applies when connectors are mated).
• Materials and construction:The body is brass with specified plating; the centre contact is brass with a gold plating for improved conductivity and corrosion resistance. Insulator is PTFE and a silicone gasket is included. Stripping dimensions are provided (a = 4.0 mm; b = 8.0 mm; c = 16.0 mm; d = 12.0 mm) to ensure correct, repeatable terminations.
• Installation method:Twist‑on (tool‑free) termination makes these connectors especially useful when time or access is limited. They are explicitly intended for RG59 coax compatibility.

The main benefit of this combination of features is a balance between speed and performance: installers gain a rapid, tool‑free process without sacrificing the electrical characteristics required for most CCTV/video deployments.

• Follow the datasheet stripping dimensions precisely (a = 4.0 mm; b = 8.0 mm; c = 16.0 mm; d = 12.0 mm) to avoid shorts or poor contacts.
• Always power down equipment before terminating cables and confirm the centre conductor is isolated from the braid to prevent shorting.
• These twist‑on connectors are not recommended where a crimp or compression connection is explicitly required by equipment specifications or where the highest mechanical retention is necessary; verify compatibility with your system.

Datasheet / technical reference (plain URL): https://cdn.dynamictech.uk/dynamictech/uploads/datasheets/ITM006978_1.pdf

Use cases and scenarios where this product excels

The FS-BNCTWIST shines in situations where speed, flexibility and cost efficiency matter. Typical scenarios include:

• Rapid on‑site repairs:When a damaged connector needs replacement in the field, a twist‑on connector lets a technician restore connectivity quickly without returning to a shop for crimping tools or replacement pre‑terminated pigtails.
• Temporary or test installations:For short‑term CCTV setups, demonstrations, testing or troubleshooting, twist‑on connectors provide adequate electrical performance with minimal fuss.
• Cost‑sensitive projects:A 10‑pack format and tool‑free installation reduce both material and labour costs for small to medium jobs where using compression fittings for every connection may not be justified.
• Small‑scale installers and DIYers:Home installers, small security firms or facility managers who need to service a few cameras benefit from an easy, reliable method without specialized tooling.

While excellent for the uses above, these connectors are less appropriate in applications demanding the highest weather sealing, factory‑grade mechanical retention, or where the acceptance criteria require crimp or compression terminations for warranty or compliance reasons.

How it compares to similar products

There are several termination options for RG59 coax, and understanding how the FS-BNCTWIST stacks up helps you choose the right connector for the job:

• Twist‑on vs crimp:Twist‑on connectors are faster and require no special tools, which saves time on-site. Crimp connectors typically provide higher mechanical retention and are preferred where a formal crimp is specified by the equipment manufacturer or where maximum durability is needed.
• Twist‑on vs compression:Compression fittings often provide better environmental sealing and a more consistent impedance match in challenging outdoor installations. Twist‑on fittings are ideal for indoor or sheltered installations, repairs, or temporary setups where compression fittings are impractical.
• Cost and convenience:Twist‑on connectors such as the FS-BNCTWIST are usually less expensive and quicker to fit than compression or high‑quality crimp systems, making them a common choice for small installers and rapid deployment scenarios.
• Performance:The FS-BNCTWIST offers a true 75 Ω design and a broad frequency response up to 12 GHz, which is comparable to many higher‑end connectors for video applications. However, the mechanical retention and environmental sealing characteristics will typically be exceeded by well‑installed compression connectors.

Customer testimonials and typical feedback

There are no verified customer testimonials supplied with the product information. However, feedback commonly seen for twist‑on 75 Ω BNC connectors across installer forums and small security businesses tends to include the following themes:

• "Quick and easy to fit when you don’t have a crimping tool—saved me an hour on a small job."
• "Good video quality for indoor cameras; great for testing new runs and temporary setups."
• "Not ideal for exposed outdoor connectors—use compression fittings for permanent external installations."
• "The 10‑pack is handy for stocking a van; decent balance of price and performance for everyday CCTV work."

These remarks reflect general sentiment rather than verified endorsements of the specific FS-BNCTWIST product, but they align with the product's intended use cases and design trade‑offs.

Conclusion: Why choose the FS-BNCTWIST?

The FS-BNCTWIST BNC male twist‑on connector (RG59, 10‑pack) is a practical, cost‑effective solution for installers, technicians and DIYers who need fast, tool‑free terminations for CCTV and video equipment. Its true 75 Ω design, gold‑plated centre contact, and brass construction deliver reliable signal performance for most indoor and sheltered outdoor uses. With clearly specified electrical, mechanical and environmental ratings (including 0–12 GHz frequency coverage, dielectric withstand and temperature tolerance), these connectors provide predictable behavior in typical video installations.

Choose the FS-BNCTWIST when you prioritise speed, convenience and adequate performance—especially for repairs, testing, temporary setups and small installations. If your project requires the highest mechanical retention or weather sealing for long‑term, exposed outdoor runs, consider crimp or compression alternatives instead. For everyday CCTV work and on‑the‑go fixes, the FS-BNCTWIST offers a well‑balanced option at an attractive price point (suggested price: 10.99 for the 10‑pack).

Datasheet / technical reference (plain URL): https://cdn.dynamictech.uk/dynamictech/uploads/datasheets/ITM006978_1.pdf
