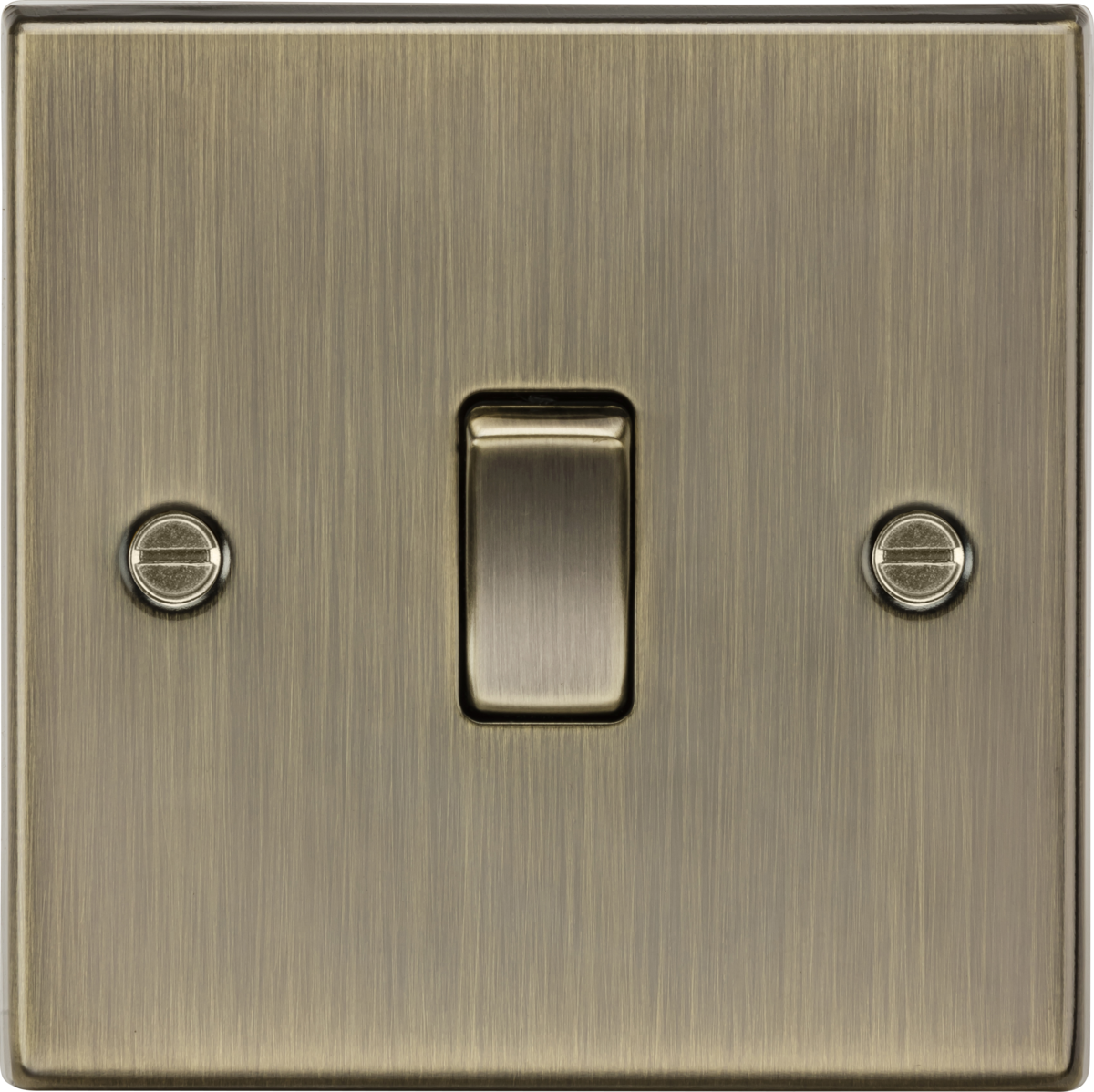

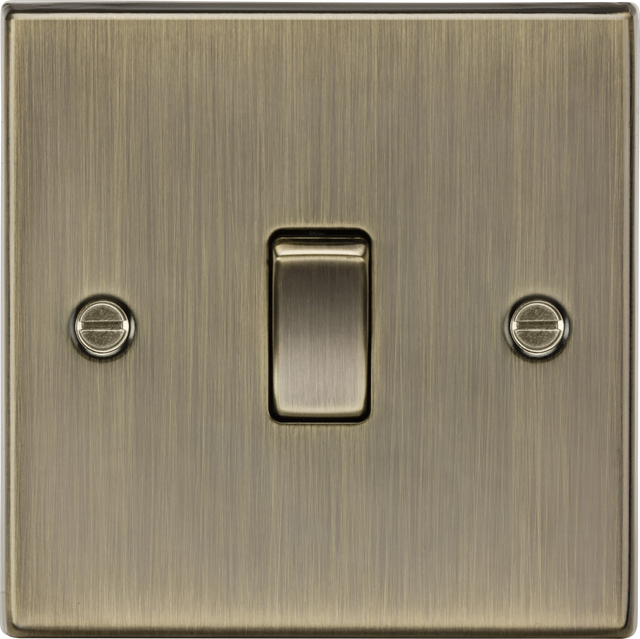

Antique Brass Intermediate Switch
This 10AX 1G Intermediate Switch in Antique Brass is a perfect finishing touch to any modern home. The square edge metal design with a matching metal rocker adds style and functionality to your space. Designed for use in three-way switch configurations, it allows you to control one light from multiple locations, making it ideal for landings, staircases, and large rooms.
- Rated at 10AX.
- Square edge design with built-in gasket for a neat fit.
- Certified to EN 60669-1.
- Requires a minimum mounting box depth of 16mm.
- Constructed from robust 430 stainless steel.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Antique Brass |
---|---|
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

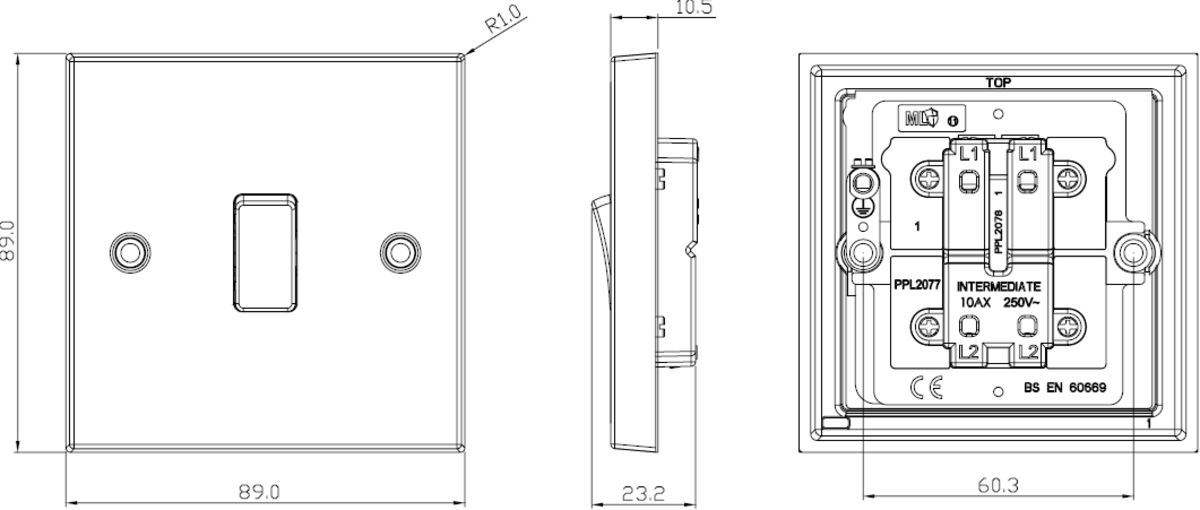

Dimensions
Depth | 23.2 mm |
---|---|
Width | 89 mm |
Height | 89 mm |
Projection | 14.4 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Antique Brass Intermediate Switch features

10AX 1G Intermediate Switch, Antique Brass, Square Edge Design, 230V, Certified EN 60669-1, CS12AB
