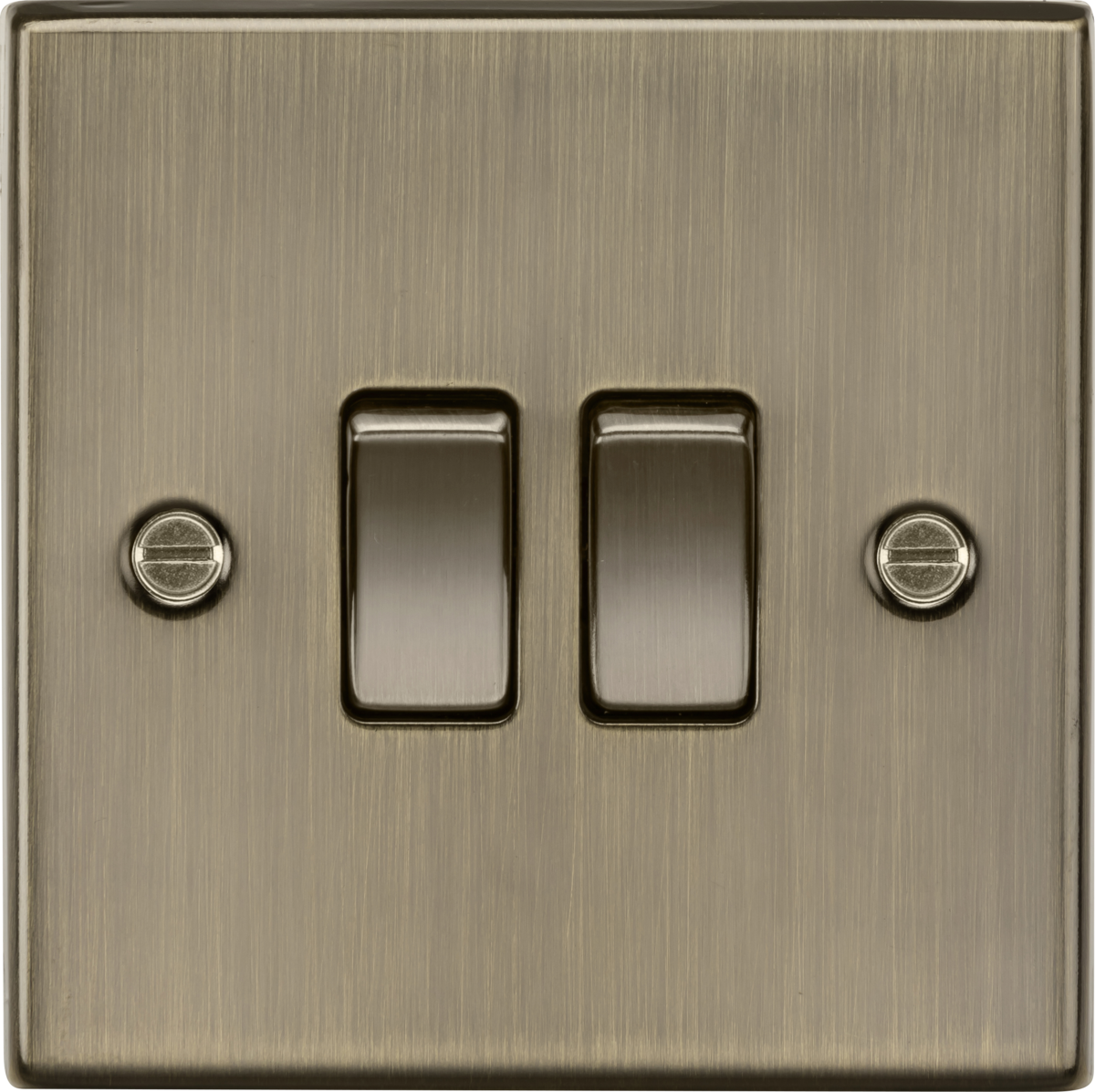

Knightsbridge - 10AX 2G 2-Way Plate Switch, Square Edge Design, Antique Brass, 10A, EN 60669-1 Certified, CS3AB
About this product
Perfect finishing touch to any modern home, square edge metal design with matching metal rocker. 10AX 2-way switches are generally used when there are two entrances to a room, where there is a switch positioned at either entrance requiring joint control of the lighting.
- 10AX rated
- 2-way
- Square Edge design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Antique Brass |
---|---|
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

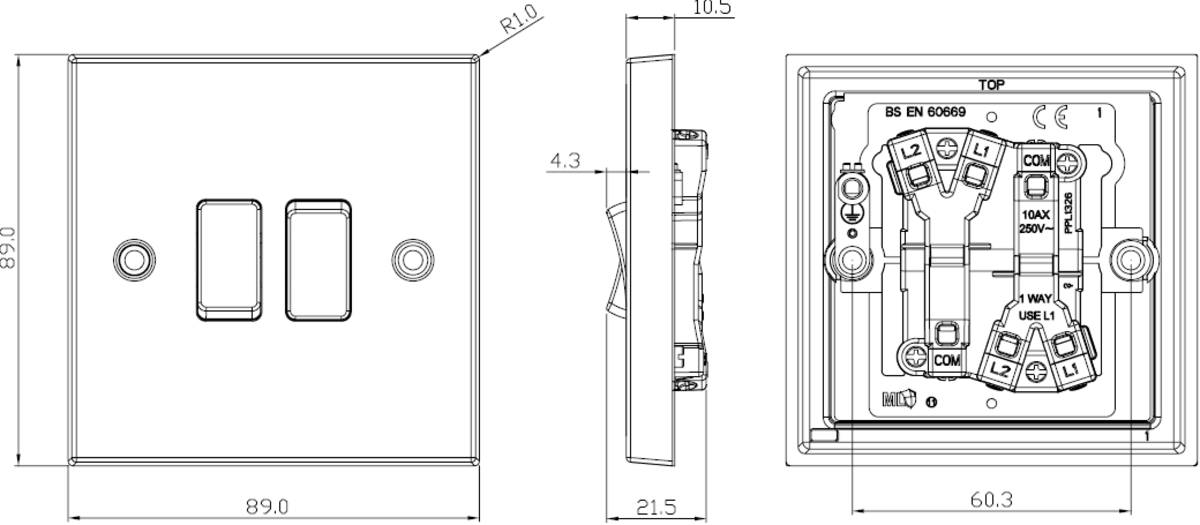

Dimensions
Depth | 21.5 mm |
---|---|
Width | 89 mm |
Height | 89 mm |
Projection | 14.8 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
10AX 2G 2-way Plate Switch - Antique Brass features

10AX 2G 2-Way Plate Switch, Square Edge Design, Antique Brass, 10A, EN 60669-1 Certified, CS3AB
