10AX 1G DP Switch
Rounded Edge
£
7
29
(Incl. VAT)
RRP: £8.09
WME Care
About this product
Perfect finishing touch to any modern home, rounded edge metal design with matching metal rocker.
- 10AX rated
- Double Pole switch
- Rounded Edge design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
£
7
29
WME Care
FAST delivery by Tuesday, April 8 Order within 7 hrs 41 mins
Get breakdown support
Warranty plans available. See terms
Technical Details
Specifications
Finish
Brushed Chrome
Brushed Chrome
IP Rating
IP20
IP20
Construction
304 Stainless steel
304 Stainless steel
Primary Voltage
230V 50Hz
230V 50Hz

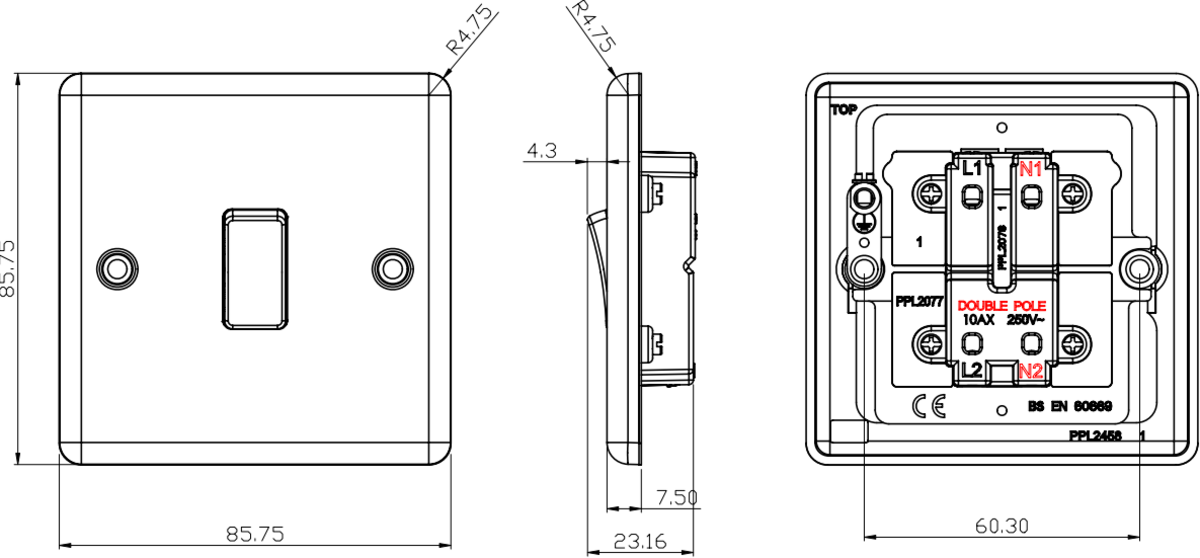

Dimensions
Depth
23.16 mm
23.16 mm
Width
85.75 mm
85.75 mm
Height
85.75 mm
85.75 mm
Projection
11.8 mm
11.8 mm
Plate Depth
7.5 mm
7.5 mm
Recessed Depth
9.89 mm
9.89 mm
Min. Mounting Box Depth
16mm
16mm
Wiring-accessories
Earth Terminal
Yes
Yes
Specifications
Finish | Brushed Chrome |
---|---|
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |
Dimensions
Depth | 23.16 mm |
---|---|
Width | 85.75 mm |
Height | 85.75 mm |
Projection | 11.8 mm |
Plate Depth | 7.5 mm |
Recessed Depth | 9.89 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Earth Terminal | Yes |
---|
10AX 1G DP Switch features

10AX 1G Double Pole Switch, Brushed Chrome, Rounded Edge Design, 230V, IP20, EN 60669-1 Certified, CL1DPBC
