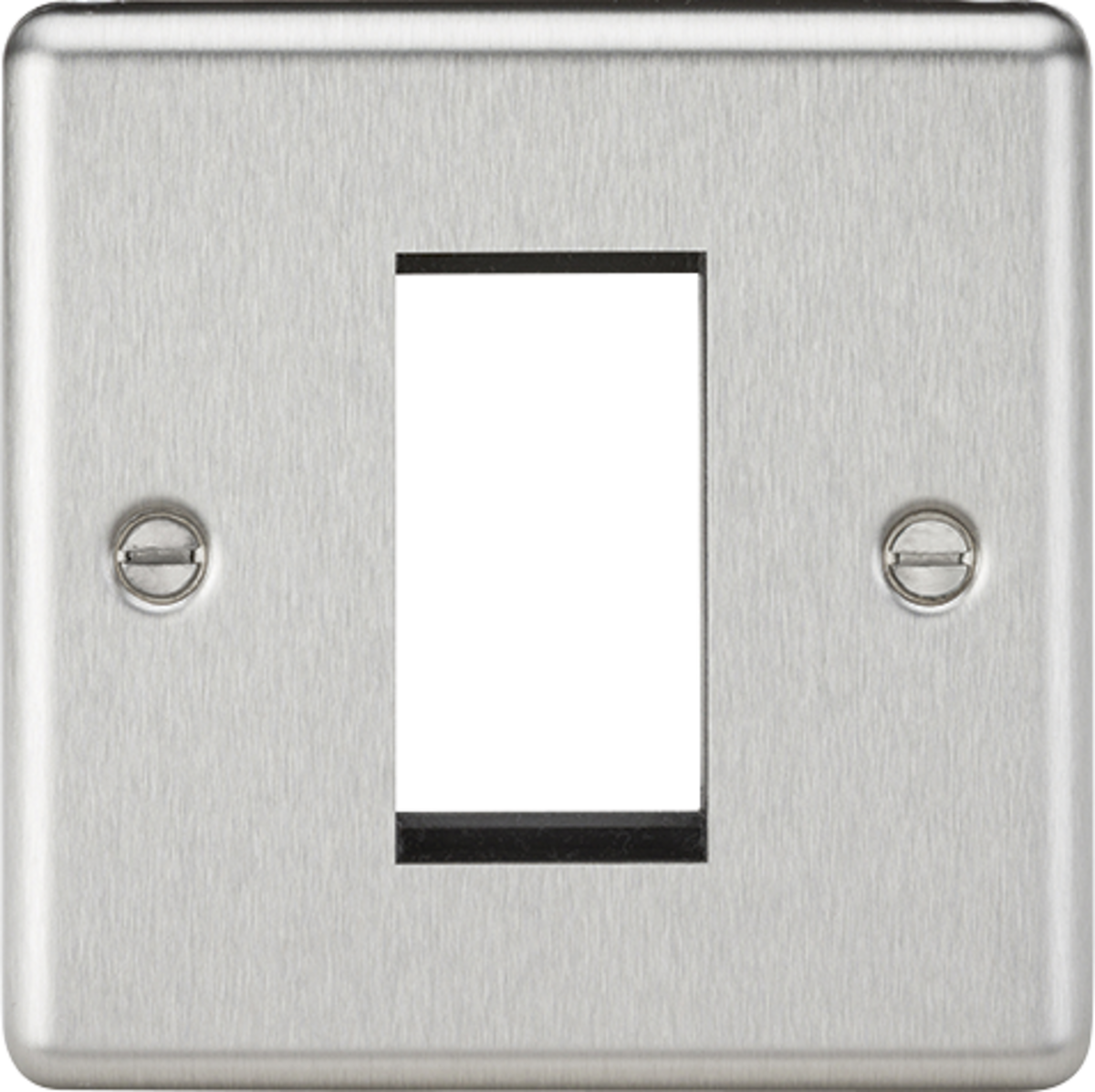

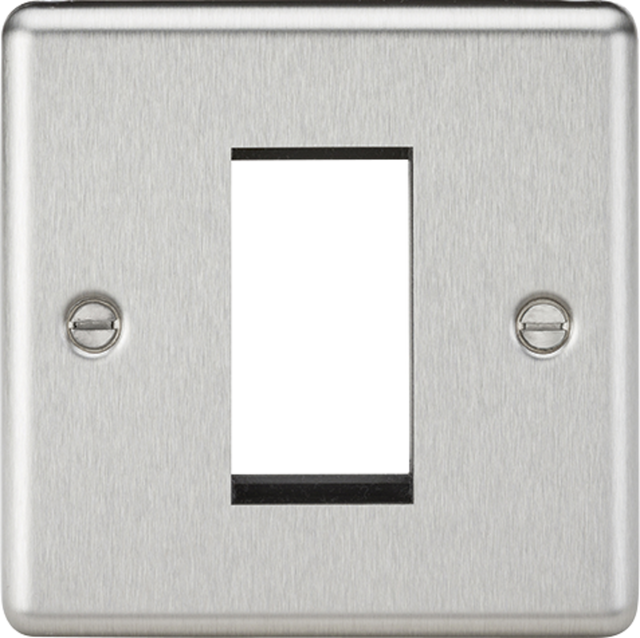

1G Modular Faceplate - Brushed Chrome
Bespoke Design
£
3
78
(Incl. VAT)
RRP: £4.20
WME Care
About this product
The 1G Modular Faceplate in Brushed Chrome is ideal for creating bespoke installations using euro module inserts.
- Accepts a single 25 x 50mm euro module.
- Rounded edge design with built-in gasket for a seamless look.
- Minimum mounting box depth depends on the euro module used.
£
3
78
WME Care
FAST delivery by Order within
Get breakdown support
Warranty plans available. See terms
Technical Details
Specifications
Class
I
Finish
Brushed Chrome
IP Rating
IP20
Construction
304 Stainless steel

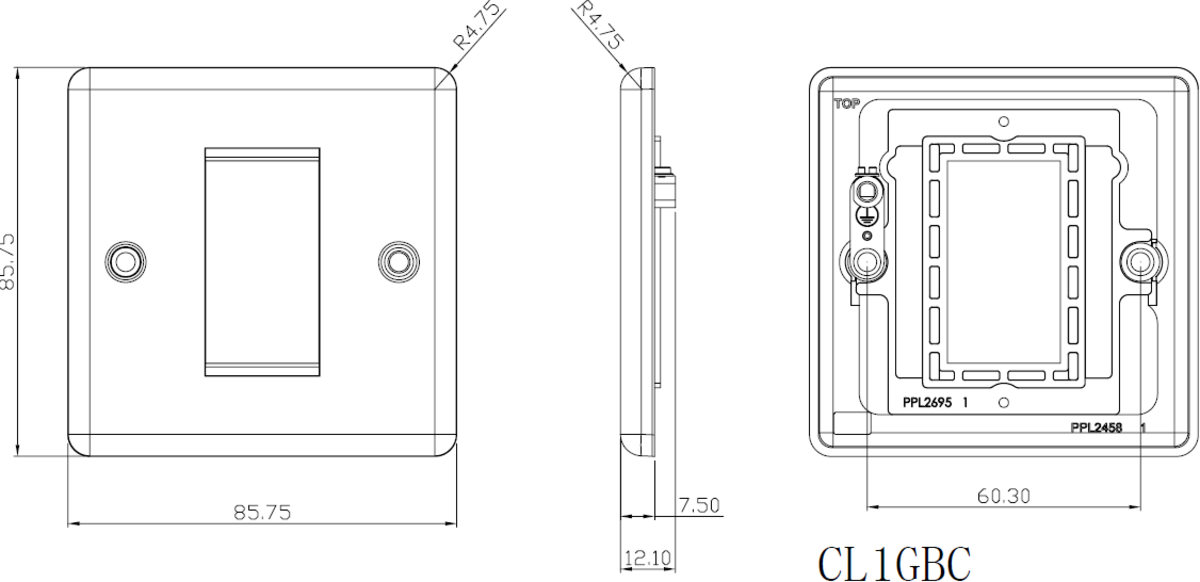

Dimensions
Depth
12.1 mm
Width
85.75 mm
Height
85.75 mm
Projection
7.5 mm
Plate Depth
7.5 mm
Wiring-accessories
Earth Terminal
Yes
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Dimensions
Depth | 12.1 mm |
---|---|
Width | 85.75 mm |
Height | 85.75 mm |
Projection | 7.5 mm |
Plate Depth | 7.5 mm |
Wiring-accessories
Earth Terminal | Yes |
---|
1G Modular Faceplate - Brushed Chrome features

1G Modular Faceplate, Brushed Chrome, Euro Module Compatible, Rounded Edge Design, 85.75mm x 85.75mm, CL1GBC
