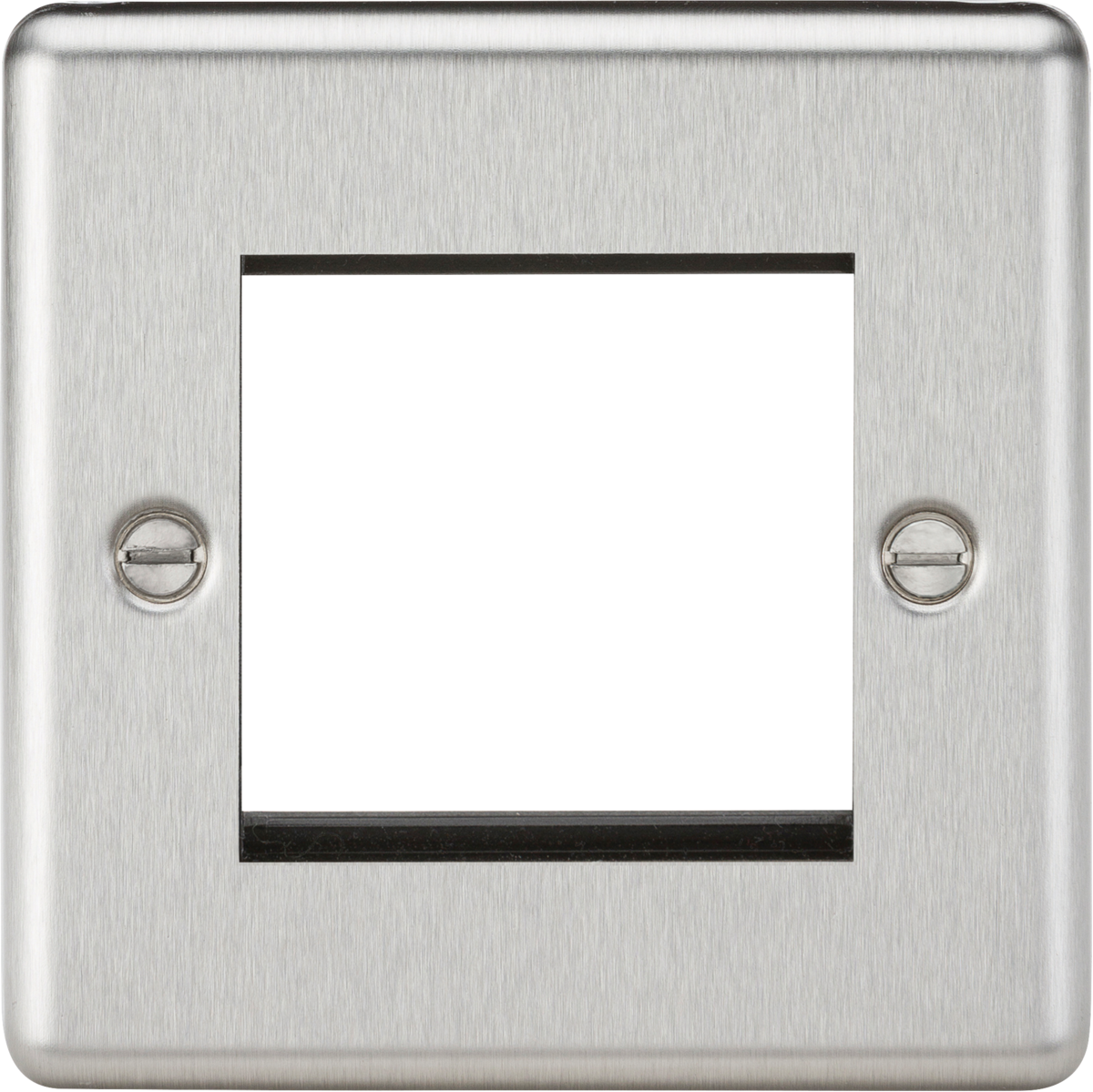

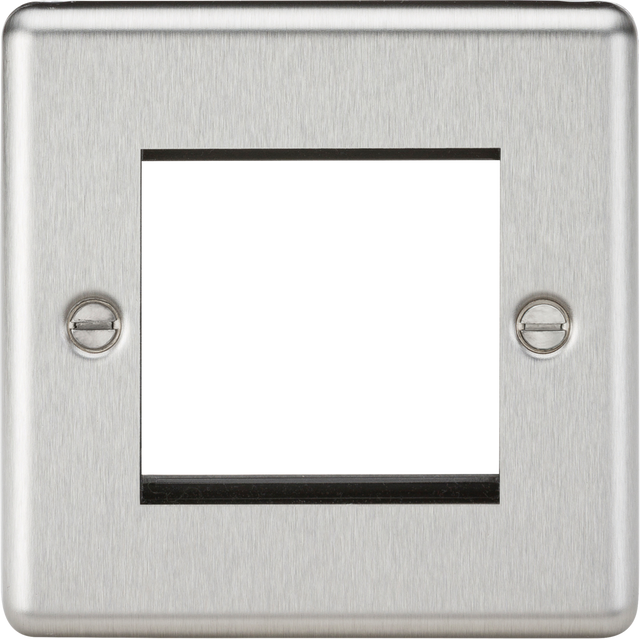

2G Modular Faceplate - Brushed Chrome
About this product
The 2G Modular Faceplate in Brushed Chrome is expertly designed to accommodate euro module inserts, making it a versatile choice for custom installations.
- Accepts two 25 x 50mm or a single 50 x 50mm euro module
- Rounded edge design with built-in gasket for enhanced aesthetics
- Minimum mounting box depth varies based on euro module used
Constructed from durable 304 stainless steel with an IP20 rating, this product is both functional and stylish.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 304 Stainless steel |

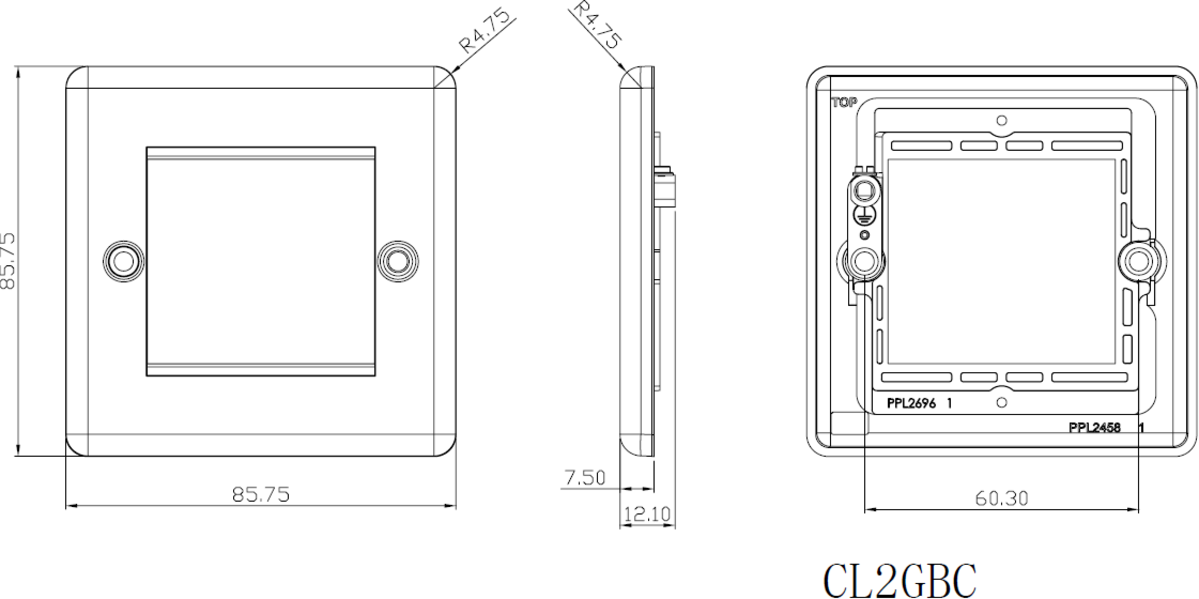

Dimensions
Depth | 12.1 mm |
---|---|
Width | 85.75 mm |
Height | 85.75 mm |
Projection | 7.5 mm |
Plate Depth | 7.5 mm |
Wiring-accessories
Earth Terminal | Yes |
---|
2G Modular Faceplate - Brushed Chrome features

2G Modular Faceplate, Brushed Chrome, Euro Module Compatible, Rounded Edges, IP20 Rated, 85.75mm x 85.75mm, CL2GBC
