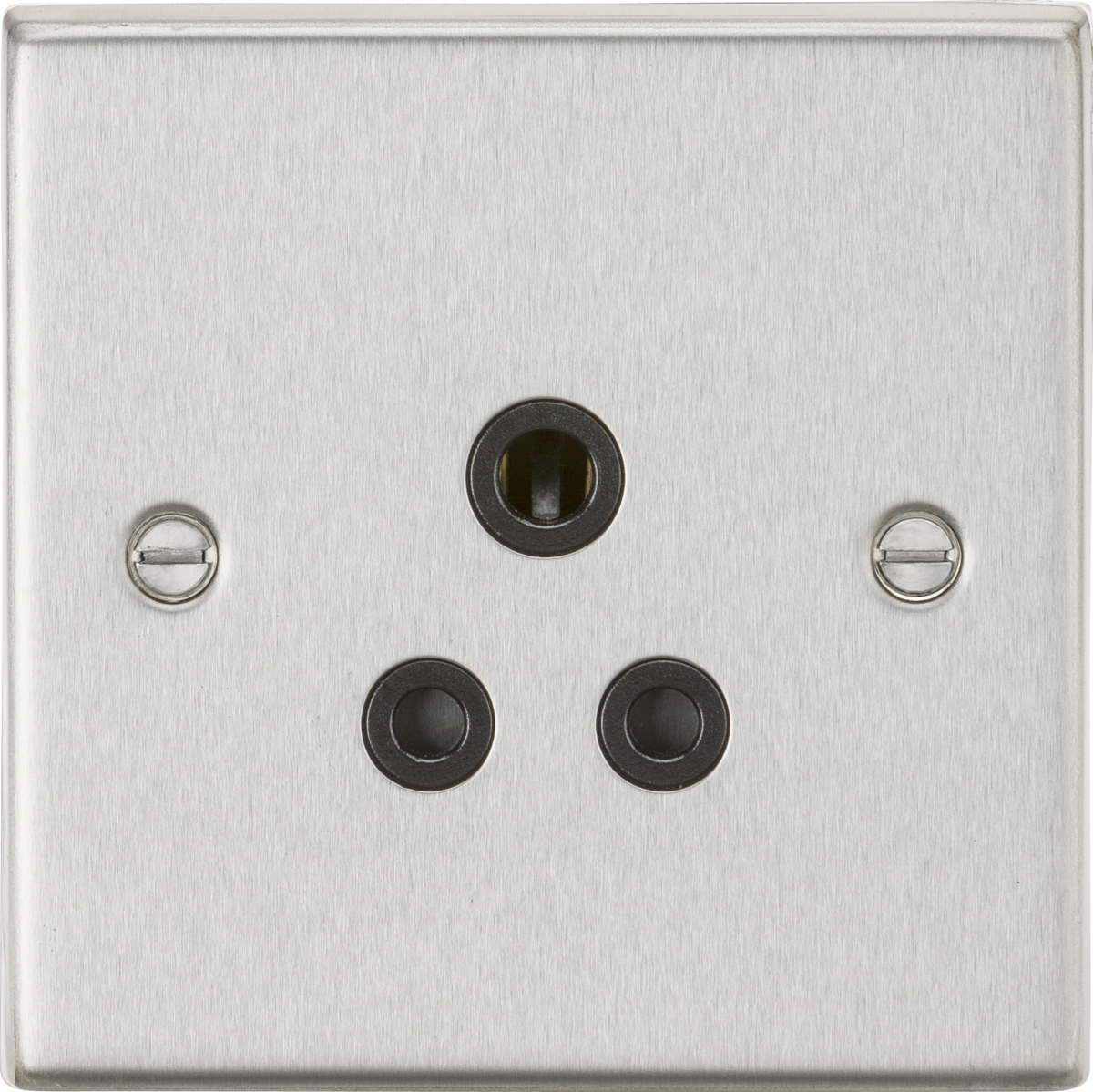

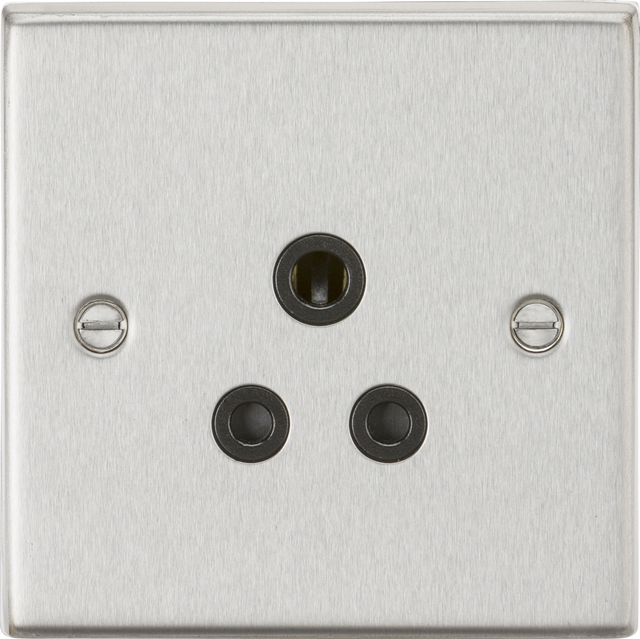

5A Unswitched Socket - Brushed Chrome
This Brushed Chrome 5A Unswitched Socket with Black Insert is designed to enhance the aesthetics of any home environment. It features a contemporary square edge metal design and is ideal for custom lighting solutions.
- 5A round pin socket
- Unswitched for ease of use
- Square edge design with built-in gasket
- Certified to BS 546 for safety
- Minimum mounting box depth required: 25mm
This product is currently being discontinued, so stock is limited. Please check availability and act quickly if interested!
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Brushed Chrome |
---|---|
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

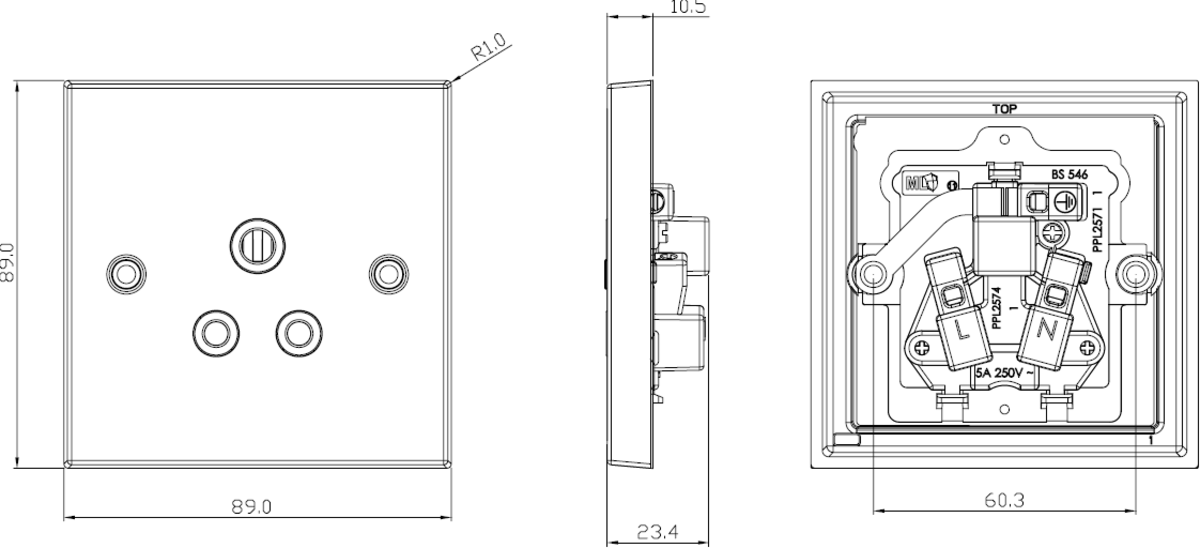

Dimensions
Depth | 23.4 mm |
---|---|
Width | 89 mm |
Height | 89 mm |
Projection | 10.5 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
5A Unswitched Socket - Brushed Chrome features

5A Unswitched Socket, Brushed Chrome Finish, Square Edge Design, BS 546 Certified, 230V, CS5ABC
