Introduction: What the Veracity CAMSWITCH 4 Mobile Is and Why It Matters

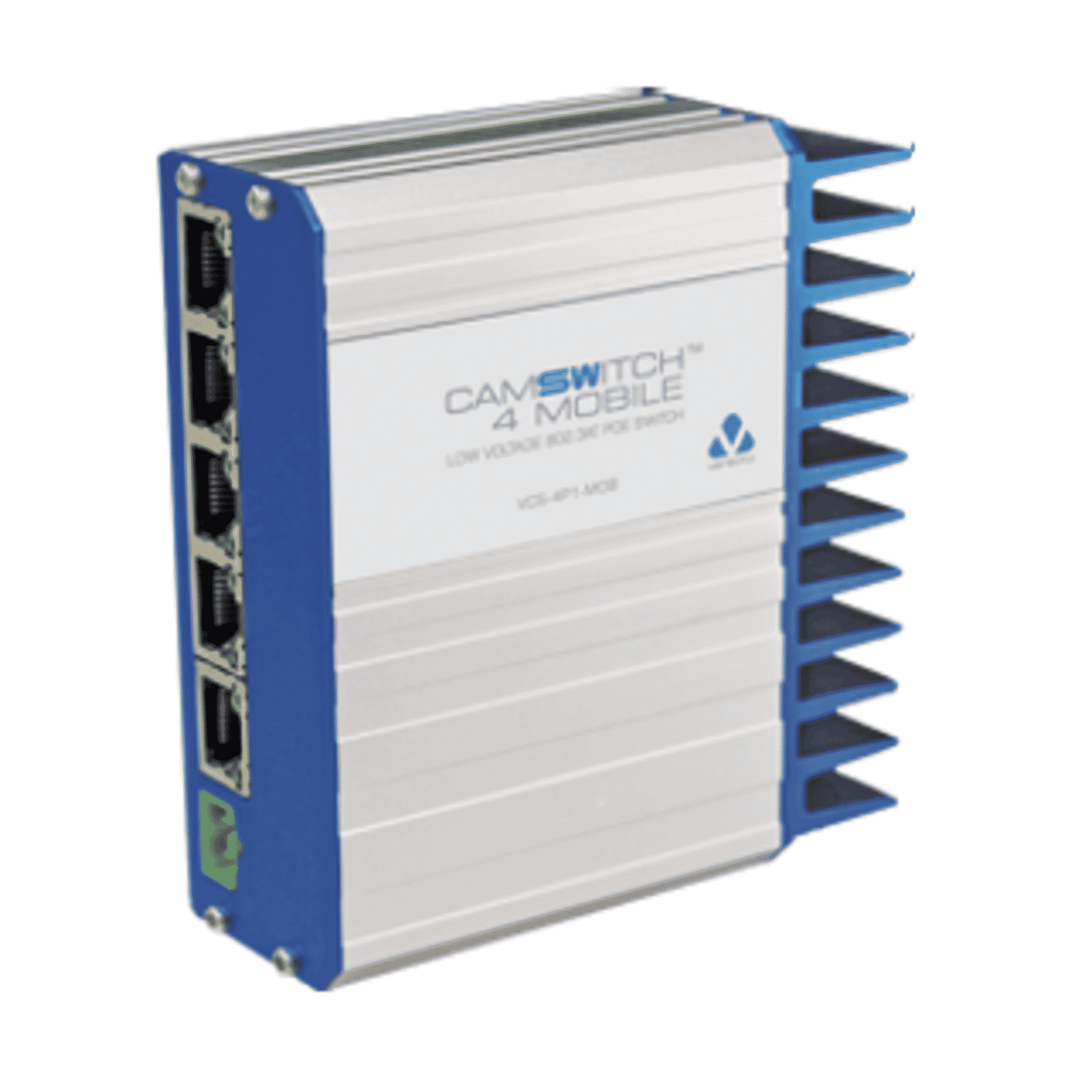

Veracity CAMSWITCH 4 Mobile (VCS-4P1-MOB)is a compact, rugged 5-port unmanaged Ethernet switch designed specifically for mobile, vehicle, battery- or solar-powered installations. It delivers four IEEE 802.3af/802.3at (PoE/PoE+) powered ports plus a single data-only RJ45 uplink, with a device power budget of up to 80 W (dependent on input voltage and temperature). In short, this unit is purpose-built for closed-system camera, IoT and vehicle networks where low-voltage DC sources are the norm and reliability in constrained environments is essential.
Key Features at a Glance
- 4 x PoE/PoE+ portssupporting IEEE 802.3af and 802.3at
- 1 x data-only RJ45 uplinkfor upstream connectivity
- Wide DC input range8.5–40 V DC with a minimum startup around 10.5 V
- Up to 80 W total PoE budget(voltage and temperature dependent)
- Rugged mounting and connectors— detachable screw-terminal DC connector and vehicle/machine mounting clips
- Unmanaged, plug-and-playoperation with 10/100 Mbps auto-negotiation and auto-MDI/MDIX
Detailed Specifications and Practical Benefits
The CAMSWITCH 4 Mobile accepts a wide DC range from 8.5 to 40 V, making it engine-crank capable and suitable for vehicle battery systems, solar arrays with charge controllers, or DC UPS sources. This flexibility simplifies installation across many mobile platforms. The four PoE-capable ports comply with IEEE 802.3af and 802.3at (PoE+), supplying up to 80 W total to powered devices. Note that PoE output is not galvanically isolated from the DC input — an important consideration when integrating across multiple power domains.
This is an unmanaged 10/100 Mbps switch with auto-negotiation and auto-MDI/MDIX. While gigabit throughput is not provided, the choice of 100BASE-TX is intentional for many camera and telemetry deployments where low-latency, reliable power delivery and simplicity outweigh the need for multigigabit backbones. Per-port LEDs show PoE/link/activity status to aid diagnostics in the field.
The unit’s compact footprint (110 mm, extended to 131 mm with side clips; thickness ~40 mm) and lightweight construction (~290 g) make it easy to mount in cramped vehicle cabins, equipment racks, or inside control cabinets. A rugged enclosure, detachable screw-terminal DC connector and vehicle/machine mounting clips support secure installations exposed to vibration and movement.
Rated for -10°C to 50°C operation and up to 85% non-condensing humidity, the CAMSWITCH 4 Mobile is optimized for many mobile and semi-exposed environments. Compliance with CE, FCC and RoHS ensures adherence to common regulatory and safety standards for electronics deployed internationally.
Real-World Use Cases Where This Switch Excels
- Vehicle CCTV and Patrol Cars:Rapidly deploy multiple PoE cameras and a network video recorder from a single compact switch powered by the vehicle battery. The wide DC input and recommended fuse options simplify integration with automotive electrical systems.
- Mobile Command and Emergency Vehicles:Support cameras, Wi‑Fi access points and IoT sensors in ambulances, fire command units and other response vehicles where space and power are constrained.
- Solar- or Battery-Powered Remote Sites:Provide PoE to security cameras, environmental sensors and access points at off-grid locations. The switch’s low-voltage capability and compact size are advantageous when paired with small solar charge controllers or DC UPS systems.
- Temporary Installations:For event security, temporary traffic monitoring or pop-up deployments, the CAMSWITCH 4 Mobile offers fast, reliable PoE distribution without the complexity of managed equipment.
- Industrial Machinery and Mobile Equipment:Attach cameras and telemetry devices on cranes, agricultural machines or other mobile assets where vibration resistance and a small footprint are required.
Comparisons with Similar Products on the Market
Typical office or rackmount PoE switches (from mainstream brands) often provide gigabit ports, managed features, and higher port counts. However, they assume stable AC mains power, rack space, and a climate-controlled environment. The CAMSWITCH 4 Mobile trades gigabit speed and management features for vehicle-friendly power input, rugged mounting, and a compact sealed enclosure. In mobile or off-grid use, the Veracity unit is often a better fit.
Industrial PoE switches bring advantages like wide temperature ranges, hardened isolation, and sometimes higher IP ingress protection ratings. The Veracity CAMSWITCH 4 Mobile focuses on mobility and simplicity; its advantages are detachable screw-terminal DC connection, engine-crank-capable input range, and vehicle mounting clips. If you need galvanic isolation between input power and PoE outputs or extreme temperature tolerance beyond -10°C to 50°C, an industrial-grade isolated switch would be preferable.
There are a handful of mobile-specific PoE switches from other specialist vendors. Compared with those, the VCS-4P1-MOB’s balance of four PoE+ ports, up to 80 W budget, compact size and clear vehicle-installation guidance makes it a competitive choice. The main trade-offs to consider are: it is unmanaged and limited to 10/100 Mbps — factors that matter if advanced traffic control or gigabit backbone integration is required.
Installation and Safety Considerations
- Power Isolation:PoE output is not galvanically isolated from the DC input, so the unit is intended for closed systems where the powered devices and the switch share a common ground or power domain. Avoid connecting across different vehicle systems without proper isolation.
- Power Budget Planning:The 80 W budget is voltage- and temperature-dependent. At lower input voltages or higher ambient temperatures, available PoE power will decrease. Always consult the product datasheet power charts when specifying multiple PoE devices.
- Fuse and Wiring Practices:Use the recommended external fuse (the datasheet shows an example 10 A slow‑blow at 12 V) and adhere to good vehicle wiring practices. The detachable screw-terminal gives flexibility but requires secure termination.
- Mounting and Ventilation:Mount using the supplied clips or recommended hardware in locations where airflow is sufficient to avoid overheating, particularly when multiple PoE+ devices are powered.
Customer Feedback and Reviews
While specific public reviews for every installation are limited due to the specialist nature of mobile PoE deployments, typical feedback from integrators and fleet operators highlights a few recurring themes:
- Compact reliability:Users appreciate the small footprint and reliable operation when installed in vehicles where space is at a premium.
- Power flexibility:The wide DC input range and clear guidance on fusing and wiring make it easier to integrate into existing vehicle power systems.
- Easy deployment:The unmanaged plug-and-play nature makes the CAMSWITCH 4 Mobile attractive for installations that need to be commissioned quickly without network configuration overhead.
If you require documented customer testimonials or case studies, many specialists in transport CCTV and mobile surveillance publish installation notes that reference mobile PoE switches and the benefits of compact, vehicle-rated hardware.
Limitations and When to Choose Alternatives
No product is perfect for every application. The CAMSWITCH 4 Mobile’s unmanaged 10/100 design and lack of galvanic isolation make it less suitable when you need gigabit throughput, advanced VLANs, QoS configuration, or strict power isolation between domains. In those scenarios, consider managed PoE switches, industrially isolated units or switches with higher environmental ratings.
Conclusion: Why the Veracity CAMSWITCH 4 Mobile Makes Sense
For installers, integrators and fleet operators who need a compact, rugged PoE+ switch for vehicle, solar or battery-powered systems, the Veracity CAMSWITCH 4 Mobile is a sensible, purpose-built choice. Its wide DC input range, PoE+ support across four ports, straightforward plug-and-play operation and vehicle-focused mechanical design deliver an outstanding balance of simplicity and capability for closed-system camera and IoT deployments. While it forgoes gigabit speeds and managed features, those trade-offs are deliberate: this is a specialist device meant to keep cameras and sensors powered and connected in environments where space, power variability and reliability matter most.
Pricing guidance:Typical suggested price is around 319.00, making it a cost-effective solution for mobile PoE needs when compared with larger managed or industrial options that carry higher price points and complexity.
