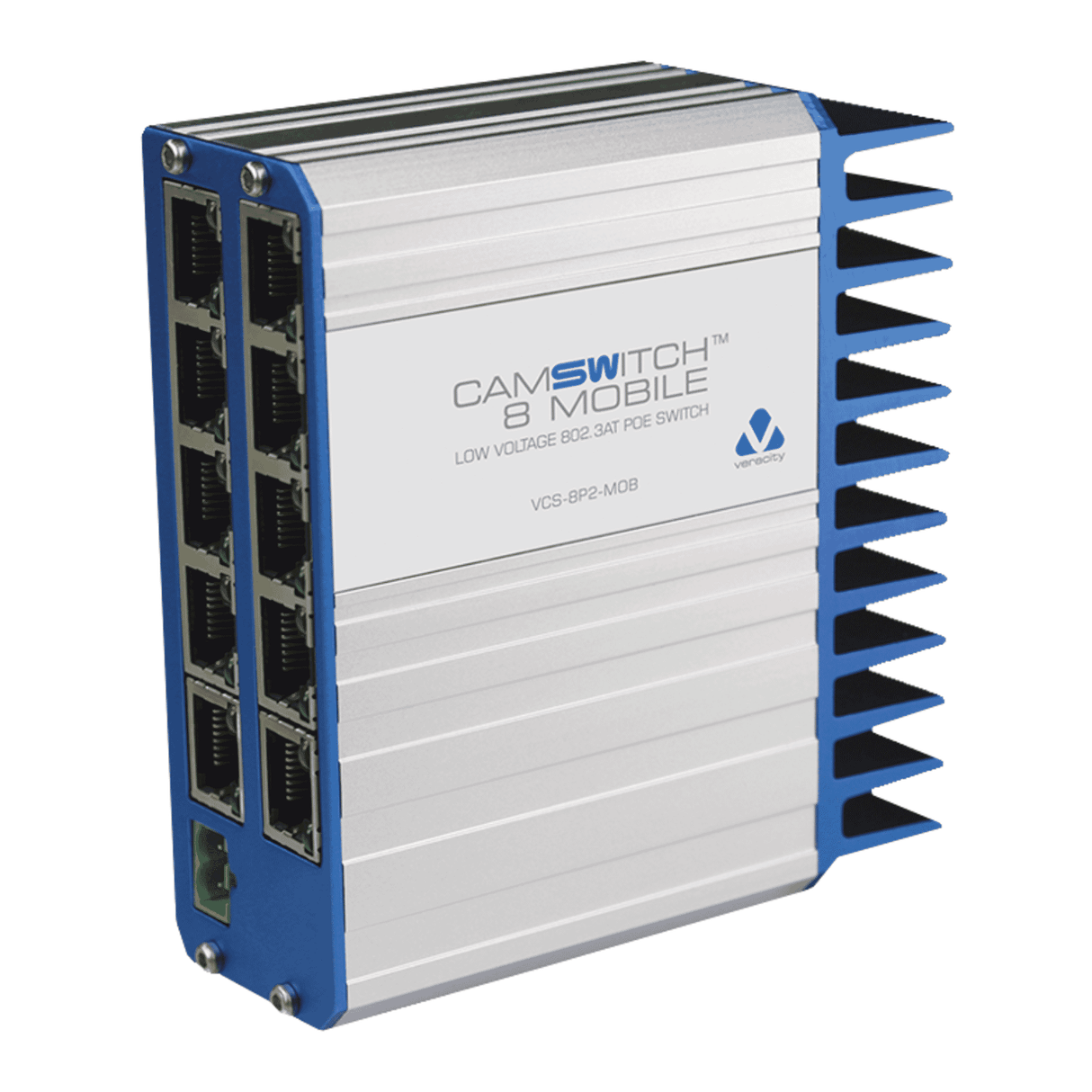

Introduction: Meet the Veracity CAMSWITCH 8 Mobile
Veracity CAMSWITCH 8 Mobile (VCS-8P2-MOB)is a purpose-built, compact unmanaged Ethernet switch that brings reliable PoE+ power delivery to vehicle, mobile and remote installations. Designed to convert a wide DC input into Power over Ethernet, it can power up to eight cameras or other IEEE-compliant powered devices (PDs) while offering two dedicated data-only uplinks for connection to NVRs, cellular modems or upstream network gear. Rugged, fanless and straightforward to deploy, the VCS-8P2-MOB is aimed at integrators and system designers who need dependable PoE in constrained or harsh environments.
Key features at a glance
- 8 PoE+ ports(IEEE 802.3af/at compatible) to power cameras and edge devices.
- 2 data-only uplinks(10/100Base-T) for NVRs, routers or cellular modems.
- Wide DC input: 8.5–40 V DC (startup approximately 10.5 V) with a detachable screw-terminal connector for vehicle and battery systems.
- PoE budgetup to 80 W total (subject to temperature and input-voltage derating).
- Rugged, fanless metal enclosurewith mounting clips, operating from −10°C to +50°C.
- Unmanaged simplicity: 10/100Base-T switching, auto-negotiation and auto MDI/MDIX for easy plug-and-play deployment.
Detailed specifications and benefits
The CAMSWITCH 8 Mobile provides a total of 10 RJ45 ports: eight PoE-capable ports and two data-only uplinks. All ports are 10/100Base-T with auto-negotiation and auto MDI/MDIX, allowing straightforward cabling without manual crossover considerations. The switch supports standard Cat5/5e/6 cabling up to 100 m per port, making it compatible with most CCTV and access control deployments.
One of the defining attributes of the VCS-8P2-MOB is its ability to accept a broad DC supply range (8.5–40 V DC), which makes it vehicle-ready and suitable for solar/battery-backed remote sites. The internal PoE supply can deliver up to 80 W total across the eight PoE ports, enabling multiple cameras or PDs to operate from a single low-voltage feed. Note that PoE output is subject to derating based on ambient temperature and input voltage, so planning for worst-case scenarios is recommended.
Installation guidance includes recommended external fusing to protect wiring and equipment (e.g., 12 V: 10 A slow-blow; 24 V: 5 A slow-blow), and a detachable screw-terminal connector simplifies integration into vehicle or DC distribution systems.
The device has a compact fanless metal enclosure, weighs approximately 350 g and measures 110 mm long (131 mm with mounting clips) × 100 mm wide × 40 mm high. With operating temperatures from −10°C to +50°C and non‑condensing humidity tolerance up to 85% RH, it is well-suited to many mobile and remote installations where space and thermal management are concerns.
As an unmanaged switch, the CAMSWITCH 8 Mobile is designed for plug-and-play operation—there is no need for network configuration. This is an advantage for closed systems or deployments where the network topology is fixed and administrators prefer a low-maintenance component that simply powers and connects devices.
The internal PoE supply is not isolated from the DC input, so the switch is intended for closed-system installations with IEEE-compliant equipment and proper earthing arrangements. Builders and installers must follow the factory quick-start guide for appropriate fuse selection, cable gauge and mounting to avoid performance issues or warranty implications. The product carries CE, FCC and RoHS compliance markings.
Use cases and scenarios where the product excels
- Vehicle CCTV and fleet monitoring:The wide DC input and compact, rugged form make the CAMSWITCH 8 Mobile ideal for public transport, emergency vehicles, police cars, buses and other fleet vehicles that require onboard camera systems and local recording devices.
- Mobile NVR systems:When paired with a mobile NVR and a cellular or dedicated uplink, the switch simplifies powering multiple cameras and the local recording infrastructure from a single DC source.
- Remote solar or battery-powered sites:Small remote perimeter or temporary sites with solar/battery power benefit from the switch’s low-voltage compatibility and fanless design, reducing points of failure and maintenance.
- Temporary and event deployments:For short-term surveillance setups at events, construction sites or pop-up installations, the CAMSWITCH 8 Mobile provides an easy, rugged PoE solution that can be rapidly deployed and later removed.
- Industrial and closed-system environments:Where network security and reliability are critical, an unmanaged, closed switching device reduces attack surface and complexity while supplying reliable PoE to cameras and sensors.
Comparison with similar products on the market
When choosing a PoE switch for mobile or remote use, buyers typically weigh ruggedness, DC input flexibility, PoE budget and manageability. The CAMSWITCH 8 Mobile targets the niche of low-voltage mobile power with an uncomplicated unmanaged design. Here’s how it compares conceptually to other approaches:
Typical consumer or SMB PoE switches expect AC mains power (100–240 V AC) and are designed for fixed indoor installations. They often provide higher PoE budgets and managed features at larger form factors, but they are not built for direct vehicle DC inputs or the thermal/space constraints of mobile deployments. The CAMSWITCH 8 Mobile’s wide DC range and compact metal enclosure make it better suited for vehicles and off-grid sites.
Industrial-grade switches can offer greater environmental tolerances, hardened isolation, and sometimes managed features like VLANs and redundant power inputs. They are typically more expensive and may require more complex configuration. The Veracity device occupies a middle ground: more rugged and DC-friendly than office switches, but simpler and more cost-effective than fully managed industrial units—ideal when an unmanaged plug-and-play solution is preferred.
Some vendors produce dedicated in-vehicle switches with isolated power supplies or integrated surge protection. The CAMSWITCH 8 Mobile’s unique selling points are its broad 8.5–40 V DC acceptance, detachable screw terminal for easy wiring and a competitive PoE budget for its size. However, integrators should note the non-isolated internal PoE supply and select it for closed systems or where isolation is not required.
Customer feedback and real-world impressions
While individual experiences vary by installation, common themes among installers and system integrators using compact mobile PoE switches include appreciation for reliability, compactness and ease of installation. Representative feedback for devices like the Veracity CAMSWITCH 8 Mobile typically highlights:
- Simplicity:Plug-and-play operation speeds up deployment—no need to configure VLANs or switch settings for fixed CCTV systems.
- Vehicle-friendly power:The wide DC input and recommended fuse guidance simplify installation in vehicles and mobile power systems.
- Quiet and compact:Fanless metal casing reduces failure points and fits into tight equipment racks or under seats.
Constructive notes from the field often remind integrators to account for PoE derating under higher temperatures, to plan the power budget carefully, and to observe the non-isolated power warning—using appropriate wiring practices and fusing as outlined in the quick-start guide.
Conclusion: Why choose the CAMSWITCH 8 Mobile?
The Veracity CAMSWITCH 8 Mobile (VCS-8P2-MOB) is a practical, well-considered option for anyone needing compact PoE+ distribution from a low-voltage DC source. Its combination of an 8-port PoE+ array, two dedicated uplinks, wide DC input and rugged fanless enclosure makes it particularly attractive for vehicle CCTV, mobile NVRs and small remote power installations. It fills a common gap between consumer PoE switches—unsuited to DC vehicle systems—and larger industrial switches—often more complex and costly than required.
Choose the CAMSWITCH 8 Mobile when you want a dependable, plug-and-play PoE solution designed for mobile and remote deployments, and when compact size, simplicity and DC compatibility are priorities. As with any mobile power solution, follow the manufacturer’s installation guidance on fusing, cable gauge and earthing to get the best performance and to protect your investment.
