Aico Ei170RF RadioLINK Alarm Kit for the Deaf & Hard of Hearing – Strobe & Vibrating Pad – SKU: Ei170RF

The Aico Ei170RF RadioLINK Alarm Kit for the Deaf & Hard of Hearing (SKU: Ei170RF) is a specialised fire and CO alerting system designed to protect individuals with hearing loss by providing visual and tactile warning signalswhen an alarm is triggered. Featuring a high-intensity Xenon strobe light and a powerful vibrating pillow pad, this wireless kit offers vital peace of mind, especially while sleeping or during quiet times when audible alarms may go unnoticed.

Fully RadioLINK compatible, the Ei170RF kit wirelessly interconnects with Aico alarms from the 3000 Series, Ei2110e Multi-Sensor, 160e and 140e Series, and RadioLINK-enabled Carbon Monoxide alarms. It provides a mains-powered solution with battery backup, ideal for bedrooms and living spaces where safety and accessibility are essential.

Key Features:

• Brand: Aico

• Model SKU: Ei170RF

• Power Supply: 230V AC with sealed lead acid rechargeable battery backup

• Alert Methods:

  • Xenon strobe light – 0.8Hz flash rate

  • Vibrating pillow pad – placed under pillows or mattresses

• Wireless Interconnect: Compatible with all Aico RadioLINK and RadioLINK+ devices

• Indicators:

  • Power – Green LED

  • Alarm – Red LED

  • Fault – Amber LED

  • RF status – Blue LED (including House Code feedback)

• Test Button: Integrated button checks strobe, pad, and sends test signal to all interconnected alarms

• Installation: Wall or surface mounted with included 4m low voltage cable and mains transformer

• Auxiliary Outputs:

  • 2x 12V/200mA sockets for additional strobes (Ei178) or vibration pads (Ei174)

  • Clock input for use with alarm clocks

• Operating Temperature: 4°C to 40°C

• Humidity Range: 0% to 90% RH

• RF Frequency: 868MHz band

• RF Range: Up to 30m in typical residential settings

• Dimensions:

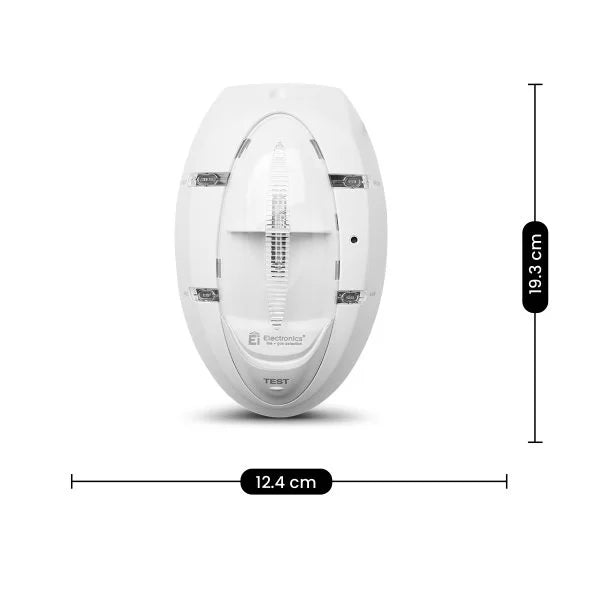

  • Control Unit: 195mm x 125mm x 75mm

  • Mains Adapter: 60mm x 50mm x 90mm

• Weight: Control Box – 770g, Adapter – 600g

• Approvals: CE marked, R&TTE compliant, EMC and Low Voltage certified

• Warranty: 5-year manufacturer guarantee

• Made in Ireland

Comprehensive Alerting for Hearing-Impaired Residents

The Ei170RF ensures that individuals who are deaf or hard of hearing are alerted in the event of fire or carbon monoxide detection—even while sleeping. When any linked RadioLINK alarm is triggered, the system sends a wireless signal to the control unit, which activates the strobe light and pillow pad. These clear and distinct alerts help occupants take immediate action.

Its compatibility with Smoke, Heat, and CO alarms makes it ideal for multi-threat detection setups across any home or supported housing environment.

Ideal for:

• Bedrooms – Pillow pad provides strong pulsed vibration to wake users

• Living Rooms – Strobe alert provides visible flashing indicator during the day

• Accessible Housing – Ideal for assisted living and special needs properties

• Landlord Compliance – Supports inclusive safety measures in HMO properties

Example Use Case: Accessible Safety in a Family Home

A family installs interconnected Aico smoke, heat, and CO alarms throughout their home. One family member is deaf and sleeps in a rear bedroom. The Ei170RF kit is installed in the room, with the vibrating pad under their pillow and strobe mounted on the wall. When a fire alarm is triggered in the kitchen, the system instantly alerts the control unit, flashing the strobe and activating the pillow pad—waking the occupant immediately and ensuring they are aware of the emergency, even without sound.

Simple Installation & Flexible System Expansion

The Ei170RF can be added to any Aico RadioLINK setup without additional wiring, reducing installation disruption. It comes factory coded and requires simple House Coding to securely pair with your alarm system. Up to 12 RadioLINK devices can be part of a single system, and the kit includes auxiliary outputs to expand with additional strobes or padsif needed.

The Aico Ei170RF RadioLINK Alarm Kit for the Deaf & Hard of Hearing (SKU: Ei170RF) is an essential, life-saving solution that combines tactile, visual, and wireless technology to make home safety inclusive for everyone. Whether installed in homes, care facilities, or rented properties, this robust alerting system ensures every resident is protected—no matter their hearing ability.
