Aico Ei3014 Heat Alarm – High-Performance Thermistor Sensor – Ei3014, Ei3000MRF Compatible

The Aico Ei3014 Heat Alarm is a purpose-built fire safety solution designed to detect rapid heat increases in high-risk environments like kitchens and garages, where smoke alarms may be prone to false triggers. Featuring Aico’s trusted Thermistor Heat Sensor, the Ei3014 activates precisely at 58°C, delivering fast and reliable fire detection with exceptional resistance to steam and cooking-related nuisance alarms.

SKU Included: Ei3014
Compatible Module SKU: Ei3000MRF (for SmartLINK wireless connectivity and data extraction)

Intelligent Heat Detection for Kitchens and Garages

Unlike conventional smoke alarms, the Aico Ei3014 is engineered to sense significant heat build-up rather than smoke particles. This makes it an excellent choice for areas such as kitchens, where steam and cooking fumes could frequently trigger false alarms, and garages, where ambient smoke from engines or equipment could be misread by optical sensors.

For example, in a modern kitchen using gas cooktops and ovens, the Ei3014 monitors the environment for abnormal heat increases. If a pan fire begins to escalate, the Thermistor sensor quickly detects the temperature reaching 58°C and immediately sounds a loud 85dB alarm, ensuring swift evacuation and emergency response.

Core Product Features:

• Brand: Aico

• Model SKU: Ei3014

• Sensor Type: Thermistor Heat Sensor (activates at 58°C)

• Power Source: 230V AC mains powered

• Backup Power: Integrated 10-year rechargeable lithium battery

• Alarm Volume: 85dB(A) at 3 metres

• False Alarm Resistance: Designed to avoid smoke and steam triggers

• Smart Features: AudioLINK+ data extraction and SmartLINK compatibility

• Interconnectivity: Fully compatible with other Aico alarms and systems (hardwired or wireless with Ei3000MRF)

• Installation: Comes with an easi-fit base for hassle-free mounting

• Standards & Compliance: Grade D1, compliant with Scottish fire safety legislation

• Warranty: 10-year manufacturer guarantee

AudioLINK+ Smart Diagnostics

The Ei3014 Heat Alarm includes AudioLINK+ technology, enabling the extraction of real-time performance and historical data using a smartphone or tablet. This is especially valuable for landlords, housing managers, or safety inspectors who need to maintain compliance logs or diagnose performance remotely.

Users can generate reports that include sensor status, activation dates, and battery life, all without needing to remove the alarm from the ceiling. This diagnostic data can be easily emailed and archived for property records.

SmartLINK Integration (Optional)

By fitting the Ei3000MRF module, the Ei3014 becomes part of a smart wireless system. The SmartLINK network allows multiple Aico alarms to communicate across a property and send real-time alerts to a central platform via the SmartLINK Gateway and Portal. This enables full control and visibility of fire safety status for landlords and housing associations managing multi-unit properties.

Technical Specifications:

• Sensor Type: Thermistor, triggers at 58°C

• Supply Voltage: 230V AC, 50Hz

• Standby Power Consumption: 0.25W

• Battery Backup: Long-life lithium cell (10-year lifespan)

• Memory Function: Stores last alarm event

• LED Indicators:

  • Green = Power

  • Red = Alarm/Silence/Memory

  • Yellow = Fault

• Operating Temperature: -10°C to 40°C

• Humidity Range: 15% to 95% RH (non-condensing)

• Material: UL 94 V0 flame-retardant HIP plastic

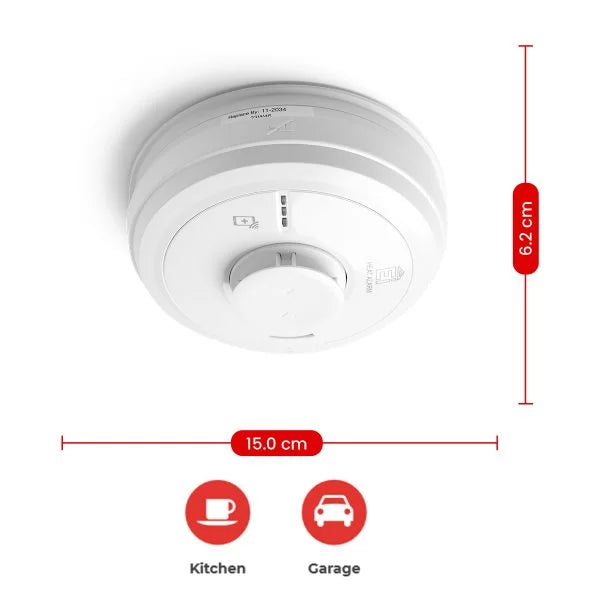

• Dimensions: 150mm x 66mm (product), 155mm x 155mm x 70mm (boxed)

• Weight: 308g (product), 383g (boxed)

Example Use Case

In a residential garage fitted with a gas boiler and power tools, the environment may contain occasional fumes or dust, unsuitable for optical smoke detection. Installing the Aico Ei3014 Heat Alarm ensures the system is responsive only to true fire threats, not environmental byproducts, offering robust protection while minimising nuisance activations.

With its advanced heat detection, intelligent data capabilities, and optional wireless interconnectivity via Ei3000MRF, the Aico Ei3014 Heat Alarm (SKU: Ei3014) is a future-ready solution for property owners, installers, and landlords seeking dependable, compliant fire protection in high-heat risk zones.
