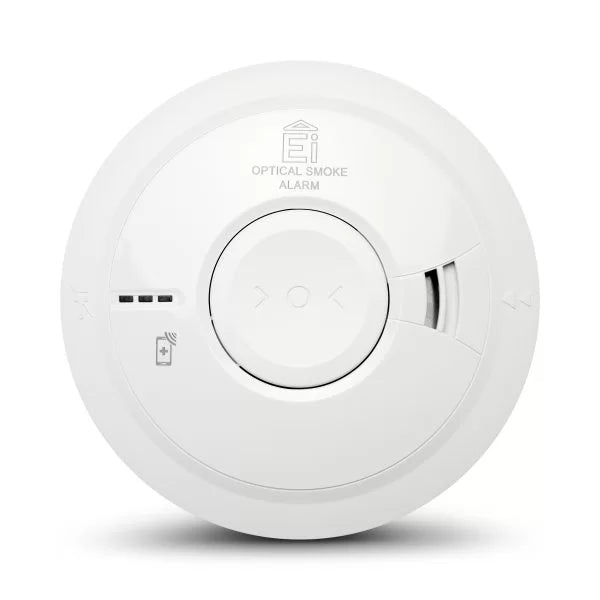

Aico Ei3016 Optical Smoke Alarm – High-Performance Sensor – Ei3016, Ei3000MRF Compatible

The Aico Ei3016 Optical Smoke Alarm is a premium-grade, mains-powered alarm designed to detect slow, smouldering fires in domestic settings such as bedrooms, living rooms, dining rooms, hallways, and landings. Powered by Aico’s commitment to innovation and safety, this alarm integrates advanced detection technology, smart data features, and industry-leading reliability—making it a cornerstone of any home fire protection system.

Product SKU: Ei3016
Compatible Module SKU: Ei3000MRF (enables SmartLINK wireless connectivity)

Superior Optical Detection for Domestic Fire Safety

At the heart of the Ei3016 is Aico’s high-performance Optical Sensor, specifically tuned to identify the large smoke particles typically produced by smouldering fires. This makes it ideal for areas where furniture, electrical appliances, and fabrics could ignite slowly, giving off smoke before flames appear.

For example, if an electrical device in a bedroom begins to overheat and smoulder, the Ei3016’s optical sensor detects this early-stage smoke and activates the 85dB alarm before the fire develops into a more dangerous situation—buying valuable time for evacuation or fire suppression.

Key Product Features:

• Brand: Aico

• Model SKU: Ei3016

• Sensor Type: Optical (ideal for detecting slow-burning fires)

• Power Source: 230V AC mains powered

• Battery Backup: Built-in 10-year rechargeable lithium battery

• Alarm Volume: 85dB(A) at 3 metres

• Smart Data Features: AudioLINK+ for diagnostics, SmartLINK compatible with Ei3000MRF

• False Alarm Reduction: Advanced dust compensation & insect screen

• Installation: Includes easi-fit base

• Compliance: Grade D1, meets Scottish fire safety legislation

• Warranty: Backed by a 10-year manufacturer guarantee

AudioLINK+ Smart Diagnostics

The built-in AudioLINK+ feature transforms the Ei3016 into a smart diagnostics device. Using a mobile app and the alarm’s own sounder, you can extract real-time data such as sensor status, activation dates, and overall alarm health. This is particularly beneficial for property managers, landlords, and safety inspectors who require audit-ready data without dismantling the alarm.

The report can be generated and emailed directly from your mobile device, streamlining property compliance and maintenance processes.

SmartLINK Wireless Integration (Optional)

By inserting the Ei3000MRF module, the Ei3016 joins Aico’s SmartLINK network—a wireless system that allows alarms to communicate across a property. From real-time alerts to remote data extraction and automatic fault reporting, this system enhances safety and efficiency, especially in multi-unit residential buildings or housing associations.

Dust & Insect-Resistant Sensor Chamber

The Ei3016 is designed to minimise false alarms with a unique self-monitoring dust compensation mechanism. The optical sensor continuously analyses dust accumulation and adjusts its sensitivity to ensure accurate performance even in environments prone to airborne particles. An integrated insect screen further protects the sensor, reducing the chance of insects or debris triggering the alarm.

Technical Specifications:

• Standby Consumption: 0.25W

• Silence Functions: 10-minute alarm silence, 12-hour fault tone silence

• LED Indicators:

  • Green = Power

  • Red = Alarm/Silence/Memory

  • Yellow = Fault

• Memory: Stores the last alarm event for diagnostic checks

• Operating Temp: -10°C to +40°C

• Humidity Range: 15%–95% RH (non-condensing)

• Plastic Housing: Flame-retardant UL 94 V0 rated

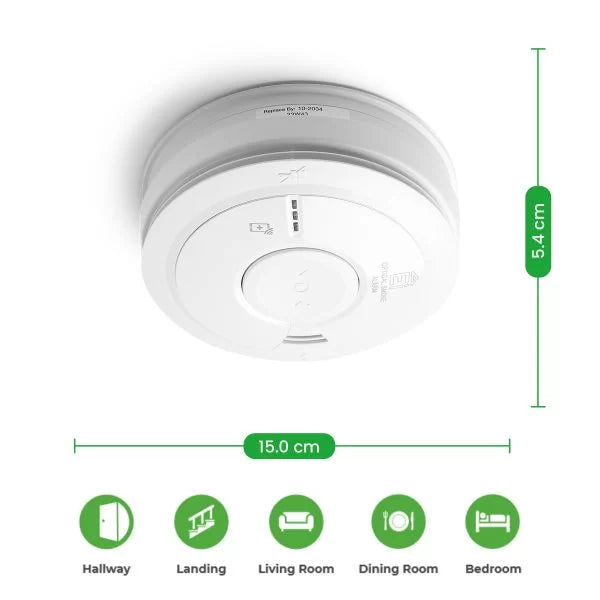

• Dimensions:

  • Product: 150mm x 63mm

  • Boxed: 155mm x 155mm x 65mm

• Weight: 336g (product), 383g (boxed)

Ideal Use Case

Imagine a lounge with upholstered furniture and electrical equipment like televisions and consoles. In the event of a fault causing a slow ignition, the Ei3016 Optical Smoke Alarm quickly detects the smoke long before the fire escalates. Its high sensitivity and smart data features make it a vital component in proactive fire prevention.

The Aico Ei3016 Optical Smoke Alarm (SKU: Ei3016) offers top-tier fire detection performance, reduced false alarms, and modern connectivity options through the Ei3000MRF SmartLINK module. Whether upgrading a single room or integrating into a full home safety system, it delivers intelligent, compliant, and future-proof protection.
