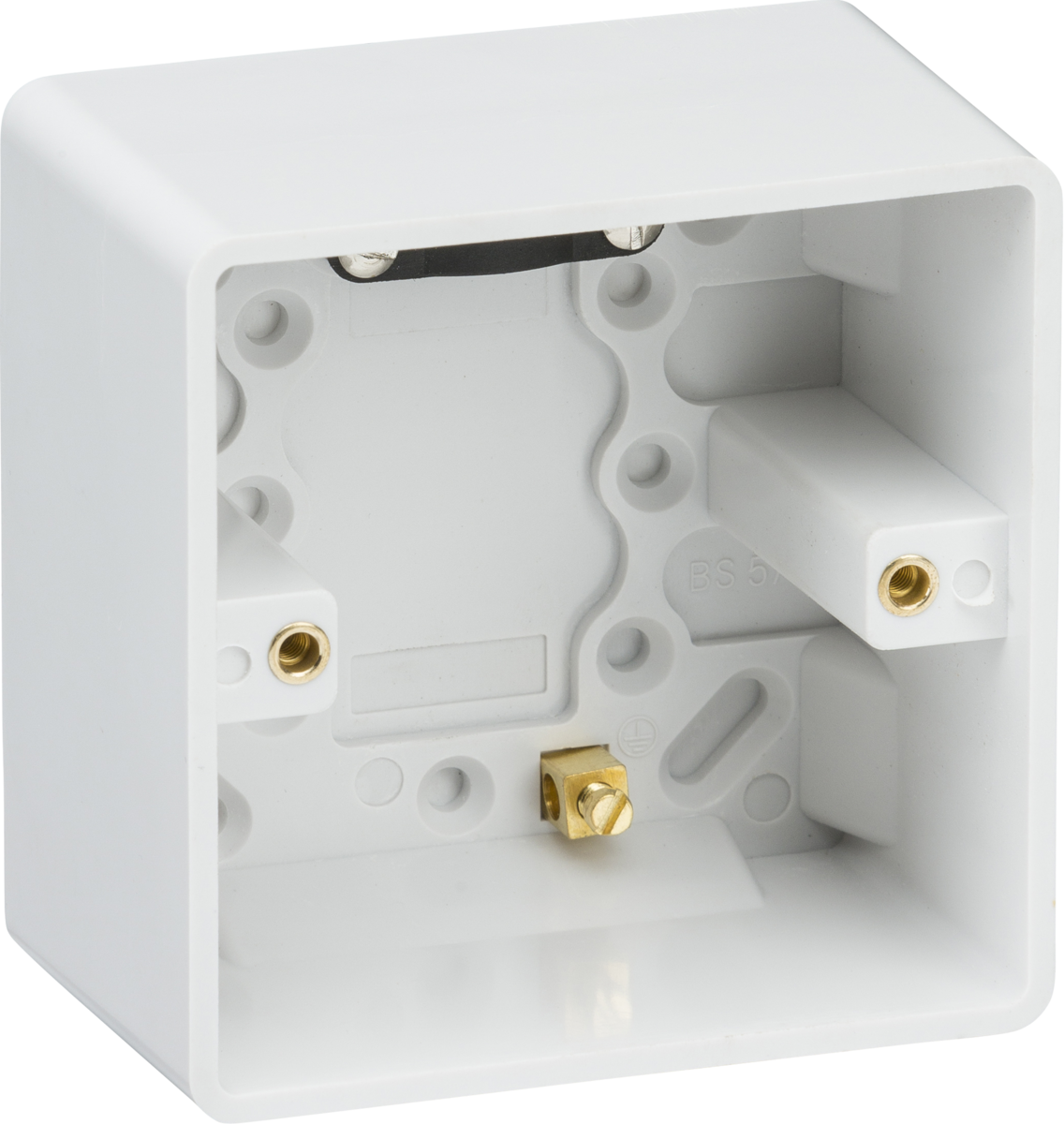

Single 47mm Pattress Box with Earth Terminal (Sold in packs of 10)
Introducing the Knightsbridge Curved Edge Single 47mm Pattress Box, designed with efficiency and functionality in mind:
- Rounded edge compatible with the Knightsbridge Curved Edge (CU) series.
- Complete with an earth terminal for safe connections.
- Cable strain relief included to reduce wire stress.
- Ideal for both DIY and commercial installations.
- Supplied bulk packed in Knightsbridge inner cartons.
Meets UK compliance standards. Ensure proper installation to guarantee performance.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | White |
---|---|
IP Rating | IP20 |
Construction | Thermoset resin |

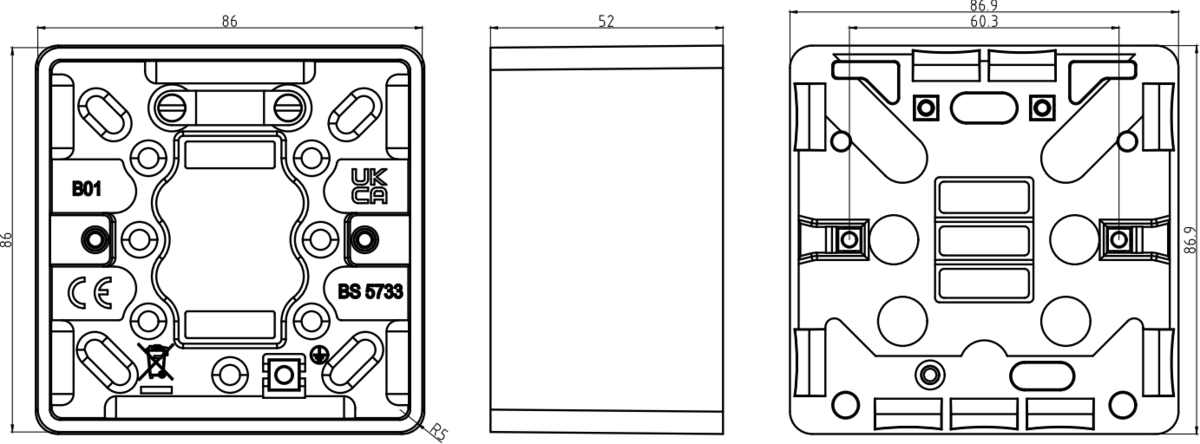

Dimensions
Width | 86 mm |
---|---|
Height | 86 mm |
Recessed Depth | 47 mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
Single 47mm Pattress Box with Earth Terminal (Sold in packs of 10) features

Knightsbridge Curved Edge Single Pattress Box, 47mm, Earth Terminal, White, IP20, CU1610 (Sold in packs of 10)
