Product Overview & Key Benefits

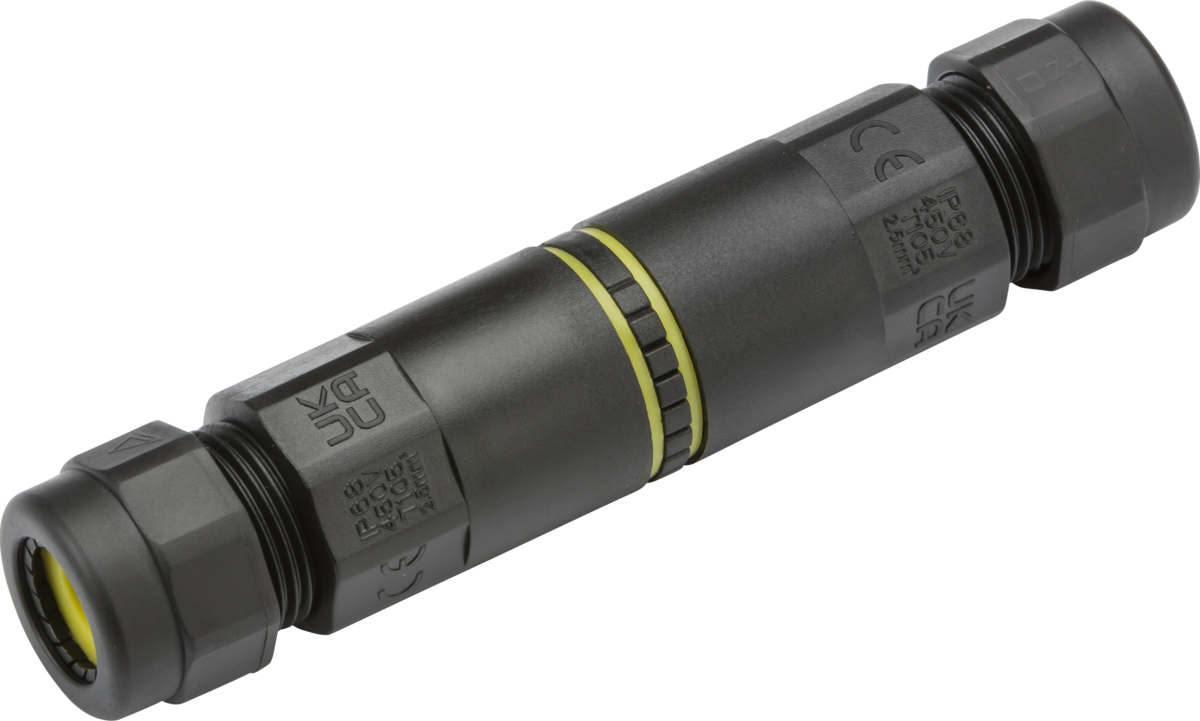

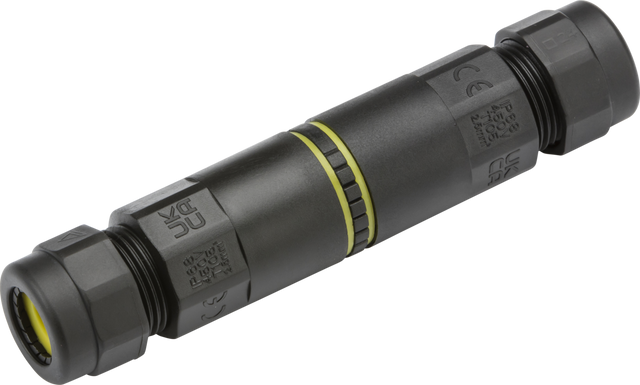

The IP68 Weatherproof Inline Connector with Lever Terminals is designed for quick and reliable electrical connections, suitable for both indoor and outdoor applications. With its robust construction and IP68 rating, this connector is perfect for outdoor areas and underwater installations, making it a top choice for electrical projects requiring durability and protection against water ingress.

Technical Specifications & Product Details

• Current Rating:Max 24A
• Voltage Rating:250V/450V PTI 250, T85
• IP Rating:IP68 (@5 bar)
• Material:PA66, V-0, 960°C
• Temperature Range:-30°C to 85°C
• Cable Diameter:Minimum 5mm, Maximum 14mm
• Barometric Pressure:86-106 kPa
• Installation:Tool-free installation using lever terminals
• Manufacturer's Part Number:JB0013

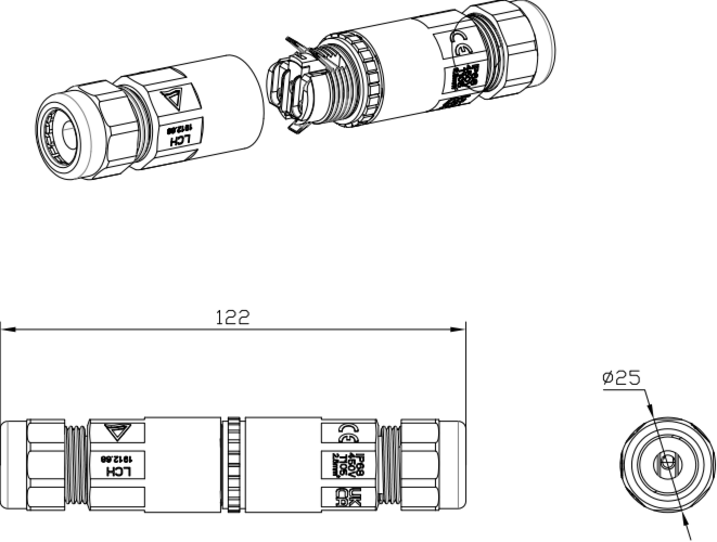

• Size:Length 122 mm, Diameter 25 mm
• Cable Compatibility:For use with H07RNF 3G 0.75mm² - 2.5mm² cable
• Weight:0.07 kg

Ideal Uses & Applications

This connector is ideal for a variety of applications including outdoor lighting, garden electrics, and underwater connections. Its weatherproof construction makes it suitable for residential and commercial use, ensuring reliable connections in demanding environments such as tunnels, damp basements, or other areas exposed to moisture.

Energy Efficiency & Cost Savings

Utilising high-quality materials and manufacturing processes, the IP68 Weatherproof Inline Connector is designed to minimize energy loss, thus improving overall energy efficiency. By investing in this high-performing connector, users can ensure longevity and reliability in their electrical setups, potentially reducing maintenance costs over time.
