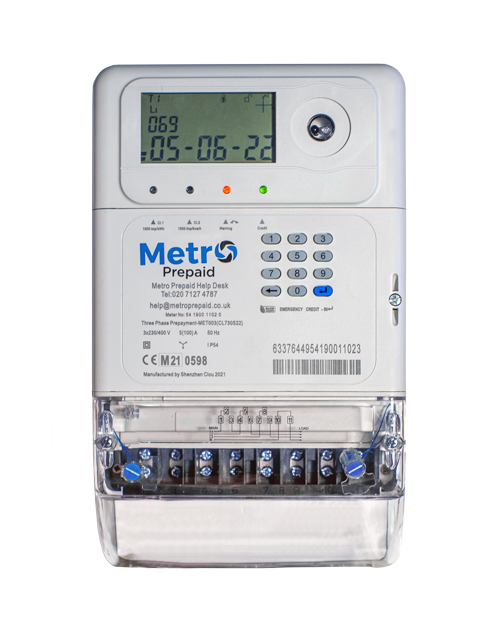

MET003 Three-Phase Digital Prepaid Meter (100A)​

£ 81 00
(Incl. VAT) RRP: £89.99
WME Care
0
About this product

The MET003 Digital Prepaid Electricity Meter is a three-phase, encryption-enabled prepayment meter designed for landlords, property managers, and businesses seeking efficient energy management solutions. With integrated PayPoint vending for power codes, it ensures seamless and secure electricity top-ups.

Key Features:
  • MID Certified: Complies with the European Measuring Instruments Directive for accuracy and reliability.
  • IEC Class 1 Accuracy: Ensures precise energy measurement, essential for accurate billing.
  • 100A Maximum Current: Suitable for high-demand applications, accommodating substantial electrical loads.
  • Emergency Credit Function: Provides users with temporary credit to prevent unexpected power interruptions.
  • Silent Low Credit Warning: Discreetly alerts users when their credit is running low, prompting timely top-ups.
  • Tamper Resistance: Features advanced security measures to detect and prevent unauthorized access or tampering.
  • IP54 Protection Rating: Offers protection against dust and splashing water, ensuring durability in various environments.
  • PayPoint Integration: Allows for seamless vending of power codes through the extensive PayPoint network.
  • Private EV Charging Compatibility: Ideal for metering and managing energy usage for private electric vehicle charging stations.
Technical Specifications:
  • Wiring Mode: 3P4W L1L1L2L2L3L3NN
  • Basic Current (Ib): 5A
  • Maximum Current (Imax): 100A
  • Starting Current (0.4% Ib): 20mA
  • Nominal Voltage (Un): 3 x 230/400V
  • Voltage Range: 80% Un ~ 120% Un
  • Frequency (fn): 50Hz ± 5%
  • Accuracy Class: Active IEC Class 1.0 | Reactive IEC Class 2.0
  • Pulse Constant: Active 1000 imp/kWh | Reactive 1000 imp/kvarh
  • Voltage Circuit Power Consumption: ≤2W 10VA
  • Current Circuit Power Consumption: ≤4VA
  • Working Temperature: -25ºC to 70ºC
Use Cases:
  • Landlords & Property Managers: Monitor and manage tenant electricity usage effectively, ensuring accurate billing and reducing disputes.
  • Commercial Properties: Ideal for offices, retail spaces, and industrial units requiring reliable energy monitoring.
  • Private EV Charging: Efficiently meter electric vehicle charging stations, allowing for accurate tracking of energy usage.
Compliance & Safety:
  • Standards: Complies with MID and IEC Class 1 standards for accuracy and reliability.
  • Installation: Must be installed by a qualified electrician in accordance with local wiring regulations.
  • Safety Notes: Ensure proper installation to maintain tamper resistance and IP54 protection. Regular inspections are recommended to ensure ongoing compliance and functionality.
£ 81 00
WME Care
Get breakdown support
Add a WME Care Plan
Warranty plans available. See terms
Ships from United Kingdom
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Model
MET003
Type
Three-Phase Digital Prepaid Meter
Phase
Three Phase
Current Rating
100A
Voltage Rating
3 x 230/400V
Voltage Range
80% Un ~ 120% Un
Frequency
50Hz ± 5%
Accuracy Class
Active IEC Class 1.0 | Reactive IEC Class 2.0
Pulse Constant
Active 1000 imp/kWh | Reactive 1000 imp/kvarh
Power Consumption (Voltage Circuit)
≤2W 10VA
Power Consumption (Current Circuit)
≤4VA
Starting Current (0.4% Ib)
20mA
Tamper Resistance
Yes
Emergency Credit
Yes
Low Credit Warning
Silent Notification
Protection Rating
IP54
Vending System
PayPoint Integrated
Private EV Charging Compatibility
Yes
Installation Requirement
Qualified Electrician Required
Operating Temperature Range
-25ºC to 70ºC
Compliance
MID Certified, IEC Standards
Product-details
Product Code
MET003
Type
Three-Phase Digital Prepaid Meter
Application
Residential, Commercial, Industrial, Multi-Tenant Sub-Metering
Mounting
Wall Mounted
Tamper Resistance
Advanced Anti-Tamper Protection
Electrical-specifications
Phase
Three Phase
Current Rating
100A
Voltage Rating
3 x 230/400V
Voltage Range
80% Un ~ 120% Un
Frequency
50Hz
Accuracy Class
Active IEC Class 1.0 | Reactive IEC Class 2.0
Meter Constant
Active 1000 imp/kWh | Reactive 1000 imp/kvarh
Power Consumption (Voltage Circuit)
≤2W 10VA
Power Consumption (Current Circuit)
≤4VA
Starting Current (0.4% Ib)
20mA
Features
Emergency Credit
Yes
Low Credit Warning
Silent Notification
Vending System
PayPoint Integrated
Protection Rating
IP54 (Dust & Splash Resistant)
Private EV Charging Compatibility
Yes
Installation-requirements
Qualified Electrician Required
Yes
Compliance
MID Certified, IEC Standards
Operating Temperature Range
-25ºC to 70ºC
Safety Notes
Must be installed following local wiring regulations

Specifications

Model MET003
Type Three-Phase Digital Prepaid Meter
Phase Three Phase
Current Rating 100A
Voltage Rating 3 x 230/400V
Voltage Range 80% Un ~ 120% Un
Frequency 50Hz ± 5%
Accuracy Class Active IEC Class 1.0 | Reactive IEC Class 2.0
Pulse Constant Active 1000 imp/kWh | Reactive 1000 imp/kvarh
Power Consumption (Voltage Circuit) ≤2W 10VA
Power Consumption (Current Circuit) ≤4VA
Starting Current (0.4% Ib) 20mA
Tamper Resistance Yes
Emergency Credit Yes
Low Credit Warning Silent Notification
Protection Rating IP54
Vending System PayPoint Integrated
Private EV Charging Compatibility Yes
Installation Requirement Qualified Electrician Required
Operating Temperature Range -25ºC to 70ºC
Compliance MID Certified, IEC Standards

Product-details

Product Code MET003
Type Three-Phase Digital Prepaid Meter
Application Residential, Commercial, Industrial, Multi-Tenant Sub-Metering
Mounting Wall Mounted
Tamper Resistance Advanced Anti-Tamper Protection

Electrical-specifications

Phase Three Phase
Current Rating 100A
Voltage Rating 3 x 230/400V
Voltage Range 80% Un ~ 120% Un
Frequency 50Hz
Accuracy Class Active IEC Class 1.0 | Reactive IEC Class 2.0
Meter Constant Active 1000 imp/kWh | Reactive 1000 imp/kvarh
Power Consumption (Voltage Circuit) ≤2W 10VA
Power Consumption (Current Circuit) ≤4VA
Starting Current (0.4% Ib) 20mA

Features

Emergency Credit Yes
Low Credit Warning Silent Notification
Vending System PayPoint Integrated
Protection Rating IP54 (Dust & Splash Resistant)
Private EV Charging Compatibility Yes

Installation-requirements

Qualified Electrician Required Yes
Compliance MID Certified, IEC Standards
Operating Temperature Range -25ºC to 70ºC
Safety Notes Must be installed following local wiring regulations

MET003 Three-Phase Digital Prepaid Meter (100A)​ features

MET003 Metro Digital Prepaid Three-Phase Electricity Meter, 100A, IP54,

MET003 Metro Digital Prepaid Three-Phase Electricity Meter, 100A, IP54,

Metro Digital Prepaid Meter (MET003) – Advanced Three-Phase Energy Management

The Metro Digital Prepaid Meter (MET003) is a high-performance, three-phase electricity meter designed for landlords, property managers, and businesses seeking efficient energy management solutions. This prepayment meter features integrated PayPoint vending for secure and convenient electricity top-ups, ensuring precise energy monitoring and billing.

Product Overview & Key Benefits

The MET003 is an advanced prepaid electricity meter that offers accurate billing, prevents disputes, and promotes energy-conscious consumption. With MID certification and a 100A current rating, it is perfect for both residential and commercial applications, including private EV charging.

Key Benefits:
Starting Current (0.4% Ib): 20mA

Nominal Voltage (Un): 3 x 230/400V

Voltage Range: 80% Un ~ 120% Un

Frequency (fn): 50Hz ± 5%

Accuracy Class: Active IEC Class 1.0 | Reactive IEC Class 2.0

Pulse Constant: Active 1000 imp/kWh | Reactive 1000 imp/kvarh

Voltage Circuit Power Consumption: ≤2W 10VA

Current Circuit Power Consumption: ≤4VA

Working Temperature: -25ºC to 70ºC

Ideal Uses & Applications

The MET003 prepaid meter is a powerful and versatile electricity management solution designed for various applications, ensuring fair and transparent billing.

Common Use Cases:

Landlords & Property Managers: Accurately track tenant electricity usage and eliminate billing disputes.

Commercial & Industrial Use: Ideal for workshops, factories, and offices requiring three-phase power monitoring.

Multi-Tenant Buildings: Essential for sub-metering shared power usage in large residential or mixed-use buildings.

Private EV Charging: Enables precise energy tracking for electric vehicle charging stations.

Energy Efficiency & Cost Savings

By using a prepaid system, the Metro Digital Prepaid Meter (MET003) ensures responsible electricity consumption, preventing waste and unexpected bills.

Key Cost-Saving Benefits:

Prepaid System Prevents Overuse: Encourages users to be more conscious of their electricity consumption.

Prevents Unexpected Bills: Users only pay for the energy they have already purchased.

Accurate Power Monitoring: Ensures fair and transparent billing, reducing energy disputes.

Supports Private EV Charging: Allows for better control over energy consumption for electric vehicles.

Compliance & Safety

The MET003 meets rigorous UK and EU energy standards, ensuring compliance with safety and measurement regulations.

Compliance Certifications:

MID Certified: Ensures compliance with European metering accuracy standards.

IEC Class 1 & 2: Provides high precision for both active and reactive energy tracking.

IP54 Rated: Protected against dust and splashing water for durability.

Installation & Safety:

Installation Must Be Performed by a Qualified Electrician: Ensures compliance with electrical safety standards.

Secure Mounting Required: Proper installation is necessary to maintain tamper resistance and IP54 protection.

Emergency Credit: Provides a backup to prevent unexpected power disconnections.

Why Choose the Metro Digital Prepaid Meter (MET003)?

The Metro Digital Prepaid Meter (MET003) is an advanced, secure, and user-friendly three-phase electricity meter designed for accurate and efficient prepaid energy management. With integrated PayPoint vending, tamper resistance, and an emergency credit function, this meter is an ideal choice for landlords, businesses, and property managers who require a robust electricity monitoring solution.

Take control of your electricity usage with the Metro Digital Prepaid Meter (MET003) – a secure, reliable, and efficient energy management solution.
