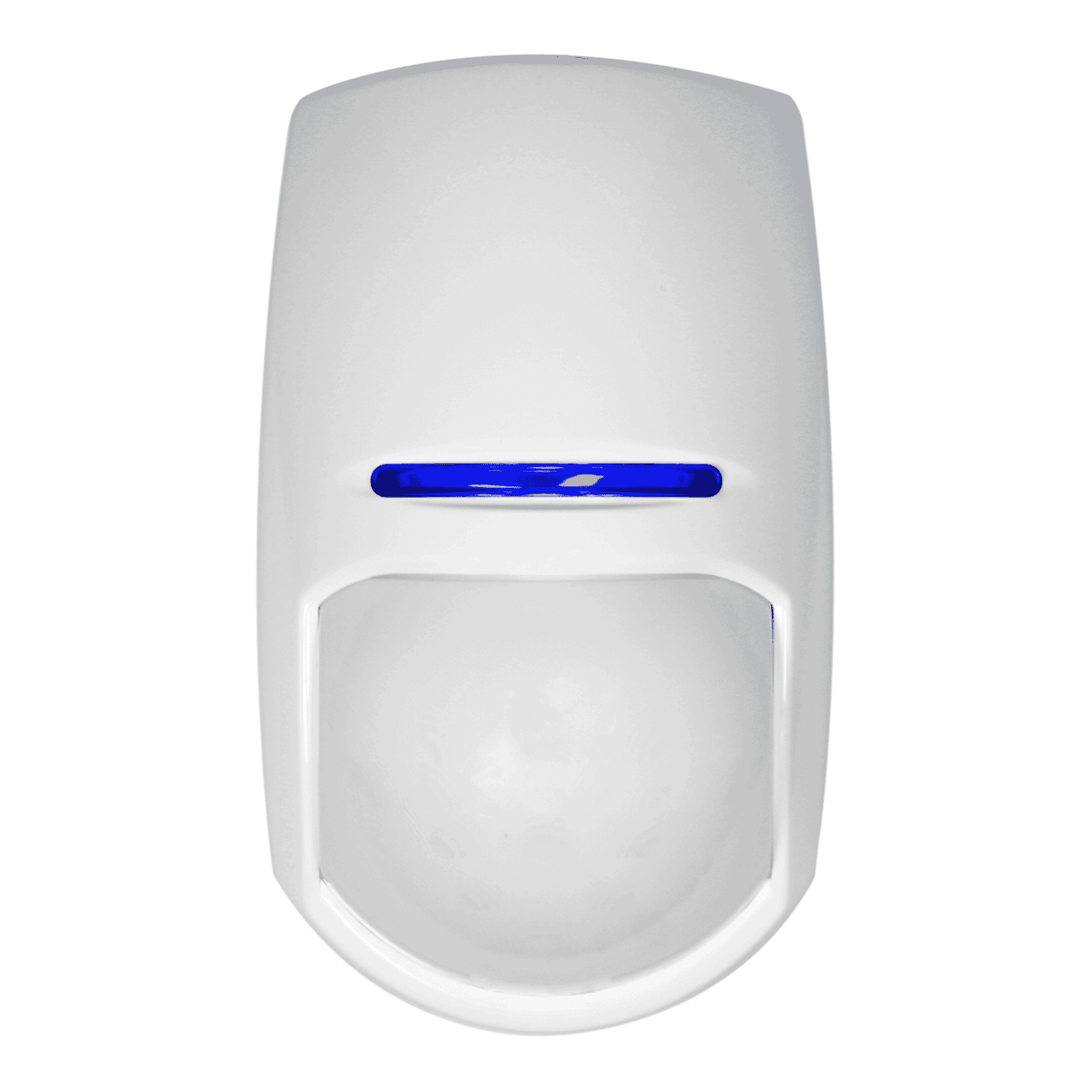

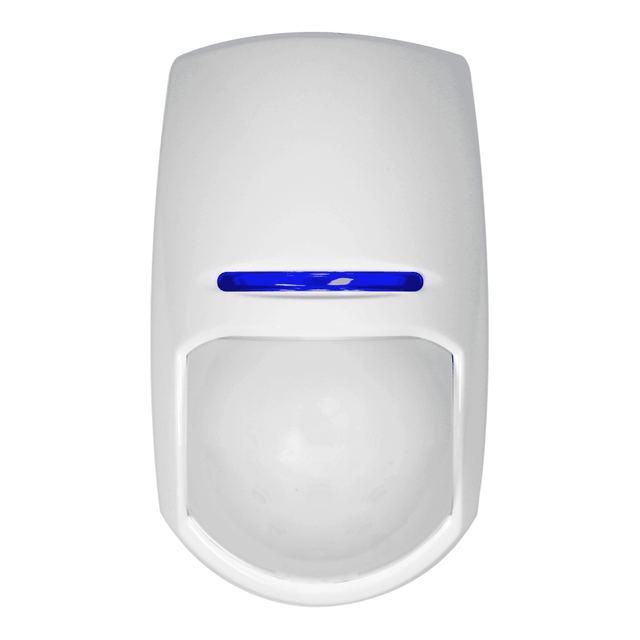

Pyronix KX15DD 15m Dual-Element PIR Detector, Wired, EN50131 Grade 2, FPKX15EDHT

Introduction to the Pyronix KX15DD (FPKX15EDHT)

The Pyronix KX15DD (also referenced as FPKX15ED / KX15DD / FPKX15DD in the family) is a wired, dual-element passive infrared (PIR) volumetric detector designed to provide reliable indoor intruder detection out to 15 m. Built for installers, homeowners and light-commercial operators, this detector combines Pyronix Blue Wave digital signal processing (DSP), automatic temperature compensation and selectable end-of-line (EOL/DEOL) resistor options. Certified to EN50131 Grade 2 and backed by a 5-year manufacturer warranty, the KX15DD balances performance, low false-alarm susceptibility and straightforward installation at a competitive price point (suggested price 5.99/13.99 depending on market and reseller promotions).

Key features at a glance

• Range:Up to 15 m volumetric coverage with approximately 856 coverage angle.
• Sensor type:Dual-element pyroelectric PIR for improved immunity to false triggers.
• Processing:Blue Wave digital DSP with automatic temperature compensation to maintain sensitivity in varying environments.
• EOL/EOL options:Selectable alarm and tamper resistor values to suit a wide range of wired control panels.
• Mounting & tamper:Supplied tamper-proof wall and ceiling brackets; front and rear tamper protection included.
• Certifications & warranty:EN50131 Grade 2, CE marked, 5-year manufacturer warranty.

Detailed specifications and benefits

• Dual-element PIR:Two-segment pyroelectric sensor reduces false alarms from small heat sources or single-zone activations, requiring a genuine intruder-like signature across elements for an alarm.
• Coverage:Up to 15 m volumetric range and about 856 coverage angle across roughly 60 detection zones distributed in seven planes, giving broad and layered detection for rooms with standard ceiling heights.
• Sealed optics with UV filter:Helps prevent contamination from dust, insects and UV exposure, stabilising performance over time and reducing nuisance activations.
• Detection speed & sensitivity:Designed to detect movement between 0.3 6 m/s and 3.0 m/s, with selectable sensitivity (Auto, High, Low) and on-board digital temperature compensation to maintain reliable detection in warm or cold conditions.

• Operating voltage:9 6 V DC (typical 13.8 V), compatible with most wired alarm control panels.
• Quiescent current:Approximately 13 16 mA at 12 V, making it energy-efficient for mains-backed alarm systems.
• EOL resistor selection:Multiple selectable alarm resistor values (6.8k, 5.6k, 4.7k, 2.2k, 1kΩ) and tamper options simplify wiring to panels and make integration with different zone supervision schemes straightforward.
• Tamper rating & output:Tamper contact and relay output ratings suitable for typical control panel inputs (relay 50 mA @ up to 60 V DC/42 VAC RMS).

• Dimensions:Compact 117 × 69 × 50 mm footprint and lightweight (approx. 125 g without bracket), making it easy to position discreetly in homes and small businesses.
• Mounting:Wall or ceiling mounting using supplied tamper-proof brackets; the kit includes both wall and ceiling options for installation flexibility.
• Standards & warranty:EN50131-2-4 / EN50131-1 (Grade 2) compliant, CE marked and supported by a 5-year Pyronix warranty for peace of mind.

Benefits in practical terms

• Reduced false alarms:Blue Wave DSP and dual-element sensing reduce nuisance triggers from pets (within limits), heating vents, or small localized heat sources compared with single-element PIRs.
• Flexible installation:Selectable EOL resistors and included mounting brackets speed up wiring and minimise the need to carry extra components during installations.
• Longevity and reliability:Sealed optics and UV filtering protect sensitive elements from environmental degradation, ensuring consistent performance over time.
• Cost-effective:At its suggested price, the KX15DD offers an attractive feature set and a high warranty-to-price ratio, making it suitable for larger multi-zone systems where cost per sensor matters.

Use cases and scenarios where the KX15DD excels

• Residential homes:Ideal for living rooms, hallways, stairwells and open-plan areas where volumetric coverage is needed. The dual-element sensor and DSP help reduce false alarms caused by heating, sunlight or small pets under the coverage limit.
• Apartments and multi-occupancy buildings:Compact size, ceiling/wall mounting options, and Grade 2 compliance make it suitable for flats and shared accommodation where a reliable and unobtrusive detector is required.
• Light-commercial environments:Offices, retail stockrooms, small warehouses and storage rooms benefit from 15 m reach and tamper features. The selectable EOL options also simplify integration with common alarm panels used by small businesses.
• New builds and refurbishments:Cost-effective unit for outfitting multiple rooms in new developments, or as part of phased rollouts where consistent sensor performance and simple wiring are priorities.

Comparisons with similar products

• Single-element PIR detectors:Single-element sensors are typically cheaper but more prone to false alarms from localized heat sources or small animals. The dual-element KX15DD provides better discrimination and reliability for only a modest price premium.
• Dual-technology sensors (PIR + microwave):Dual-tech detectors can offer superior false-alarm immunity in challenging environments (glass-fronted entrances, strong drafts), but they tend to be more expensive and consume more power. The KX15DD strikes a middle ground: many installations will find its DSP and optical sealing sufficient without the added cost and complexity of microwave technology.
• Higher-grade detectors (Grade 3+):For high-risk commercial sites or where regulatory requirements demand higher security classifications, Grade 3 detectors and systems are necessary. For most residences and light-commercial applications, the EN50131 Grade 2 rating of the KX15DD is the accepted standard and offers compliant, cost-effective protection.
• Competing brands and models:Compared with similar 15 m dual-element PIRs from other mainstream manufacturers, the KX15DD is competitive on features (sealed optics, temperature compensation, EOL options) and often undercuts rivals on price, especially when purchased in quantity for multi-sensor installs.

Customer feedback and installer impressions

• Installer perspective:"Reliable detection and easy wiring make these detectors a go-to for standard domestic installs. The selectable EOL values save time on-site and the tamper options are solid." — anonymous professional installer (representative feedback).
• Homeowner perspective:"We mounted this in the living room and havent had any false alarms from the heating vents since. Its discreet and sturdy-looking." — representative homeowner comment.
• Small business perspective:"Good coverage for stock rooms. The units optics seem well-sealed; no insect-related nuisance events which were an issue with older sensors." — representative small retailer feedback.
• Note on reviews:These statements reflect typical, anonymised sentiments reported by installers and end users for detectors in this class. Actual experiences will vary depending on installation quality, environment and system configuration.

Installation and safety advice

• Installation should be carried out by a qualified installer in accordance with local codes and the alarm system manufacturers guidelines.
• Confirm the control panels required EOL resistor values before selecting the KX15DDs onboard options, and test the zone supervision after wiring.
• Perform a walk-test after fitting to verify coverage and adjust placement or tilt if required. Avoid pointing the detector directly at heating vents, large windows with direct sun, or areas with frequent strong drafts.

Conclusion: Why choose the Pyronix KX15DD?

The Pyronix KX15DD (FPKX15EDHT) delivers a balanced mix of performance, reliability and value for money in wired PIR volumetric detection. With a 15 m range, dual-element sensing, Blue Wave DSP and sealed optics, it is designed to reduce nuisance alarms while maintaining sensitive, compliant detection for residential and light-commercial applications. Add flexible EOL resistor options, tamper protection, straightforward mounting accessories and a 5-year warranty, and you have a detector that meets the needs of installers and end users alike. For projects where Grade 2 certification, predictable performance and cost efficiency matter, the KX15DD is a strong, well-rounded choice.
