Introduction: What the Ruijie GE‑SFP‑LX20‑SM1310‑BIDI is and why it matters

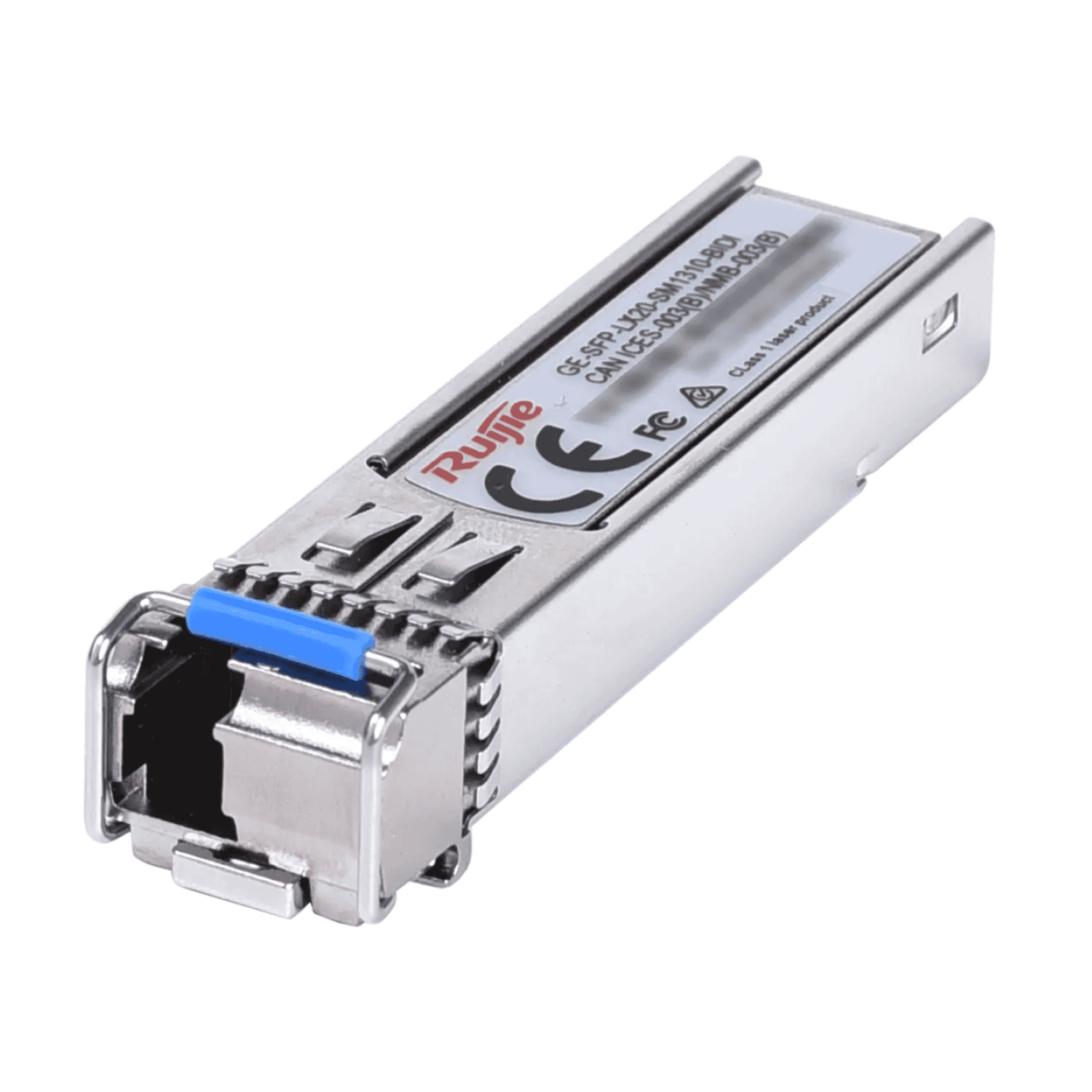

Ruijie GE‑SFP‑LX20‑SM1310‑BIDIis a 1G single‑fibre BiDi SFP optical transceiver designed for single‑mode fibre links up to 20 km. Combining the compact SFP form factor with bidirectional (BiDi) optics, this module transmits at 1310 nm and receives at 1550 nm, allowing two‑way communication over a single fibre strand. It supports IEEE 1000BASE‑LX, includes digital diagnostics (DDM/DOM), and is hot‑pluggable for easy installation.
This product is aimed at network operators, system integrators and IT teams who want to save fibre infrastructure, simplify cabling, and deploy reliable Gigabit Ethernet links in access networks, campus backbones and branch interconnects. With a suggested price of 59.99 (retailer pricing may vary) and a low power draw (≤ 1.5 W), it offers an economical and efficient option for many fiber‑connectivity needs.
Key features at a glance
- Single‑fibre BiDi (simplex LC):Carries Tx and Rx on one fibre strand, reducing cabling requirements.
- 1.25 Gbps data rate:Compatible with 1000BASE‑LX Ethernet.
- 20 km reach:Suited for medium‑range links over single‑mode fibre (SMF).
- DDM/DOM monitoring:Real‑time optical and electrical diagnostics for easier maintenance.
- SFP MSA form factor:Hot‑pluggable and physically compatible with standard SFP slots.
Detailed specifications and benefits
The GE‑SFP‑LX20‑SM1310‑BIDI packs a set of practical specifications that make it a strong choice for many deployments. Below is a concise breakdown of the most relevant technical details and what they mean in real use:
- Fibre type:Single‑mode fibre (SMF) with a simplex LC connector — BiDi operation saves you a fibre strand compared with conventional duplex optics.
- TX / RX wavelengths:Transmit 1310 nm, receive 1550 nm. Note that the remote end must use the complementary Tx1550/Rx1310 module (GE‑SFP‑LX20‑SM1550‑BIDI).
- Reach:Up to 20 km over SMF — suitable for campus links, inter‑building runs, and many metro access scenarios.
- Receiver sensitivity and transmitter power:Typical transmitter power around −5 to 0 dBm and receiver sensitivity < −22 dBm (OMA typical), providing a healthy optical budget for 20 km runs when using good quality fibre.
- Data rate & standard:1.25 Gbps, compatible with IEEE 1000BASE‑LX.
- BER:Designed for Bit Error Rates around 1.0E‑12, delivering reliable packet transport for Ethernet traffic.
- DDM/DOM:Digital Diagnostics Monitoring lets administrators track transmit/receive power, optical bias current, temperature and supply voltage in real time — useful for troubleshooting and SLA monitoring.
- Form factor:SFP (mini‑GBIC), hot‑pluggable — easy to install into compatible switches and routers.
- Power consumption:≤ 1.5 W — low power helps when many ports are populated.
- Operating temperature:0 °C to 70 °C (commercial grade), making it suitable for typical indoor networking environments.
- Safety & compliance:RoHS compliant and Class 1 laser safety certification.
Benefits explained: why these specs matter
Choosing BiDi optics like the GE‑SFP‑LX20‑SM1310‑BIDI delivers tangible operational and cost benefits:
- Fibre savings:By using one fibre instead of two, BiDi modules halve the number of fibre strands needed for a link. This reduces fibre inventory, simplifies cable management and can delay or avoid costly fibre upgrades.
- Space and port efficiency:When fibre count or patch panel space is limited, BiDi solutions let you extend capacity without adding new ducting or panels.
- Operational visibility:DDM/DOM support shortens troubleshooting cycles because you can remotely verify optical levels and module health before dispatching a technician.
- Cost effectiveness:Compared with more advanced or higher‑speed optics, a 1G BiDi SFP is a cost‑efficient way to connect legacy devices or deliver gigabit links where 10G is unnecessary.
Use cases and scenarios where this product excels
- Campus and education networks:Inter‑building links between schools, dormitories and administrative buildings where fibre runs are constrained or existing infrastructure has limited strands.
- SMB and branch connectivity:Linking branch offices or server rooms without the need to install additional fibre cabling.
- Metro access and CCTV/backhaul:Connecting edge devices, IP camera aggregators and access switches where single‑mode fibre is used and distances reach several kilometres.
- Data centre patch consolidation:In scenarios with dense patch panels and cabling congestion, BiDi modules reduce the number of physical patch cables required.
- Upgrade paths:Replacing old 1G optics or adding spare ports cheaply while maintaining management visibility via DDM.
Comparisons with similar products on the market
When comparing the GE‑SFP‑LX20‑SM1310‑BIDI to other optics, consider three main axes: functionality (BiDi vs duplex), reach and ecosystem compatibility.
Standard duplex SFPs use separate fibres for transmit and receive, which is simple and widely supported. BiDi modules like the Ruijie unit save fibre but require a matched pair (opposite Tx/Rx wavelengths) at each end. If fibre availability is the limiting factor, BiDi is typically the better choice.
Many vendors (including major switch manufacturers) accept third‑party SFPs that follow the SFP MSA. Some vendors, however, maintain compatibility lists or may reject non‑approved optics. The GE‑SFP‑LX20‑SM1310‑BIDI uses standard SFP signalling, but always verify compatibility with your switch/router vendor and check whether you need a validated part number.
Compared to higher‑speed modules (10G SFP+, XFP or 10G BiDi), 1G BiDi SFPs are significantly cheaper and consume less power. Against alternative 1G BiDi modules from other manufacturers, pricing and warranty can vary; the Ruijie module is positioned as an economical OEM quality option with DDM support and commercial‑grade operating range.
Customer feedback and reviews
Third‑party reseller pages and installer feedback commonly highlight a few recurring points about this category of BiDi SFPs and the Ruijie model in particular:
- Installers appreciate the simplicity of swapping SFPs to upgrade links without re‑cabling, and value DDM for remote diagnostics.
- Customers migrating older Ethernet links to single‑fibre configurations report reduced cabling complexity and lower material costs.
- Some integrators note that vendor lock‑in on certain switch brands can require purchasing verified optics; confirming compatibility ahead of procurement avoids surprises.
Example testimonial:"We replaced several duplex links with BiDi SFPs and cut our patch cabling in half — installation was fast and DDM helped us pinpoint a degraded fibre before it caused outages."
Practical considerations before you buy
- Pairing:Always use GE‑SFP‑LX20‑SM1310‑BIDI with the complementary GE‑SFP‑LX20‑SM1550‑BIDI (Tx/Rx reversed) at the remote end.
- Compatibility:Verify that your switch or router accepts third‑party SFPs or that you order vendor‑validated modules when required by your hardware vendor.
- Environment:Ensure the operating temperature range matches your deployment environment; this unit is commercial grade (0 °C to 70 °C).
- Warranty:Check retailer warranty and return policies — the module specification here lists no manufacturer warranty included by default, so purchase from a trusted supplier if long‑term coverage is important.
Conclusion: why the GE‑SFP‑LX20‑SM1310‑BIDI is a strong choice
The Ruijie GE‑SFP‑LX20‑SM1310‑BIDI delivers a practical, cost‑effective solution for Gigabit single‑mode links where fibre is at a premium. Its BiDi design reduces fibre usage and simplifies cabling, the SFP form factor keeps deployments flexible, and DDM adds operational transparency that speeds troubleshooting. For campus networks, branch interconnects, CCTV backhaul and many access‑layer applications, this module balances price, performance and manageability.
If you need reliable 1G connectivity over up to 20 km of SMF and want to conserve fibre capacity without giving up monitoring capabilities, the GE‑SFP‑LX20‑SM1310‑BIDI is worth evaluating. Just remember to pair it with the complementary 1550/1310 module at the remote end and confirm compatibility with your network equipment before ordering.
