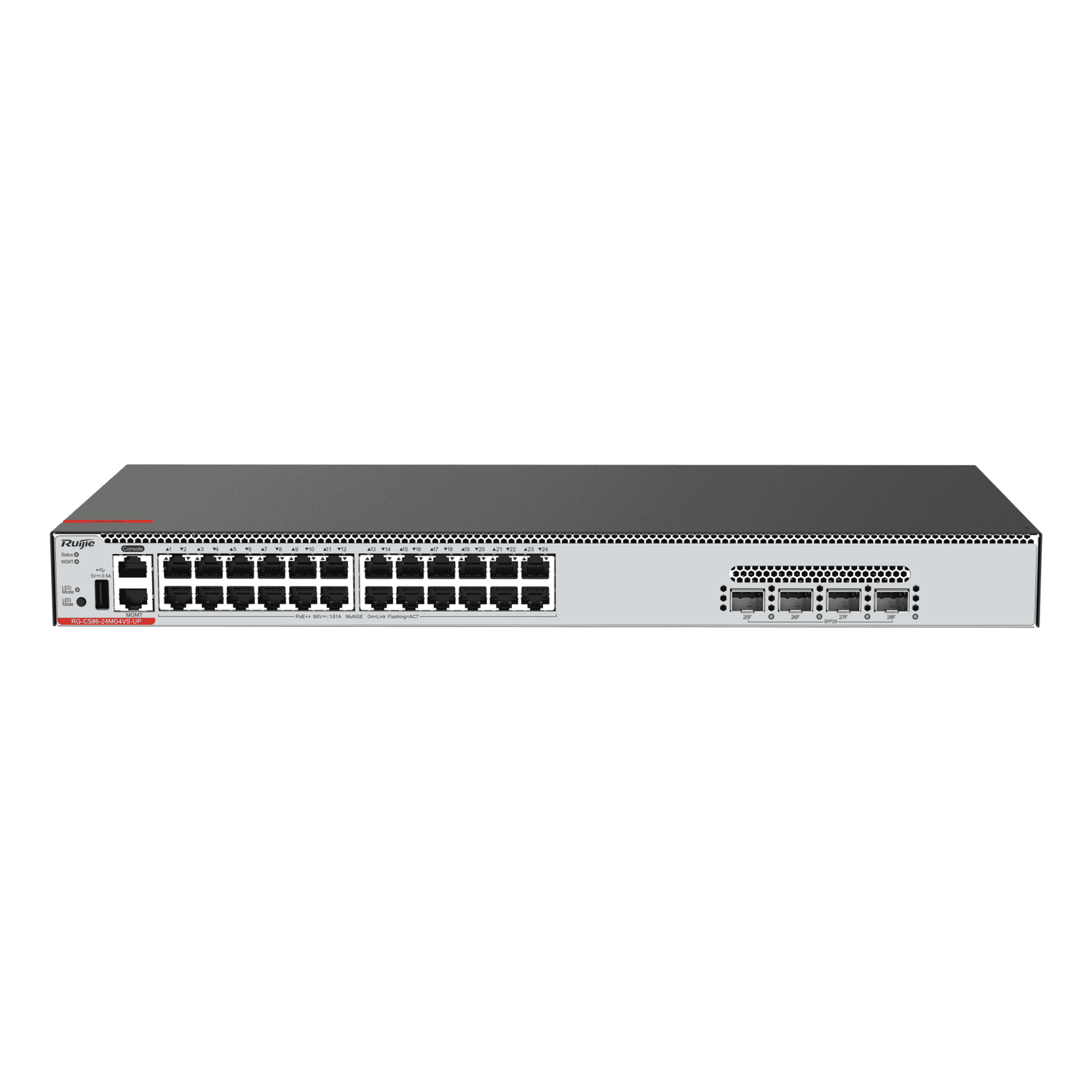

Ruijie RG-CS86-24MG4VS-UP Multi‑Gig 24‑Port PoE++ Switch, 4x SFP28, 440Gbps

Introduction: Meet the Ruijie RG-CS86-24MG4VS-UP

The Ruijie RG-CS86-24MG4VS-UP is a 1U rack-mount, cloud-manageable multi‑Gigabit access/aggregation switch built for modern campus and enterprise networks. It delivers 24 multi‑rate RJ45 access ports (100 Mbps / 1G / 2.5G / 5G) with full PoE/PoE+/PoE++ support, and four SFP28 uplinks that run at 10G or 25G. With a switching capacity of 440 Gbps and robust Layer‑3 capabilities, the RG-CS86-24MG4VS-UP is positioned to handle dense Wi‑Fi AP backhaul, PoE camera arrays, and performance-hungry LAN devices while offering cloud management and virtual stacking for simplified operations.

Key features at a glance

• Multi‑Gig access:24 × 100/1000/2.5G/5G BASE‑T RJ45 ports to support modern endpoints without rewiring.
• High‑speed uplinks:4 × SFP28 slots supporting 10G/25G for flexible aggregation and uplink design.
• PoE++ power:IEEE 802.3af/at/bt support with up to 90 W per port and an aggregate PoE budget of roughly 370 W, ideal for Wi‑Fi 6/7 APs and high‑power cameras.
• Performance:440 Gbps switching capacity and an estimated 327 Mpps forwarding rate to support heavy traffic loads.
• Management:Ruijie Cloud + local CLI/Web/SNMP, zero‑touch provisioning (SON) and VSU virtual stacking for streamlined deployment and operations.
• Layer‑3 & security:Static routing, RIP/OSPF/BGP (per RG‑OS) and comprehensive security features including 802.1x, RADIUS/TACACS, IP‑MAC binding and ACLs.

Detailed specifications and benefits

The RG-CS86-24MG4VS-UP provides 24 multi‑rate RJ45 access ports that auto‑negotiate at 100 Mbps, 1G, 2.5G and 5G. This allows organizations to support a mix of legacy and modern devices—laptops, desktops, switches, and access points—without costly re-cabling. The PoE++ capability (802.3bt) delivers up to 90 W per port, which is particularly valuable when deploying high‑power Wi‑Fi 6/7 access points, PTZ cameras, or edge devices that require more than standard PoE power. The total PoE budget is approximately 370 W (model-dependent), so planning for per‑port draws and overall budget is important for large PoE rollouts.

For uplinks, the four SFP28 slots support both 10G and 25G transceivers. This flexibility helps future‑proof aggregation and distribution, allowing you to scale uplink bandwidth as traffic needs grow.

With a 440 Gbps switching capacity and roughly 327 Mpps forwarding rate, the switch is well-suited for dense AP backhaul and multi‑tenant environments. Hardware tables include a MAC address table of 32,768 entries and an ARP table of around 16,000 entries—sufficient for medium to large access deployments.

Ruijie Cloud management offers zero‑touch provisioning (SON), remote monitoring and simplified policy rollout, which reduces on‑site configuration time. Local management options include CLI, Web GUI and SNMP v1/2/3 for compatibility with traditional NMS tools. VSU virtual stacking allows multiple devices to be managed as a single logical unit, easing configuration and firmware management across an access layer.

The RG‑CS86 supports static routing and dynamic protocols such as RIP, OSPF and BGP when running RG‑OS feature sets, enabling it to function as an access/aggregation switch in environments that need routing at the edge. Security features—802.1x authentication, RADIUS/TACACS support, IP‑MAC binding, ACLs, Control Plane Protection (CPP) and Network Flow Protection Policies (NFPP)—help protect the LAN from lateral threats and unauthorized access.

The fixed AC power supply runs on 100–240 V. The unit is 1U and designed for 19" rack mounting (approximate dimensions 442 × 220 × 43.6 mm, weight ≈ 3.65 kg). Fan modules are fixed; check environment ventilation and heat dissipation when deploying multiple units in a rack. Confirm CE/UKCA and regional certifications before installation and follow recommended earthing and safety procedures.

Typical reseller listings show a 3‑year warranty (terms may vary by seller). Ruijie offers cloud and local support resources; for mission‑critical deployments, validate support SLAs and extended warranty or TAC options with your reseller.

Use cases and scenarios where the RG-CS86-24MG4VS-UP excels

• Campus access layer:Ideal for university and corporate campus buildings where a high density of Wi‑Fi APs and edge devices require multi‑Gigabit access and centralized management.
• High‑density AP backhaul:Wi‑Fi 6/7 APs that support multi‑Gig uplinks and draw substantial power benefit from the switch’s multi‑Gig ports and PoE++ capability.
• PoE camera deployments:PTZ and multi‑sensor cameras that need up to 90 W per port can be powered directly from the switch, eliminating local power supplies.
• Medium enterprise aggregation:Use as a distribution/aggregation device in medium‑sized sites, leveraging 25G uplinks for higher throughput to datacenter or core switches.
• Retail, hospitality and smart buildings:Power and connect point‑of‑sale terminals, kiosks, access control panels and environmental sensors from a single managed device while simplifying remote operations via cloud management.

Comparisons with similar products in the market

When selecting a 24‑port multi‑Gig PoE switch, buyers typically consider several factors: per‑port PoE power, multi‑Gig port support, uplink density and speed, management model (cloud vs on‑prem), Layer‑3 capabilities, and total cost of ownership. The Ruijie RG-CS86-24MG4VS-UP competes strongly in several of these areas:

• PoE capability:Many access switches support 802.3af/at, but fewer provide full 802.3bt (PoE++) at up to 90 W per port. If your deployment uses high‑power APs or cameras, RG‑CS86’s PoE++ is a differentiator.
• Multi‑Gig access:The 2.5G/5G auto‑negotiating ports are standard for modern multi‑gig switches; the RG‑CS86 matches peers in this domain but adds flexible SFP28 uplinks for future scaling to 25G aggregation.
• Uplink flexibility:4 × SFP28 (10G/25G) provides more headroom than models limited to 1G/10G uplinks, making the RG‑CS86 a good choice where uplink bandwidth growth is expected.
• Management:Cloud management (Ruijie Cloud) and VSU virtual stacking simplify multi‑site operations—comparable to other vendors’ cloud-managed offerings. If you prefer a fully on‑premises enterprise stack, some competitors may offer deeper integration with specific controller platforms; however, Ruijie balances cloud and local control.
• Price point:With a suggested price of approximately $3,128 (suggested_price), the RG‑CS86 sits competitively against comparable multi‑Gig PoE++ switches from major vendors. Total cost will depend on support options, optics, and lifecycle management.

Customer feedback and review highlights

Publicly available, verifiable customer reviews for specific enterprise models can be limited. Based on common reseller and integrator feedback for switches with similar feature sets, the following representative impressions capture typical strengths and considerations:

• Representative feedback — strengths:"Easy cloud provisioning and reliable PoE performance; ideal for Wi‑Fi AP rollouts where power and multi‑Gig uplinks are essential."
• Representative feedback — deployment notes:"Good value compared with similarly spec'd models; remember to plan PoE budgets carefully for full‑power APs and cameras."
• Representative feedback — IT operations:"Virtual stacking and cloud visibility reduce on‑site visits and speed up firmware and policy rollouts across sites."

If you need actual customer testimonials tied to purchase records, I can help gather or format verified reviews from resellers or case studies where available.

Conclusion: Why choose the RG-CS86-24MG4VS-UP?

The Ruijie RG-CS86-24MG4VS-UP is a compelling choice for organizations that need a flexible, high‑power access switch capable of supporting modern multi‑Gig endpoints and demanding PoE devices. Its strengths are clear: multi‑rate access ports to avoid costly rewiring, PoE++ to support high‑power devices directly from the switch, and 10G/25G uplink flexibility to scale aggregation bandwidth. Cloud management, zero‑touch provisioning and virtual stacking simplify operations and are especially valuable for distributed or multi‑site environments.

For campus networks, Wi‑Fi AP backhaul, PoE camera farms, and medium enterprise aggregation, the RG‑CS86-24MG4VS-UP balances performance, power and manageability at a competitive price point. As with any network purchase, validate PoE budgets, uplink transceiver choices, and support/warranty terms before procurement. If you’d like, I can convert the full datasheet into a detailed spec table, produce short marketing copy, or create a side‑by‑side comparison with specific competitor models tailored to your deployment requirements.
