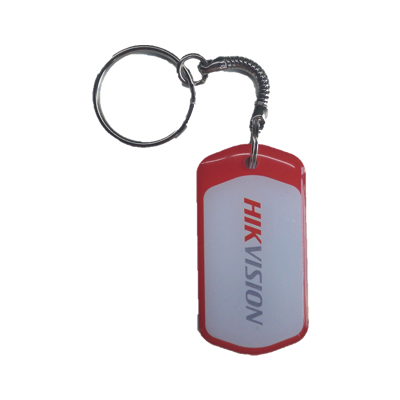

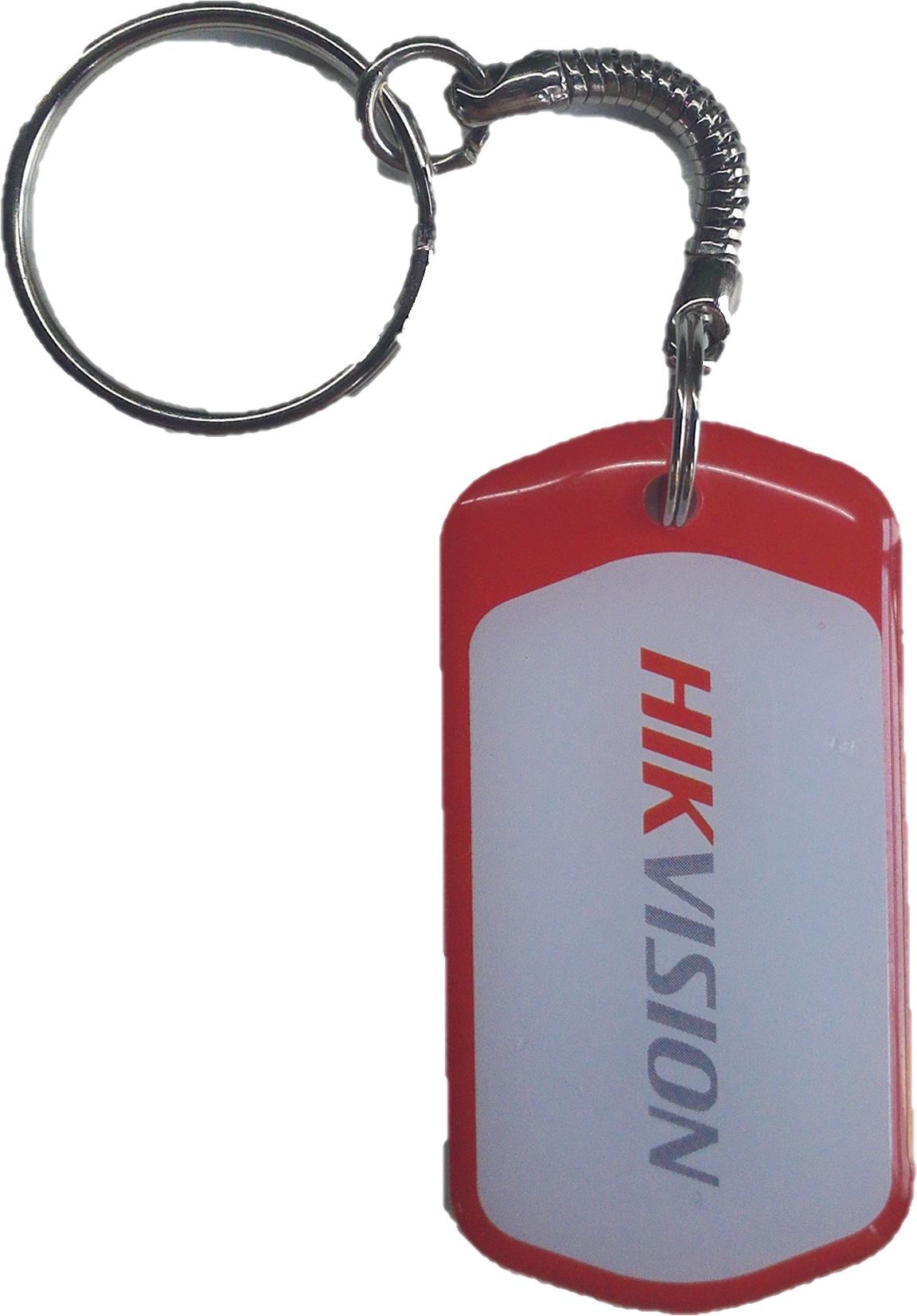

Hikvision DS-K7M102-M Mifare IC Card
Introducing the Hikvision DS-K7M102-M Mifare Card, your ideal solution for security identity recognition. This compact IC card features:
- Material: PVC and AB glue
- Communication Standard: ISO14443 Type A
- Data Transfer Rate: 106 Kbps
- Applicability: Suitable for enterprises, shops, and security locations
Perfect for keychain convenience, the card is designed for reliable identification.
-
Download
- DS-K7M102-M
Specifications
Card-material
Temperature-range
Specifications
ITM No. | ITM000486 |
---|---|
Manufacturer | Hikvision |
Communication Protocol | ISO14443A |
Data Transfer Rate | 106 Kbps |
Storage Structure | 16 sectors (4 blocks per sector) |
Reading Distance | 0 cm to 4 cm |
Write Endurance | 10,000 times |
Data Retention | 10 years |
Dimensions | 26 mm × 50 mm × 4 mm |
Card-material
Material | PVC and AB glue |
---|
Temperature-range
Operating Temperature | -10°C to 50°C |
---|---|
Storage Temperature | -25°C to 65°C |
Hikvision DS-K7M102-M Mifare IC Card features

Hikvision DS-K7M102-M Mifare Card, PVC Material, ISO14443 Type A, 106 Kbps, ITM000486
